5325-00-989-6286

Nonmetallic Grommet

5325009896286 009896286 BACG20AF20H2 114074ADX MS35489-113 114074

An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING. View more Nonmetallic Grommet

5325-00-989-6286 GROMMET,NONMETALLIC 5325009896286 009896286

Managed by United States
NSN Created on 8 Nov 1966
Data Last Changed
November 2023
NATO Update Count
17
NATO Data Quality
5325-00-989-6286 GROMMET,NONMETALLIC 5325009896286 009896286 1/2

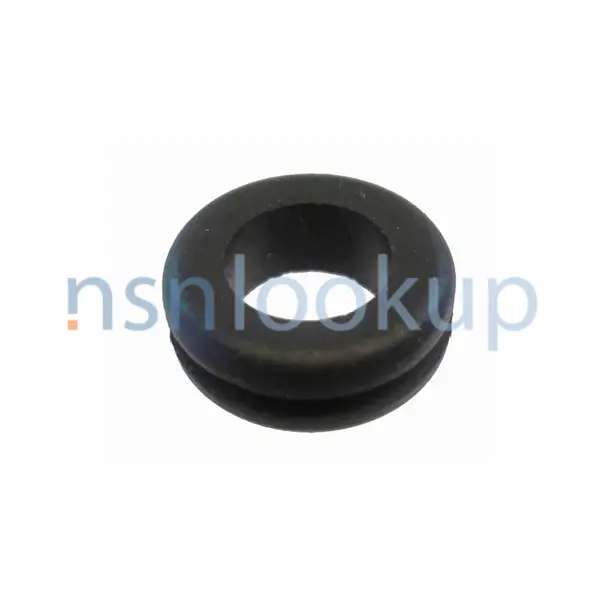

5325-00-989-6286 Photo 1/2
AGME Style 1 for 5325-00-989-6286 2/2
NSN 5325-00-989-6286 (Identification) 2/2

5325-00-989-6286 Stock and Availability Marketplace 5325-00-989-6286

Need Help?
Request a Quotation from participating marketplace vendors

5325-00-989-6286 Related Documents Related Documents 5325-00-989-6286 5+ Documents (More...)

BACG20AF20H2 114074ADX MS35489-113 114074 An item of any peripheral shape having flanges or groove(s
Photo 1/2 NSN 5325-00-989-6286 (Identification) 2/2 - - 1.
MS35489-113 GROMMET,NONMETALLIC RQST NS Request Quotation Subscribe to View Vendor Details...
$1 a day Upgrade your Account Upgrade 5998-00-992-9986Circuit Card Assembly5998009929986 009929986 114074
$1 a day Upgrade your Account Upgrade 6610-01-552 -6514Position Indicator6610015526514 015526514 114074
$1 114074 https//www.nsnlookup.com /fsg-66/fsc- https//www.nsnlookup.com /fsg-66/fsc-6610/us 6610-01
for $1 a day Upgrade your Account Upgrade 6610-01-552-6514Position Indicator6610015526514 015526514 114074
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 114074
www.nsnlookup.com /fsg-59/fsc-5998/us 5998-00-992-9986 Circuit Card Assembly 5998009929986 009929986 114074
Upgrade for $1 a day Upgrade your Account Upgrade 3120-01-248-7845Sleeve Bushing3120012487845 012487845 114074
https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120-01-248-7845 Sleeve Bushing 3120012487845012487845 114074
$1 114074 https//www.nsnlookup.com /fsg-66/fsc-6610 https//www.nsnlookup.com /fsg-31/fsc-3120/us 3120
enable JavaScript in your web browser . 6515-15-237-4376Manico Per Aspirato6515152374376 152374376 114074
for $1 a day Upgrade your Account Upgrade 6610-01-552-6514Position Indicator6610015526514 015526514 114074
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 114074

5325-00-989-6286 Demil Restrictions 5325-00-989-6286

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: U | EDC: | ADPEC:

5325-00-989-6286 is a Nonmetallic Grommet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

5325-00-989-6286 HTS and ScheduleB Import and Export 5325-00-989-6286

5325-00-989-6286 End Users End Users 5325-00-989-6286

US Army (A919)
Effective Date:
1 Jun 2005
Former MOE Rule:
A187
Supplementary Receivers:
AZCTCL
US Air Force (FXGI)
Effective Date:
1 Jun 2005
Former MOE Rule:
FXKZ
US Marine Corps (MC47)
Effective Date:
1 Jun 2005
Former MOE Rule:
MC10
US Navy (N9BZ)
Effective Date:
1 Jun 2005
Former MOE Rule:
N9ZD
Supplementary Collaborators:
KE
Poland (WP01)
Effective Date:
1 Nov 2006
Canada (ZC01)
Effective Date:
1 Apr 1991
Republic of Korea (ZH01)
Effective Date:
1 Oct 2009

5325-00-989-6286 Manufacturers Approved Sources 5325-00-989-6286

5325-00-989-6286 Technical Data Datasheet 5325-00-989-6286

Characteristic
Specifications
FIIG
A05400
Color [HUES]
Black Overall
Features Provided [CBBL]
Coolant Resistant And Oil Resistant
Flange Thickness [ABKU]
0.188 Inches Nominal
Groove Outside Diameter [AGMH]
2.484 Inches Minimum And 2.516 Inches Maximum
Groove Width [ABGF]
0.234 Inches Minimum And 0.266 Inches Maximum
Grommet Construction Type [AGMU]
Solid
Grommet Style [AGME]
Round
Hole Diameter [AAUB]
1.234 Inches Minimum And 1.266 Inches Maximum
Nonmetallic Hardness Rating [AASF]
45.0 Minimum Shore Durometer A And 55.0 Maximum Shore Durometer A
Material [MATT]
Rubber Synthetic Overall
Large Flange Outside Diameter [AGMF]
2.844 Inches Minimum And 2.906 Inches Maximum
Material Document And Classification [MDCL]
Astm D2000 Bg515a14b24c32e036f19z Mfr Ref Single Material Response Overall
Overall Height [ABKW]
0.609 Inches Minimum And 0.641 Inches Maximum
