5325-00-986-9970
Nonmetallic Grommet Blank
5325009869970 009869970 S11154-8CTS
A small cylindrical, circular-like, nonmetallic item whose outer curved surface has a circumferential groove(s) to enable it to be self-retained when inserted in a hole. View more Nonmetallic Grommet Blank
November 2023
20
Marketplace 5325-00-986-9970
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-986-9970 1+ Documents (More...)
NE Updated Every Day 5325-00-986-9970 RQST Updated Every Day 5325-00-986-9970 RQST NE Related Documents
5325-00-986-9970 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-986-9970
Restrictions 5325-00-986-9970
5325-00-986-9970 is a Nonmetallic Grommet Blank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-986-9970
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BDCT
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Mar 1998
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5325-00-986-9970
- Part Number
- Manufacturer
- Status
- S11154-8CTS
- Manufacturer
- 09257 - Trelleborg Sealing Solutions Us, (Active)
- Primary Buy
- Primary Buy
- S11154-8CTS
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- S11154-8CTS
- 97820 - Shamban Polymer Tech Group (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete

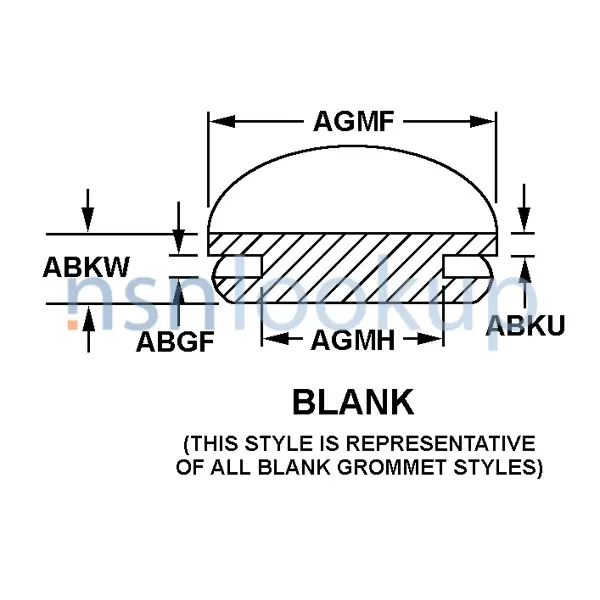

Datasheet 5325-00-986-9970
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Features Provided [CBBL]
- Coolant Resistant And Oil Resistant
- Flange Thickness [ABKU]
- 0.209 Inches Nominal
- Groove Outside Diameter [AGMH]
- 0.750 Inches Nominal
- Groove Width [ABGF]
- 0.155 Nominal Inches
- Grommet Style [AGME]
- Blank
- Material [MATT]
- Plastic Tetrafluoroethylene Overall
- Large Flange Outside Diameter [AGMF]
- 0.876 Inches Nominal
- Overall Height [ABKW]
- 0.304 Inches Nominal
Weapon Systems (WSDC) 5325-00-986-9970
DLA Procurement Analysis 5325-00-986-9970
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-986-9970
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-986-9970
Freight Information 5325-00-986-9970
5325-00-986-9970 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-00-986-9970 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-00-986-9970 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5325-00-986-9970 is not classified as a special type of cargo when transported by water. 5325-00-986-9970 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-986-9970
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5325-00-986-9970 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5E418P0072
- 05 Oct 2017
- Subscribe
- 12
- Subscribe
- Subscribe
- Subscribe
- SPE5E417VA626
- 20 Sep 2017
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
- SPE8EG17P0015
- 16 Mar 2017
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
- SPE5E416V4016
- 29 Feb 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE5E416V4014
- 29 Feb 2016
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE5E415V8028
- 26 Jun 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5325-00-986-9970 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
