5325-00-980-3936
Retaining Ring
5325009803936 009803936 MIL-R-27426 RS-900 18906 M27426-1239A
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
October 2025
14
Marketplace 5325-00-980-3936
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-980-3936 5+ Documents (More...)
/fsg-53/fsc-5325/us

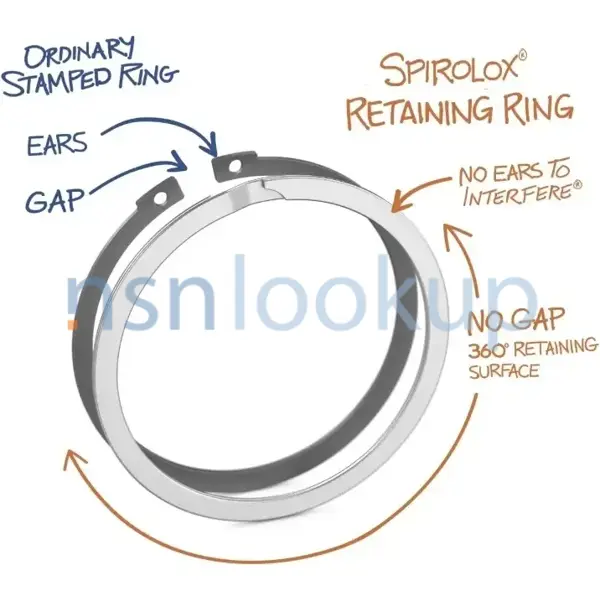

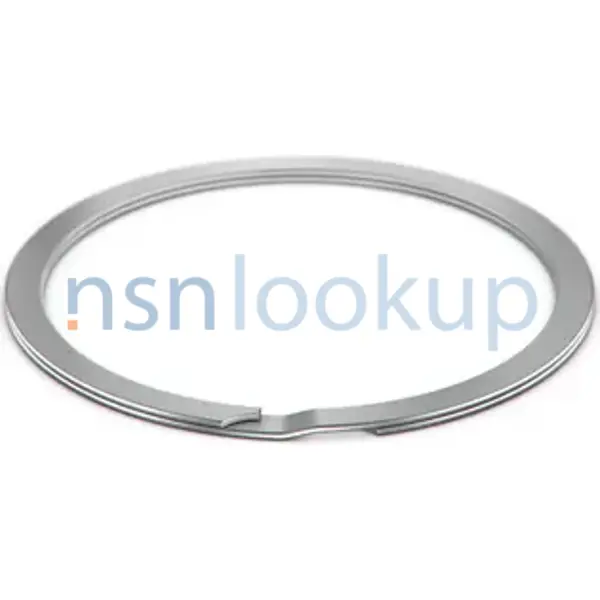

Photo 1/5 5325-00-980-3936 Photo 2/5 5325-00-980-3936 Photo 3/5 NSN 5325-00-980-3936 (Identification
MIL-R-27426 RING,RETAINING 88 EA NS Request Quotation Subscribe to View Vendor Details... 18906 RING,
/fsg-53/fsc-5325/us
MIL-R-27426 RING,RETAINING 4 EA NS Request Quotation Subscribe to View Vendor Details...
/fsg-53/fsc-5325/us 5325-00-980-3936 Retaining Ring 5325009803936 009803936 MIL-R-27426 RING,RETAINING
/fsg-53/fsc-5325/us
MIL-R-27426 RING,RETAINING 88 EA NS Request Quotation Subscribe to View Vendor Details...
Retaining Ring 5325009803936 009803936 MIL-R-27426 RING,RETAINING 4 EA NS Request Quotation Subscribe
/fsg-53/fsc-5325/us
MIL-R-27426 RING,RETAINING 4 EA NS Request Quotation Updated Every Day 5325-01-494-9584 RQST NE Updated
MIL-R-27426 RING,RETAINING 4 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5325-00-980-3936
5325-00-980-3936 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-980-3936
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-980-3936
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5325-00-980-3936
- Part Number
- Manufacturer
- Status
- M27426-1239A
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-R-27426
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- RS-900
- 80756 - Spirolox Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 18906
- 11384 - Kollmorgen Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5325-00-980-3936
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Double Oval
- Material Hardness Rating [ALME]
- 40.0 Rockwell C Minimum And 51.5 Rockwell C Maximum
- Material [MATT]
- Steel,Fed Std 66,Aisi C1070 Thru C1090 Or Sae 1070 Thru 1090
- Inside Diameter [AARX]
- 8.637 Inches Minimum And 8.707 Inches Maximum
- Major Thickness [ABMC]
- 0.082 Inches Minimum And 0.090 Inches Maximum
- Ring Style [ACXD]
- Spiral
- Outside Diameter [ABKV]
- 9.379 Inches Minimum And 9.461 Inches Maximum
- Usage Design [ALBY]
- External
- Strength Rating [AWQD]
- 211000.0 Pounds Per Square Inch Minimum Tensile
Similar Supply Items to 5325-00-980-3936
Freight Information 5325-00-980-3936
5325-00-980-3936 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5325-00-980-3936 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-00-980-3936 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-980-3936 is not classified as a special type of cargo when transported by water. 5325-00-980-3936 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
