5325-00-966-9846

Push Button Fastener Socket

5325009669846 009669846 25873-1

A metal device designed to function as a female receptacle for a STUD, PUSH BUTTON FASTENER. May include a clinch plate. View more Push Button Fastener Socket

5325-00-966-9846 SOCKET,PUSH BUTTON FASTENER 5325009669846 009669846

Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
May 2023
NATO Update Count
4
NATO Data Quality
AGQG Style 5 for 5325-00-966-9846 1/1
NSN 5325-00-966-9846 (Identification) 1/1

5325-00-966-9846 Stock and Availability Marketplace 5325-00-966-9846

Need Help?
Request a Quotation from participating marketplace vendors
FedMallFedMall.mil Updated Every 15 Minutes
5325-00-966-9846 BUY NE FedMallFedMall.mil
eBay Updated Every Day
5325-00-966-9846 RQST NE eBay
eBay Updated Every Day
5325-00-966-9846 RQST eBay
Amazon Updated Every Day
5325-00-966-9846 RQST NE Amazon

5325-00-966-9846 Related Documents Related Documents 5325-00-966-9846 3+ Documents (More...)

BUY NE FedMall Updated Every Day 5325-00-966-9846 RQST NE Updated Every Day 5325-00-966-9846 RQST
Updated Every Day 5325-00-966-9846 RQST NE Related Documents 5325-00-966-9846 5+ Documents ( More...
) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-966-9846 Push Button Fastener Socket 5325009669846
a day Upgrade your Account Upgrade 5310-01-156 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-966-9846
Push Button Fastener Socket 5325009669846 5325-00-966-9846 5325009669846 009669846 is a metal device
AND 15R10-1AC D0680 - Fairchild Fasteners Europe https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-966-9846
Push Button Fastener Socket 5325009669846 www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-256-5626
Button Fastener Socket 5325012565626 5325-01-158-6752 www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-966-9846

5325-00-966-9846 Demil Restrictions 5325-00-966-9846

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC: 0

5325-00-966-9846 is a Push Button Fastener Socket that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

5325-00-966-9846 End Users End Users 5325-00-966-9846

US Navy (N9BZ)
Effective Date:
1 Mar 2006
Supplementary Collaborators:
KE
United States of America (ZZ)

5325-00-966-9846 Manufacturers Approved Sources 5325-00-966-9846

5325-00-966-9846 Technical Data Datasheet 5325-00-966-9846

Characteristic
Specifications
FIIG
A05400
Material [MATT]
Steel Comp 304 Barrel
Material Document And Classification [MDCL]
Mil-T-8506 Mil Spec Single Material Response Barrel
Surface Treatment [SFTT]
Passivate Barrel
Surface Treatment Document And Classification [STDC]
Mil-S-5002 Mil Spec Single Treatment Response Barrel

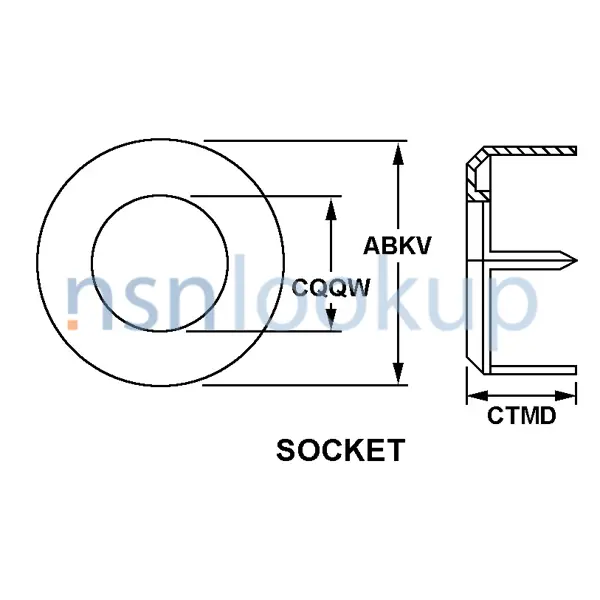

Push Button Socket Style [AGQG]
Socket
Outside Diameter [ABKV]
0.750 Inches Nominal
Socket Inside Diameter [CQQW]
0.625 Inches Nominal
Push Button Socket Overall Length [CTMD]
0.965 Inches Nominal
Special Features [FEAT]
Chamfer Top End 0.031 By 0.031 In. Deep

5325-00-966-9846 Stock, Inventory and Procurement DLA Procurement Analysis 5325-00-966-9846

DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

5325-00-966-9846 Management Data Management Data 5325-00-966-9846

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Mar 2023
Defense Logistics Agency (DS)
EA
Subscribe
Oct 2022
Department of the Navy (DN)
EA
Subscribe
Oct 2021
Department of the Navy (DN)
EA
Subscribe
Oct 2020
Department of the Navy (DN)
EA
Subscribe
Oct 2019
Department of the Navy (DN)
EA
Subscribe
MOE
USC
Code
Statement
Order of Use
Jump To Code
Qty Per Assy
UOM
Technical Document
Quantative Expression
Defense Logistics Agency (DS)
I
X
Formerly 5340

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

5325-00-966-9846 Related Items NATO Stock Numbers Related to 5325-00-966-9846

5325-00-966-9846 Freight Data Freight Information 5325-00-966-9846

5325-00-966-9846 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 5325-00-966-9846 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5325-00-966-9846 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-966-9846 is not classified as a special type of cargo when transported by water. 5325-00-966-9846 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

5325-00-966-9846 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 5325-00-966-9846 August 2020

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
