5325-00-928-9301
Turnlock Fastener Stud Assembly
5325009289301 009289301 48750-5H GS522A-5H
A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER. View more Turnlock Fastener Stud Assembly
January 2023
5
Marketplace 5325-00-928-9301
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-928-9301 1+ Documents (More...)
RQST NE Updated Every Day 5325-00-928-9301 RQST Updated Every Day 5325-00-928-9301 RQST NE Related Documents
5325-00-928-9301 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-928-9301
Restrictions 5325-00-928-9301
5325-00-928-9301 is a Turnlock Fastener Stud Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-928-9301
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-928-9301
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- France (ZF01)
- Effective Date:
- 1 Apr 2000
Approved Sources 5325-00-928-9301
- Part Number
- Manufacturer
- Status
- GS522A-5H
- Manufacturer
- 26512 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 48750-5H
- 79136 - Truarc Company Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 48750-5H
- 07382 - Rotor Clip Company, Inc. (Active)
- Advisory Reference
- Advisory Reference

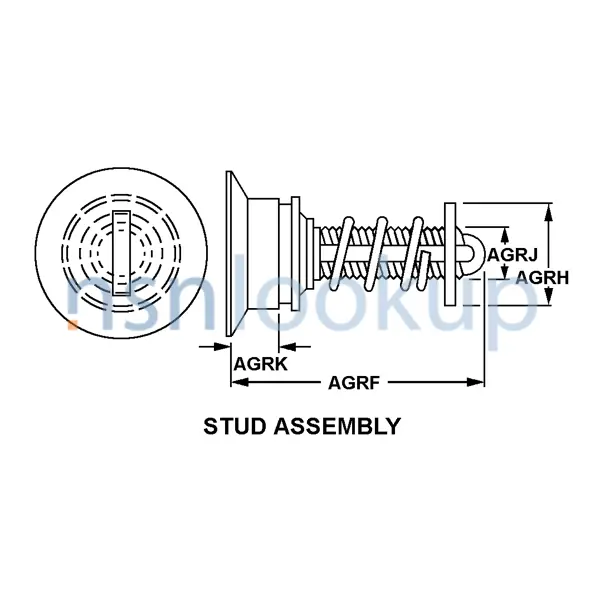

Datasheet 5325-00-928-9301
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Distance From Engaging Member To Largest Bearing Surface Of Head [AGRF]
- 0.862 Inches Minimum And 1.262 Inches Maximum
- Diameter [ABMZ]
- 0.490 Inches Minimum And 0.500 Inches Maximum
- Eyelet Length [AGRK]
- 0.267 Inches Minimum And 0.275 Inches Maximum
- Eyelet Outside Diameter [AGRH]
- 0.3730 Inches Minimum And 0.3745 Inches Maximum
- Material [MATT]
- Steel Overall
- Turnlock Stud Head Style [AGRD]
- Flat Fillister
- Stud Assembly Style [AGRE]
- Stud Assembly
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
NATO Stock Numbers Related to 5325-00-928-9301
Freight Information 5325-00-928-9301
5325-00-928-9301 has freight characteristics.. 5325-00-928-9301 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
