5325-00-900-4441
Retaining Ring
5325009004441 009004441 MIL-DTL-27426 10015592-036 RS-146 WS-146 M2742610135A
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
Managed by United States
NSN Created on 1 Jan 1960
Data Last Changed
October 2025
October 2025
NATO Update Count
25
25
NATO Data Quality
Marketplace 5325-00-900-4441
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-900-4441 5+ Documents (More...)
https//www.nsnlookup.com
/fsg-53/fsc-5325/us
/fsg-53/fsc-5325/us
5325-00-900-4441 Retaining Ring 5325009004441 009004441
MIL-DTL-27426 10015592-036 RS-146 WS-146 M2742610135A A resilient metal item, circular or nearly circular

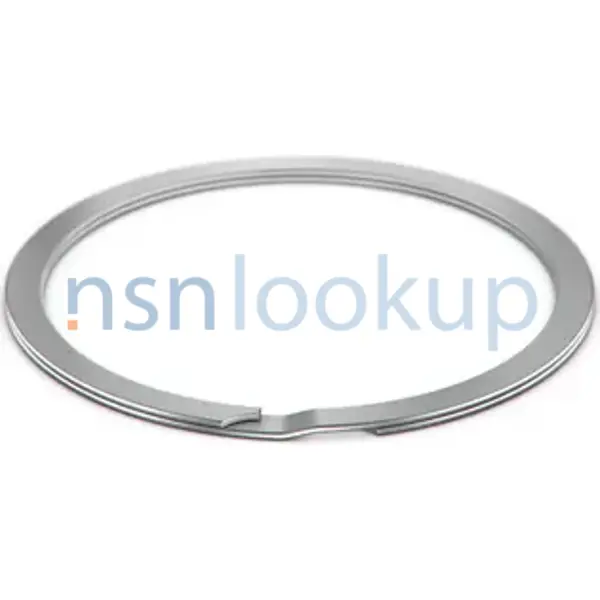

Photo 1/3 NSN 5325-00-900-4441 (Identification) 2/3 NSN 5325-00-900-4441 (Identification) 3/3 -
Updated Every Day 5325-00-900-4441 RQST NE Updated Every Day 5325-00-900-4441 RQST Updated Every Day
Photo 1/3 NSN 5325-00-900-4441 (Identification) 2/3 NSN 5325-00-900-4441 (Identification) 3/3 -
Updated Every Day 5325-00-900-4441 RQST NE Updated Every Day 5325-00-900-4441 RQST Updated Every Day
https//www.nsnlookup.com
/fsg-53/fsc-5325/us
/fsg-53/fsc-5325/us
5325-01-291-8176 Retaining Ring 5325012918176 012918176
for $1 a day Upgrade your Account Upgrade 5325-01-291-8176Retaining Ring5325012918176 012918176 MIL-DTL-27426
/4 M2742640105A MIL-DTL-27426 A resilient metal item, circular or nearly circular, which is designed
MIL-DTL-27426 RING,RETAINING 30 EA NS Request Quotation Subscribe to View Vendor Details...
/4 M2742640105A MIL-DTL-27426 A resilient metal item, circular or nearly circular, which is designed
MIL-DTL-27426 RING,RETAINING 30 EA NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com
/fsg-53/fsc-5325/us
/fsg-53/fsc-5325/us
5325-01-224-6935 Retaining Ring 5325012246935 012246935
for $1 a day Upgrade your Account Upgrade 5325-01-224-6935Retaining Ring5325012246935 012246935 MIL-DTL-27426
/4 M2742640125B MIL-DTL-27426 A resilient metal item, circular or nearly circular, which is designed
MIL-DTL-27426 RING,RETAINING 30 EA NS Request Quotation Subscribe to View Vendor Details...
/4 M2742640125B MIL-DTL-27426 A resilient metal item, circular or nearly circular, which is designed
MIL-DTL-27426 RING,RETAINING 30 EA NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com
/fsg-53/fsc-5325/us
/fsg-53/fsc-5325/us
5325-01-681-3241 Retaining Ring 5325016813241 016813241
for $1 a day Upgrade your Account Upgrade 5325-01-681-3241Retaining Ring5325016813241 016813241 MIL-DTL-27426
/4 M2742640139D MIL-DTL-27426 A resilient metal item, circular or nearly circular, which is designed
//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-681-3241 Retaining Ring 5325016813241016813241 MIL-DTL-27426
/4 M2742640139D MIL-DTL-27426 A resilient metal item, circular or nearly circular, which is designed
//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-681-3241 Retaining Ring 5325016813241016813241 MIL-DTL-27426
https//www.nsnlookup.com
/fsg-53/fsc-5325/us
/fsg-53/fsc-5325/us
5325-01-622-9367 Retaining Ring 5325016229367 016229367
for $1 a day Upgrade your Account Upgrade 5325-01-622-9367Retaining Ring5325016229367 016229367 MIL-DTL-27426
/4 M2742640118D MIL-DTL-27426 A resilient metal item, circular or nearly circular, which is designed
//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-622-9367 Retaining Ring 5325016229367016229367 MIL-DTL-27426
/4 M2742640118D MIL-DTL-27426 A resilient metal item, circular or nearly circular, which is designed
//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-622-9367 Retaining Ring 5325016229367016229367 MIL-DTL-27426
Restrictions 5325-00-900-4441
5325-00-900-4441 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-900-4441
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-900-4441
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5325-00-900-4441
- Part Number
- Manufacturer
- Status
- M2742610135A
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-27426
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 10015592-036
- 19207 - U S Army Tank Automotive Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- RS-146
- 80756 - Spirolox Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- WS-146
- 51814 - Smalley Steel Ring Co. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5325-00-900-4441
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Material [MATL]
- Steel, Fed Std 66, Comp 1070 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1072 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1074 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1075 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1078 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1080 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1084 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1085 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1086 Or
- Material [MATL]
- Steel, Fed Std 66, Comp 1090
- Strength Rating [AWQD]
- 211000.0 Pounds Per Square Inch Minimum Tensile
- Material Hardness Rating [ALME]
- 40.0 Rockwell C Minimum And
- Material Hardness Rating [ALME]
- 51.5 Rockwell C Maximum
- Casehardening Indicator [AASG]
- Not Casehardened
- Ring Style [ACXD]
- Spiral
- Inside Diameter [AARX]
- 1.387 Inches Minimum And
- Inside Diameter [AARX]
- 1.402 Inches Maximum
- Outside Diameter [ABKV]
- 1.577 Inches Minimum And
- Outside Diameter [ABKV]
- 1.592 Inches Maximum
- Cross-Sectional Shape Style [AAGR]
- Double Oval
- Major Thickness [ABMC]
- 0.041 Inches Minimum And
- Major Thickness [ABMC]
- 0.045 Inches Maximum
- Usage Design [ALBY]
- External
- Definitive Government Spec/Std Reference Or Manufacturers Code [SR-1]
- Definitive Government Spec/Std Reference Or Manufacturers Code [SR-1]
- 81349
- Definitive Government Spec/Std Reference Or Manufacturers Code [SR-1]
- Mil-Dtl-27426
- Definitive Government Spec/Std Reference Or Manufacturers Code [SR-1]
- 81349
- Definitive Government Spec/Std Reference Or Manufacturers Code [SR-1]
- M2742610135a
Weapon Systems (WSDC) 5325-00-900-4441
DLA Procurement Analysis 5325-00-900-4441
- Last Stock Position:
- 133 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-900-4441
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5325-00-900-4441
Freight Information 5325-00-900-4441
5325-00-900-4441 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5325-00-900-4441 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-00-900-4441 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-900-4441 is not classified as a special type of cargo when transported by water. 5325-00-900-4441 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-900-4441
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5325-00-900-4441 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
