5325-00-840-3894
Screw Thread Insert
5325008403894 008403894 1236-1-6
A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE View more Screw Thread Insert
November 2023
19
Marketplace 5325-00-840-3894
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-840-3894 1+ Documents (More...)
United States (US) 4. 5325-00-840-3894 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5325-00-840-3894 RQST Updated Every Day 5325-00-840-3894 RQST NE Related
Restrictions 5325-00-840-3894
5325-00-840-3894 is a Screw Thread Insert that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-840-3894
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-840-3894
- US Army (A919)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 May 1996
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 1993
- Netherlands (ZN01)
- Effective Date:
- 1 Feb 1995
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5325-00-840-3894
- Part Number
- Manufacturer
- Status
- 1236-1-6
- Manufacturer
- 01556 - Emhart Teknologies Llc (Active)
- Original Design
- Original Design
- 1236-1-6
- 99057 - Kelox Industries (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-00-840-3894
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.190 Inches
- Insert Size [BZGJ]
- 0.375-16 Nc 3A
- Internal Thread Relief Depth [BZYF]
- 0.078 Inches Nominal
- Length [ABRY]
- 0.375 Inches Nominal
- Top Portion Unthreaded Outside Length [BZYD]
- 0.045 Inches Nominal
- Top Unthreaded Portion Outside Diameter [BZYC]
- 0.138 Inches Nominal
- Width Across Flats [ASDB]
- 0.375 Inches Nominal

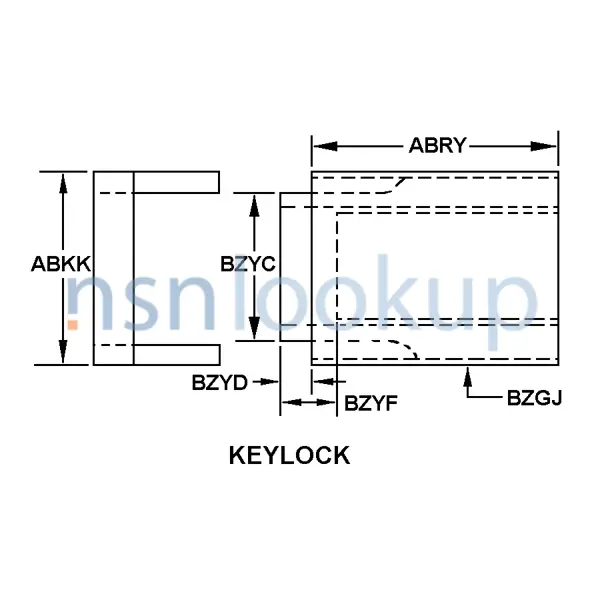

- Style Designator [STYL]
- Keylock
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 3B
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 32
