5325-00-814-0528
Retaining Ring
5325008140528 008140528 866168-1
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
May 2023
12
Marketplace 5325-00-814-0528
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-814-0528 2+ Documents (More...)
/fsg-53/fsc-5325/us
(Identification) 1/3 NSN 5325-00-814-0528 (Identification) 2/3 NSN 5325-00-814-0528 (Identification
3 EA NS Request Quotation Updated Every Day 5325-00-814-0528 RQST NE Updated Every Day 5325-00-814-0528
/fsg-25/fsc-2540/tr
Retaining Ring 5325008140528 008140528 Upgrade for $1 a day Upgrade your Account Upgrade 5325-00
-814-0528Retaining Ring5325008140528 008140528 866168 Request a Quotation from participating marketplace
Restrictions 5325-00-814-0528
5325-00-814-0528 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-814-0528
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-814-0528
- National Security Agency (DGX1)
- Effective Date:
- 1 Jan 2014
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2014
- Supplementary Collaborators:
- HDKEHX
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-814-0528
- Part Number
- Manufacturer
- Status
- 866168-1
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-00-814-0528
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]

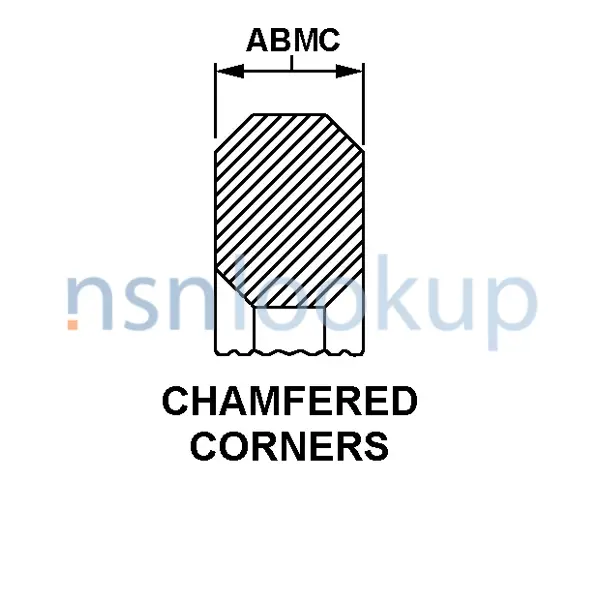

- Chamfered Corners
- End Style [ABQK]
- 90 Degree Parallel
- Material Document And Classification [MDCL]
- Mil-S-7947, Comp 1095, Cond A Mil Spec Single Material Response
- Material Hardness Rating [ALME]
- 40.0 Rockwell C Minimum And 45.0 Rockwell C Maximum
- Material [MATT]
- Steel Comp 1095
- Outside Diameter [ABKV]
- 3.200 Inches Minimum And 3.260 Inches Maximum
- Inside Diameter [AARX]
- 2.940 Inches Nominal
- Major Thickness [ABMC]
- 0.040 Inches Minimum And 0.044 Inches Maximum
- Ring Style [ACXD]
- Internal
- Usage Design [ALBY]
- Internal
