5325-00-808-0644

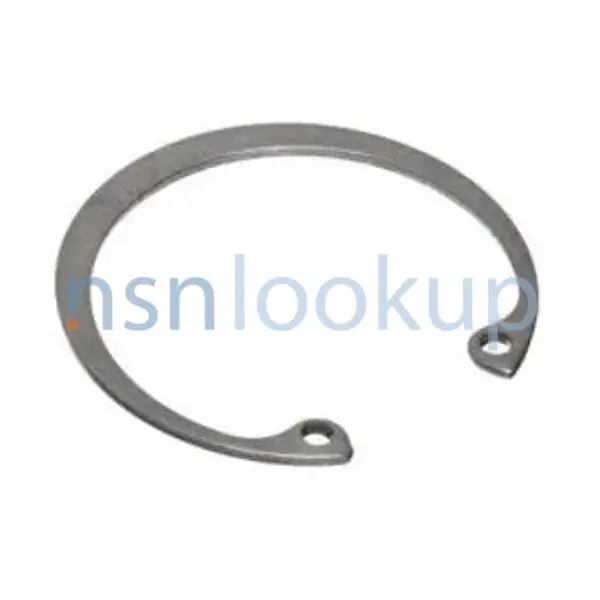

Retaining Ring
5325008080644 008080644 MIL-DTL-21248 6823302-90 776921 5000-90W MS16625-4090 N5000-90H N5000-X90-H 3000-X90-SS2 N1300-90AS R271NAB0090NN119NNQA1 ASME B18.24.1
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
52
52
NATO Data Quality
Marketplace 5325-00-808-0644
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
6823302-90 RQST NE
Updated Every Day 5325-00-808-0644 RQST NE
Updated Every Day 5325-00-808-0644 RQST
Updated Every Day 5325-00-808-0644 RQST NE
Related Documents 5325-00-808-0644 5+ Documents (More...)
https//www.nsnlookup.com
/fsg-53/fsc-5325/us
/fsg-53/fsc-5325/us
5325-00-808-0644 Retaining Ring 5325008080644 008080644
MIL-DTL-21248 6823302-90 776921 5000-90W MS16625-4090 N5000-90H N5000-X90-H 3000-X90-SS2 N1300-90AS
R271NAB0090NN119NNQA1 ASME B18.24.1 A resilient metal item, circular or nearly circular, which is designed
MS16625-4090 RING,RETAINING 20 EA NS Request Quotation Subscribe to View Vendor Details... 6823302-90
R271NAB0090NN119NNQA1 ASME B18.24.1 A resilient metal item, circular or nearly circular, which is designed
MS16625-4090 RING,RETAINING 20 EA NS Request Quotation Subscribe to View Vendor Details... 6823302-90
https//www.nsnlookup.com
/fsg-53/fsc-5365/us
/fsg-53/fsc-5365/us
5365-00-775-3590 Retaining Ring 5365007753590 007753590
MS16625-4090 RING,RETAINING 99 EA NS Request Quotation Subscribe to View Vendor Details...
MS16625-4090 RING,RETAINING 1 EA NS Request Quotation Subscribe to View Vendor Details...
N5000-90H RING,RETAINING 580 EA NS Request Quotation Updated Every Day 5365-00-775-3590 RQST Updated
MS16625-4090 RING,RETAINING 1 EA NS Request Quotation Subscribe to View Vendor Details...
N5000-90H RING,RETAINING 580 EA NS Request Quotation Updated Every Day 5365-00-775-3590 RQST Updated
MIL-DTL-21248 81349 - Military Specifications (Active) Incomplete Standard RNCC 4 RNVC 1 DAC E ASME
81349 - Military Specifications (Active) Incomplete Standard RNCC 4 RNVC 1 DAC E ASME B18.24.1
ASME B18.24.1 SCREW, CAP, HEX 2 PG NS Request Quotation ASME B18.24.1 SCREW 38 PG NS Request Quotation
81349 - Military Specifications (Active) Incomplete Standard RNCC 4 RNVC 1 DAC E ASME B18.24.1
ASME B18.24.1 SCREW, CAP, HEX 2 PG NS Request Quotation ASME B18.24.1 SCREW 38 PG NS Request Quotation
https//www.nsnlookup.com
/fsg-53/fsc-5365/us
/fsg-53/fsc-5365/us
5365-00-880-3466 Retaining Ring 5365008803466 008803466
MS16625-4090 RING,RETAINING 99 EA NS Request Quotation Subscribe to View Vendor Details...
MS16625-4090 RING,RETAINING 1 EA NS Request Quotation Subscribe to View Vendor Details...
N5000-90H RING,RETAINING 580 EA NS Request Quotation Updated Every Day 5365-00-880-3466 RQST Updated
MS16625-4090 RING,RETAINING 1 EA NS Request Quotation Subscribe to View Vendor Details...
N5000-90H RING,RETAINING 580 EA NS Request Quotation Updated Every Day 5365-00-880-3466 RQST Updated
your Account Upgrade 5305-01-463-1019Machine Screw5305014631019 014631019 S630NA84CAG14354BNCF ASME B18.24.1
MIL-DTL-21248 81349 - Military Specifications (Active) Incomplete Standard RNCC 4 RNVC 1 DAC E ASME
B18.24.1 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-808-0644 Retaining Ring 5325008080644 008080644
MIL-DTL-21248 81349 - Military Specifications (Active) Incomplete Standard RNCC 4 RNVC 1 DAC E ASME
B18.24.1 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-808-0644 Retaining Ring 5325008080644 008080644
Restrictions 5325-00-808-0644
5325-00-808-0644 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-00-808-0644
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-808-0644
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- United Kingdom (ZK01)
- Effective Date:
- 1 Dec 2009
- Denmark (ZS01)
- Effective Date:
- 1 Jan 2004
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-808-0644
- Part Number
- Manufacturer
- Status
- MS16625-4090
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-21248
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 6823302-90
- 73342 - Allison Transmission Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 6823302-90
- 24617 - General Motors Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 776921
- 77445 - Rtx Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- N5000-90H
- 89136 - Ferguson Sherman Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- N5000-X90-H
- 79136 - Truarc Company Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3000-X90-SS2
- 97464 - Truarc Co Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- N1300-90AS
- 54963 - Seeger Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- R271NAB0090NN119NNQA1
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- ASME B18.24.1
- 05047 - The American Society Of Mechanical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- N5000-90H
- 79136 - Truarc Company Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5000-90W
- 05457 - British Aerospace North America Inc (Active)
- Advisory Reference
- Advisory Reference
- N5000-90H
- 07382 - Rotor Clip Company, Inc. (Active)
- Advisory Reference
- Advisory Reference
- N5000-X90-H
- 07382 - Rotor Clip Company, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5325-00-808-0644
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Material Hardness Rating [ALME]
- 63.0 Rockwell Superficial 30-N Minimum And 69.5 Rockwell Superficial 30-N Maximum
- Material [MATT]
- Steel Comp 632
- Outside Diameter [ABKV]
- 0.990 Inches Minimum And 1.015 Inches Maximum
- Major Thickness [ABMC]
- 0.040 Inches Minimum And 0.044 Inches Maximum
- Material Document And Classification [MDCL]
- Ams 5520 Assn Std Single Material Response
- Ring Style [ACXD]
- Internal
- Usage Design [ALBY]
- Internal
- Surface Treatment [SFTT]
- Passivate
