5325-00-805-2938
Positive Lock Stud
5325008052938 008052938 295384-1
A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening. View more Positive Lock Stud
January 2023
5
Marketplace 5325-00-805-2938
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-805-2938 2+ Documents (More...)
RQST NE Updated Every Day 5325-00-805-2938 RQST Updated Every Day 5325-00-805-2938 RQST NE Related Documents
5325-00-805-2938 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-805-2938
Positive Lock Stud 5325008052938 008052938 for $1 a day Upgrade your Account Upgrade 5325-00-805
-2938Positive Lock Stud5325008052938 008052938 295384 /www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-
Restrictions 5325-00-805-2938
5325-00-805-2938 is a Positive Lock Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-805-2938
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-805-2938
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-805-2938
- Part Number
- Manufacturer
- Status
- 295384-1
- Manufacturer
- 60119 - Monadnock Company, The (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-00-805-2938
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- End Overall Length [AGQM]
- 2.135 Inches Nominal
- Head Diameter [AASL]
- 0.545 Inches Nominal
- Material [MATT]
- Steel Overall
- Major Diameter Length [AGQK]
- 0.137 Inches Nominal

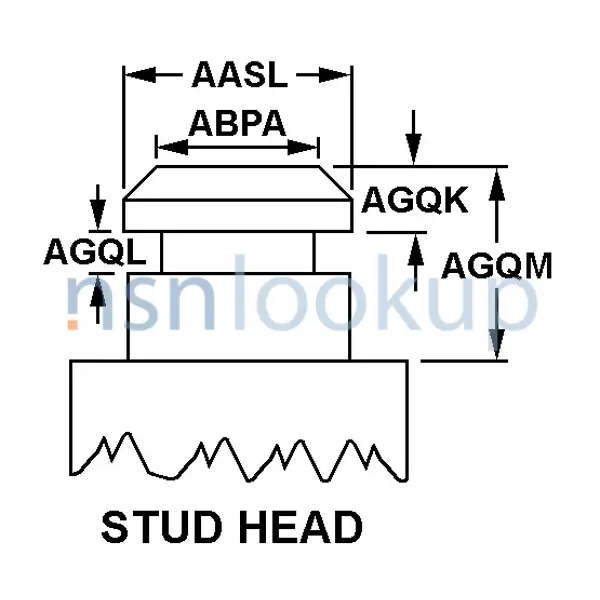

- Positive Lock Stud Head Style [AGQJ]
- Stud Head

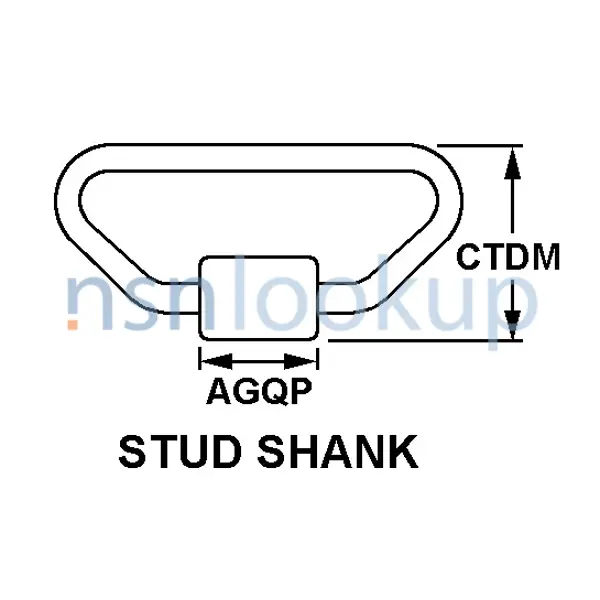

- Positive Lock Stud Shank Style [AGQN]
- Stud Shank
- Shank Major Diameter [AGQP]
- 1.000 Inches Nominal
- Undercut Diameter [ABPA]
- 0.396 Inches Nominal
- Undercut Length [AGQL]
- 0.080 Inches Nominal
- Surface Treatment [SFTT]
- Cadmium Overall
NATO Stock Numbers Related to 5325-00-805-2938
Freight Information 5325-00-805-2938
5325-00-805-2938 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-805-2938 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5325-00-805-2938 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-805-2938 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-805-2938 is not classified as a special type of cargo when transported by water. 5325-00-805-2938 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
