5325-00-804-2778

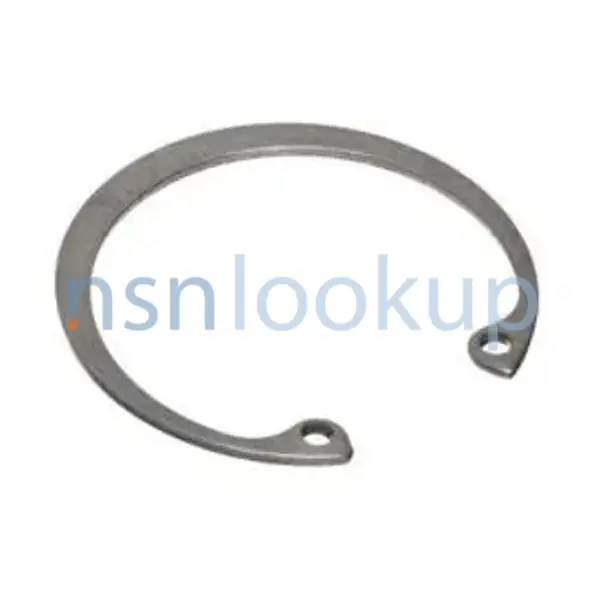

Retaining Ring

5325008042778 008042778 MIL-DTL-21248 NAS50-268 X1-4103-1494456REVAPC12 5000-268 N5000-268 101735 F104569 ITEM-X MS16625-1268 MILP21248 N1300-268 MS16625-268 RRN268 1-N1268 X268 N5000-268MF 3000-X268-ST-CD N1300-268CD 1862810 22321R1 2730-50 XT35148ALTAPC12

A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
66

NATO Data Quality

5325-00-804-2778 RING,RETAINING 5325008042778 008042778 1/3 — 5325-00-804-2778 Photo 1/3

AAGR Style D4 for 5325-00-804-2778 2/3 — NSN 5325-00-804-2778 (Identification) 2/3

ACXD Style A37 for 5325-00-804-2778 3/3 — NSN 5325-00-804-2778 (Identification) 3/3

Marketplace 5325-00-804-2778

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5000268- RING,RETAINING 1 EA NS

Subscribe to View Vendor Details...

273050 RING,RETAINING 1 EA NS

Subscribe to View Vendor Details...

NAS50-268 RING,RETAINING 701 EA NS

Subscribe to View Vendor Details...

MS16625-1268 RING,RETAINING 4 EA NS

Subscribe to View Vendor Details...

273-050 RING,RETAINING 25 EA NS

Subscribe to View Vendor Details...

273050 RING,RETAINING 121 EA NS

Subscribe to View Vendor Details...

NAS50-268 RING,RETAINING 2 EA NS

Subscribe to View Vendor Details...

MS16625-1268 RING,RETAINING 53 EA NS

Subscribe to View Vendor Details...

N5000-268 RING,RETAINING 72 EA NS

Updated Every Day

5325-00-804-2778 RQST NE

Updated Every Day

5325-00-804-2778 RQST

Updated Every Day

5325-00-804-2778 RQST NE

Restrictions 5325-00-804-2778

5325-00-804-2778 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5325-00-804-2778

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5325-00-804-2778

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AZBD; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Oct 2006

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Aug 2016

Australia (ZA01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Nov 2004

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Mar 1997

Italy (ZR01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1996

Approved Sources 5325-00-804-2778

Part Number
Manufacturer
Status
MS16625-1268: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-DTL-21248: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
NAS50-268: 80205 - National Aerospace Standards (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
22321R1: 66195 - Solar Turbines Incorporated (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
X1-4103-1494456REVAPC12: 80064 - Naval Ship Systems Command (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
N5000-268MF: 79136 - Truarc Company Llc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
3000-X268-ST-CD: 97464 - Truarc Co Llc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
N1300-268CD: 54963 - Seeger Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
1862810: 45152 - Oshkosh Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
22321R1: 79136 - Truarc Company Llc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
2730-50: 01359 - Triumph Thermal Systems - Maryland, (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
XT35148ALTAPC12: 01359 - Triumph Thermal Systems - Maryland, (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
5000-268: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
N5000-268: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
N5000-268MF: 07382 - Rotor Clip Company, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
1862810: 75Q65 - Oshkosh Defense Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 1
22321R1: 07382 - Rotor Clip Company, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
101735: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
F104569 ITEM-X: 63504 - Palfinger Marine Usa, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
MILP21248: 81349 - Military Specifications (Active); Transferred; RNCC E RNVC 8 DAC 4
N1300-268: 79136 - Truarc Company Llc (Replaced); Transferred; RNCC E RNVC 8 DAC 5
MS16625-268: 96906 - Military Standards (Active); Transferred; RNCC E RNVC 8 DAC E
RRN268: 54362 - Spir-O-Lok Inc (Obsolete); Transferred; RNCC E RNVC 8 DAC 5
1-N1268: 72800 - Eaton Corp Engineered Fasteners Div (Obsolete); Transferred; RNCC E RNVC 8 DAC 5
N5000-268: 79136 - Truarc Company Llc (Replaced); Transferred; RNCC E RNVC 8 DAC 2
X268: 79136 - Truarc Company Llc (Replaced); Transferred; RNCC E RNVC 8 DAC 5

Datasheet 5325-00-804-2778

Characteristic
Specifications
FIIG: T252-G
Casehardening Indicator [AASG]: Not Casehardened
Cross-Sectional Shape Style [AAGR]: Rectangular
Material Hardness Rating [ALME]: 47.0 Rockwell C Minimum And 52.0 Rockwell C Maximum
Material [MATT]: Steel,Fed Std 66 Aisi 1066 Or 1069 Or 1070 Or 1072 Or 1074 Or 1075 Or 1078 Or 1080 Or 1084 Or 1086 Or 1090
Outside Diameter [ABKV]: 2.950 Inches Minimum And 3.020 Inches Maximum
Major Thickness [ABMC]: 0.090 Inches Minimum And 0.096 Inches Maximum
Ring Style [ACXD]: Internal
Usage Design [ALBY]: Internal
Surface Treatment [SFTT]: Cadmium And Chromate
