5325-00-793-0035
Turnlock Fastener Receptacle
5325007930035 007930035 294316
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
17
Marketplace 5325-00-793-0035
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-793-0035 5+ Documents (More...)
5325-00-793-0035 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-793-0035
Turnlock Fastener Receptacle 5325007930035 (Identification) 1/2 NSN 5325-00-793-0035 (Identification
Turnlock Fastener Receptacle 5325007930035 Documents 5325-00-793-0035 4+ Documents ( More... )
Navy (DN)NZDiscontinued-Use 5325-00-793-0035Defense Logistics Agency (DS)IZDiscontinued-Use 5325-00-793-0035
$1 a day Upgrade your Account Upgrade 4920-01-566-3388Aircra Kit Mounting4920015663388 015663388 294316
www.nsnlookup.com /fsg-49/fsc-4920/us 4920-01-566-3388 Aircra https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-793-0035
Turnlock Fastener Receptacle 5325007930035 Upgrade your Account Upgrade 5325-00-793-0035Turnlock
Fastener Receptacle5325007930035 007930035 294316 $1 a day Upgrade your Account Upgrade 4920-01-566-
/www.nsnlookup.com /fsg-59/fsc-5985/us 5985-01-593-7890 Waveguide Assembly 5985015937890015937890 294316
$1 a day Upgrade your Account Upgrade 5985-01-593 -7890Waveguide Assembly5985015937890 015937890 294316
Restrictions 5325-00-793-0035
5325-00-793-0035 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-793-0035
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-793-0035
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-793-0035
- Part Number
- Manufacturer
- Status
- 294316
- Manufacturer
- 60119 - Monadnock Company, The (Active)
- Primary Buy
- Primary Buy
- 294316
- 1P9E7 - Nesstay Supply, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5325-00-793-0035
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Center To Center Distance Between Mounting Holes [ABTH]
- 0.873 Inches Minimum And 0.877 Inches Maximum
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Material [MATT]
- Steel Overall
- Receptacle Height [AGSA]
- 0.625 Inches Maximum
- Receptacle Overall Length [AGRZ]
- 1.125 Inches Maximum
- Receptacle Width [AGSB]
- 0.625 Inches Nominal
- Turnlock Mounting Hole Diameter [CSYB]
- 0.098 Inches Minimum And 0.103 Inches Maximum

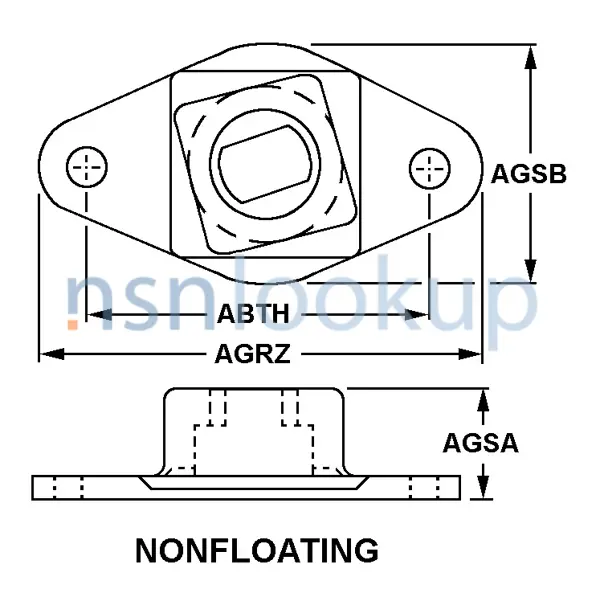

- Turnlock Receptacle Style [AGRY]
- Nonfloating
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
Weapon Systems (WSDC) 5325-00-793-0035
DLA Procurement Analysis 5325-00-793-0035
- Last Stock Position:
- 716 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-793-0035
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-793-0035
Freight Information 5325-00-793-0035
5325-00-793-0035 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-793-0035 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-793-0035 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-793-0035 is not classified as a special type of cargo when transported by water. 5325-00-793-0035 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-793-0035
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
