5325-00-772-3719
Retaining Ring
5325007723719 007723719 547975
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
November 2023
27
Marketplace 5325-00-772-3719
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-772-3719 5+ Documents (More...)
Every Day 5325-00-772-3719 RQST NE Related Documents 5325-00-772-3719 5+ Documents ( More... ) https
//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-772-3719 Retaining Ring 5325007723719 007723719,547975
/fsg-51/fsc-5120/br
https//www.nsnlookup.com /fsg-51/fsc-5120/br 5120-19-004-2815 Spanner Wrench 5120190042815190042815 547975
Retaining Ring 5325007723719 007723719,547975 2815Spanner Wrench5120190042815 190042815 www.nsnlookup.com
7055 Linear Microcircuit 5962012677055012677055 Microcircuit5962012677055 0126770556L.5443.164.01- 547975
Retaining Ring 5325007723719 007723719,547975 5120-19-004-2815 Spanner Wrench 5120190042815190042815
Retaining Ring 5325007723719 007723719,547975 Digital Microcircuit 5962012996400012996400 Upgrade
your Account Upgrade 5962-01-299-6400Digital Microcircuit5962012996400 0129964008200504ZA 547975 Digital
www.nsnlookup.com /fsg-59/fsc-5962/us 5962-01-299-6400 Digital Microcircuit 5962012996400 012996400 547975
www.nsnlookup.com /fsg-59/fsc-5962/us 5962-01-285-3500 Memory Microcircuit 5962012853500 012853500 547975
Restrictions 5325-00-772-3719
5325-00-772-3719 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-772-3719
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-772-3719
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Poland (WP01)
- Effective Date:
- 1 Jul 2011
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Sep 2012
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5325-00-772-3719
- Part Number
- Manufacturer
- Status
- 547975
- Manufacturer
- 81753 - Connecticut Spring & Stamping (Active)
- Primary Buy
- Primary Buy
- 547975
- 73030 - Hamilton Sundstrand Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5325-00-772-3719
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Round
- Material Document And Classification [MDCL]
- Qq-W-470 Fed Spec 1St Material Response And Ams 5112 Assn Std 2Nd Material Response
- Material [MATT]
- Steel Uns K08500 Or Steel Comp 1090

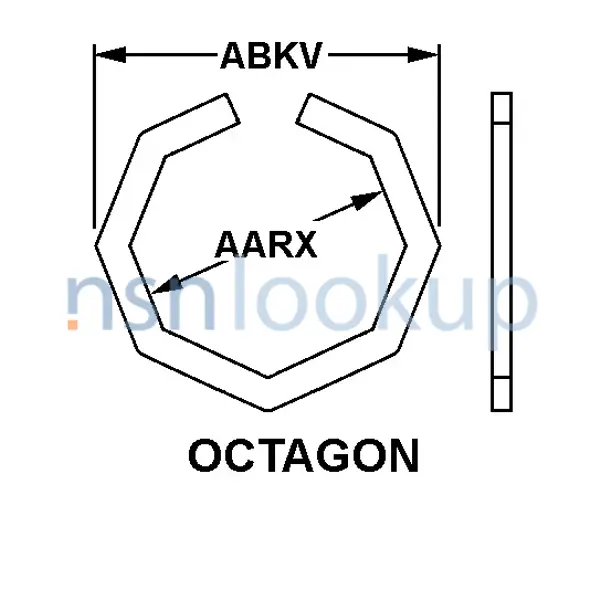

- Outside Diameter [ABKV]
- 1.135 Inches Nominal
- Inside Diameter [AARX]
- 1.024 Inches Minimum And 1.026 Inches Maximum
- Material Diameter [AJRB]
- 0.038 Inches Nominal
- Ring Style [ACXD]
- Octagon
- Usage Design [ALBY]
- Internal
Weapon Systems (WSDC) 5325-00-772-3719
DLA Procurement Analysis 5325-00-772-3719
- Last Stock Position:
- 198 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-772-3719
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-772-3719
Freight Information 5325-00-772-3719
5325-00-772-3719 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5325-00-772-3719 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-00-772-3719 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-772-3719 is not classified as a special type of cargo when transported by water. 5325-00-772-3719 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-772-3719
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5325-00-772-3719 23 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4AX18F0791
- 21 Nov 2017
- Subscribe
- 132
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94349139
- 31 Aug 2017
- Subscribe
- 31
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D9434809901
- 06 Jun 2017
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94348119
- 06 Jun 2017
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94348087
- 05 Jun 2017
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94347794
- 12 May 2017
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94345656
- 20 Nov 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94345641
- 18 Nov 2016
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94345646
- 18 Nov 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94343208
- 21 Apr 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94342313
- 04 Feb 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94341320
- 05 Nov 2015
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPE4AX15D94340108
- 24 Aug 2015
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D940577KL
- 18 Jul 2013
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D940577JP
- 15 Jul 2013
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D9405775Y
- 10 May 2013
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D9405776B
- 10 May 2013
- Subscribe
- 7
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D9405775W
- 10 May 2013
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D9405776A
- 10 May 2013
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D9405775X
- 10 May 2013
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D9405775Z
- 10 May 2013
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D9405775V
- 10 May 2013
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM4AX09D9405774F
- 02 May 2013
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5325-00-772-3719 April 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- G
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
