5325-00-675-8900
Turnlock Fastener Receptacle
5325006758900 006758900 9M148-1 GR520K-7 165319-01 525552 3518-G BACR10T5 HS4146 PRG3-1-2 PRG3.5 PRG 3 1/2 PRG35 PRG31/2 10119151 5325PL0727532 5325PL1803476
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
November 2023
November 2023
NATO Update Count
56
56
NATO Data Quality
Marketplace 5325-00-675-8900
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 5325-00-675-8900 RQST NE
Updated Every Day 5325-00-675-8900 RQST
Updated Every Day 5325-00-675-8900 RQST NE
Related Documents 5325-00-675-8900 5+ Documents (More...)
9M148-1 GR520K-7 525552 165319-01 3518-G BACR10T5 PRG3-1-2 HS4146 PRG3.5 PRG 3 1/2 PRG35 PRG31/2 10119151
5325PL0727532 5325PL1803476 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or
PRG31-2 RECEPTACLE,TURNLOCK FASTENER 6 EA NS Request Quotation PRG3-1-2 RECEPTACLE,TURNLOCK FASTENER
5325PL0727532 5325PL1803476 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or
PRG31-2 RECEPTACLE,TURNLOCK FASTENER 6 EA NS Request Quotation PRG3-1-2 RECEPTACLE,TURNLOCK FASTENER
PRG3-1-2 RECEPTACLE,TURNLOCK FASTENER 6 EA NS Request Quotation PRG31-2 RECEPTACLE,TURNLOCK FASTENER
Restrictions 5325-01-249-4321 DEMIL: A | DEMILI https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-675-8900
Turnlock Fastener Receptacle 5325006758900 Vendor Details... 16512C481 RECEPTACLE,TURNLOCK https
Restrictions 5325-01-249-4321 DEMIL: A | DEMILI https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-675-8900
Turnlock Fastener Receptacle 5325006758900 Vendor Details... 16512C481 RECEPTACLE,TURNLOCK https
www.nsnlookup.com /fsg-53/fsc-5320/uk 5320-99-403-8128 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-675-8900
Turnlock Fastener Receptacle 5325006758900 Upgrade 5325-00-675-8900Turnlock Fastener Receptacle5325006758900
006758900 9M148-1 GR520K-7 525552 165319 Electr Lining Rivet 5320994038128994038128 1073Circuit Card
Turnlock Fastener Receptacle 5325006758900 Upgrade 5325-00-675-8900Turnlock Fastener Receptacle5325006758900
006758900 9M148-1 GR520K-7 525552 165319 Electr Lining Rivet 5320994038128994038128 1073Circuit Card
Assembly 5998013051073013051073 enable JavaScript https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-675-8900
Turnlock Fastener Receptacle 5325006758900 Upgrade 5325-00-675-8900Turnlock Fastener Receptacle5325006758900
006758900 9M148-1 GR520K-7 525552 165319 Subscribe to View Vendor Details... 16512C481 RECEPTACLE,TURNLOCK
Turnlock Fastener Receptacle 5325006758900 Upgrade 5325-00-675-8900Turnlock Fastener Receptacle5325006758900
006758900 9M148-1 GR520K-7 525552 165319 Subscribe to View Vendor Details... 16512C481 RECEPTACLE,TURNLOCK
https//www.nsnlookup.com
/fsg-59/fsc-5995/de
/fsg-59/fsc-5995/de
5995-12-194-0122 Electrical Lead Assembly 5995121940122
165319 enable JavaScript in your web browser . 5998 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-675-8900
Turnlock Fastener Receptacle 5325006758900 Upgrade 5325-00-675-8900Turnlock Fastener Receptacle5325006758900
006758900 9M148-1 GR520K-7 525552 165319 8128 Electr Lining Rivet 5320994038128 994038128 1073Circuit
Turnlock Fastener Receptacle 5325006758900 Upgrade 5325-00-675-8900Turnlock Fastener Receptacle5325006758900
006758900 9M148-1 GR520K-7 525552 165319 8128 Electr Lining Rivet 5320994038128 994038128 1073Circuit
Restrictions 5325-00-675-8900
5325-00-675-8900 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-00-675-8900
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-675-8900
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- GTKEJB
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF)
- Finland (WF01)
- Effective Date:
- 1 Nov 2009
- Slovenia (WL)
- Slovenia (WL01)
- Effective Date:
- 1 Apr 2006
- Poland (WP)
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ)
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW)
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA)
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB)
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG)
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN)
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Jul 1996
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS)
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT)
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- United States of America (ZZ)
Approved Sources 5325-00-675-8900
- Part Number
- Manufacturer
- Status
- 3518-G
- Manufacturer
- 72794 - Southco Inc (Active)
- Primary Buy
- Primary Buy
- BACR10T5
- 81205 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- PRG3-1-2
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PRG3.5
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PRG 3 1/2
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PRG35
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- HS4146
- 02731 - Mcdonnell Douglas Helicopter Co Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- PRG31/2
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10119151
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5325PL0727532
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5325PL1803476
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- HS4146
- 8V613 - The Boeing Company (Active)
- Vendor Drawing
- Vendor Drawing
- 9M148-1
- 76301 - The Boeing Company (Active)
- Advisory Reference
- Advisory Reference
- GR520K-7
- 26512 - Northrop Grumman Systems Corporation (Active)
- Advisory Reference
- Advisory Reference
- 165319-01
- 35351 - Ge Aviation Systems Llc (Active)
- Advisory Reference
- Advisory Reference
- 525552
- 36378 - Raytheon Technical Services Company (Replaced)
- Advisory Reference
- Advisory Reference

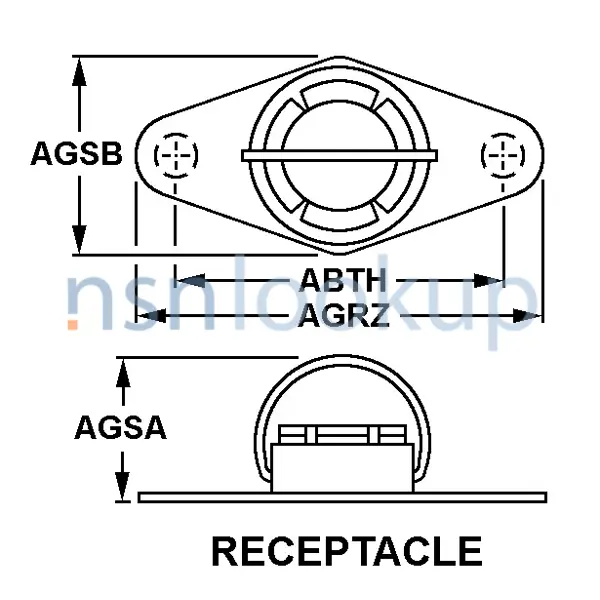

Datasheet 5325-00-675-8900
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Center To Center Distance Between Mounting Holes [ABTH]
- 0.745 Inches Minimum And 0.755 Inches Maximum
- Features Provided [CBBL]
- Protective Cap
- Material Document And Classification [MDCL]
- Qq-A-225/8,T4 Fed Spec Single Material Response Cap
- Material Document And Classification [MDCL]
- Qq-A-250/11,T4 Fed Spec Single Material Response Receptacle
- Material Document And Classification [MDCL]
- Qq-W-423,Comp 316,Cond B Fed Spec Single Material Response Pin
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Material [MATT]
- Aluminum Alloy 6061 Cap
- Material [MATT]
- Aluminum Alloy 6061 Receptacle
- Material [MATT]
- Steel Corrosion Resisting Pin
- Receptacle Height [AGSA]
- 0.240 Inches Nominal
- Receptacle Overall Length [AGRZ]
- 1.031 Inches Nominal
- Receptacle Width [AGSB]
- 0.400 Inches Nominal
- Turnlock Mounting Hole Diameter [CSYB]
- 0.098 Inches Minimum And 0.101 Inches Maximum
- Turnlock Receptacle Style [AGRY]
- Receptacle
Weapon Systems (WSDC) 5325-00-675-8900
DLA Procurement Analysis 5325-00-675-8900
- Last Stock Position:
- 700 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-675-8900
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 3
- Critical for Health and Safety of Personnel
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5325-00-675-8900
Freight Information 5325-00-675-8900
5325-00-675-8900 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-675-8900 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-675-8900 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-675-8900 is not classified as a special type of cargo when transported by water. 5325-00-675-8900 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5325-00-675-8900 10 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623FB89X
- 07 Jul 2023
- Subscribe
- 25
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89Y
- 07 Jul 2023
- Subscribe
- 226
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89Z
- 07 Jul 2023
- Subscribe
- 1069
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89X
- 07 Jul 2023
- Subscribe
- 25
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89Y
- 07 Jul 2023
- Subscribe
- 226
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB89Z
- 07 Jul 2023
- Subscribe
- 1069
- Subscribe
- Subscribe
- Subscribe
- SPE4A622PK168
- 22 Apr 2022
- Subscribe
- 86
- Subscribe
- Subscribe
- Subscribe
- SPE4A621V570X
- 29 Jul 2021
- Subscribe
- 992
- Subscribe
- Subscribe
- Subscribe
- SPE5EM18V7567
- 17 Aug 2018
- Subscribe
- 878
- Subscribe
- Subscribe
- Subscribe
- SPE5E413V1145
- 21 Aug 2013
- Subscribe
- 4421
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5325-00-675-8900 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
