5325-00-674-8880
Turnlock Fastener Receptacle
5325006748880 006748880 05-PRF35NA PRF3 1-2 PRF35 3518-F 5325PL0727527 5325PL1862741
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
34
Marketplace 5325-00-674-8880
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-674-8880 4+ Documents (More...)
(Identification) 1/2 NSN 5325-00-674-8880 (Identification) 2/2 - - 1.
PRF35 RECEPTACLE,TURNLOCK FASTENER 99 EA NS Request Quotation Subscribe to View Vendor Details... 5325
Turnlock Fastener Receptacle 5325006748880 PRF35 3518-F 5325PL0727527 5325PL1862741 A threaded
your Account Upgrade 5325-00-674-8880Turnlock Fastener Receptacle5325006748880 006748880 05-PRF35NA
PRF3-1-2 RECEPTACLE,TURNLOCK FASTENER 4 EA NS Request Quotation Subscribe to View Vendor Details...
RECEPTACLE,TURNLOCK FASTENER 4 EA NS Request PRF3-1/2 RECEPTACLE,TURNLOCK FASTENER 43 EA NS Request
Turnlock Fastener Receptacle 5325006748880 PRF3-1-2 RECEPTACLE,TURNLOCK FASTENER 4 EA NS Request
PRF3-1/2 RECEPTACLE,TURNLOCK FASTENER 43 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5325-00-674-8880
5325-00-674-8880 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-674-8880
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CL
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Brazil (YA01)
- Effective Date:
- 1 Sep 2007
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 May 1998
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 May 2004
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Aug 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 5325-00-674-8880
- Part Number
- Manufacturer
- Status
- 05-PRF35NA
- Manufacturer
- 72794 - Southco Inc (Active)
- Primary Buy
- Primary Buy
- PRF3 1-2
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PRF35
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3518-F
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5325PL0727527
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5325PL1862741
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference

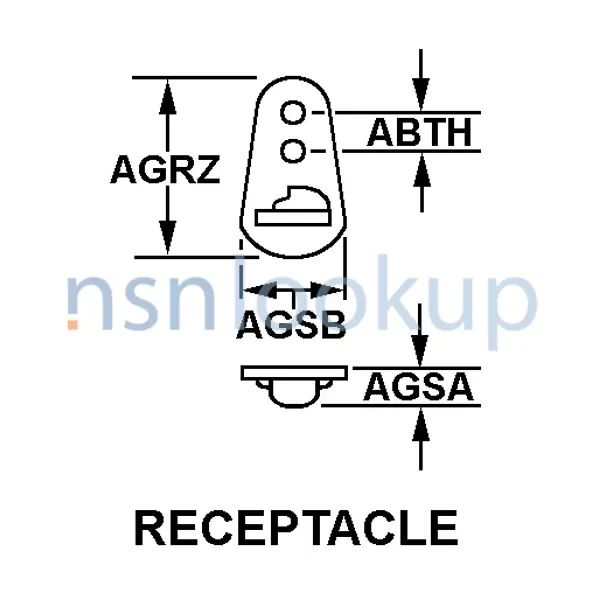

Datasheet 5325-00-674-8880
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Center To Center Distance Between Mounting Holes [ABTH]
- 0.215 Inches Minimum And 0.221 Inches Maximum
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Material [MATT]
- Aluminum Alloy 6061 Capsteel Comp 316 Pinaluminum Alloy 6061 Receptacle
- Material Document And Classification [MDCL]
- Astm A313 Assn Std Single Material Response Pin
- Receptacle Height [AGSA]
- 0.240 Inches Nominal
- Receptacle Overall Length [AGRZ]
- 0.953 Inches Minimum And 0.985 Inches Maximum
- Receptacle Width [AGSB]
- 0.485 Inches Minimum And 0.500 Inches Maximum
- Special Features [FEAT]
- 0.050 In. Dia Pin,0.237 In. Min,0.247 In. Max Dia Of Center Hole
- Turnlock Mounting Hole Diameter [CSYB]
- 0.098 Inches Minimum And 0.101 Inches Maximum
- Turnlock Receptacle Style [AGRY]
- Receptacle
Weapon Systems (WSDC) 5325-00-674-8880
DLA Procurement Analysis 5325-00-674-8880
- Last Stock Position:
- 137 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-674-8880
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-674-8880
Freight Information 5325-00-674-8880
5325-00-674-8880 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-674-8880 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-674-8880 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-674-8880 is not classified as a special type of cargo when transported by water. 5325-00-674-8880 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-674-8880
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 5325-00-674-8880 3 Records
Contracting Technical Data File (CTDF) 5325-00-674-8880 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
