5325-00-641-0607
Snap Fastener Clinch Plate
5325006410607 006410607 312325-49B MS27982-1B AN227-49B 5325PL0846773
A metal device designed to permanently fasten a SOCKET, SNAP FASTENER or a STUD, SNAP FASTENER to a material by means of prongs or riveting. View more Snap Fastener Clinch Plate
November 2023
13
Marketplace 5325-00-641-0607
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-641-0607 3+ Documents (More...)
AN227-49B CLINCH PLATE,SNAP FASTENER 9700 EA NS Request Quotation Updated Every Day 5325-00-641-0607
RQST NE Updated Every Day 5325-00-641-0607 RQST Updated Every Day 5325-00-641-0607 RQST NE Related Documents
Snap Fastener Clinch Plate 5325006410607 Upgrade your Account Upgrade 5325-00-641-0607Snap Fastener
Clinch Plate5325006410607 006410607 312325-49B MS27982-1B AN227-49B 5325PL0846773 A metal device designed
Restrictions 5325-00-641-0607
5325-00-641-0607 is a Snap Fastener Clinch Plate that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-641-0607
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Dec 1993
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- KE
- Poland (WP01)
- Effective Date:
- 1 Jul 2011
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jan 2014
Approved Sources 5325-00-641-0607
- Part Number
- Manufacturer
- Status
- MS27982-1B
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- 312325-49B
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AN227-49B
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5325PL0846773
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference

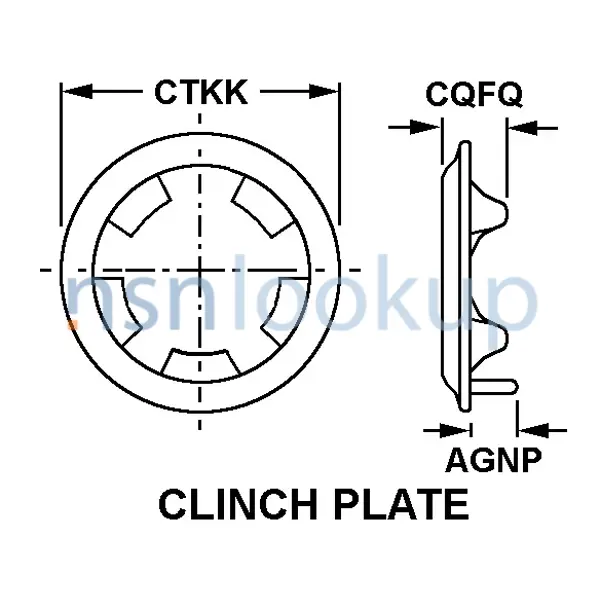

Datasheet 5325-00-641-0607
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Clinch Plate Diameter [CTKK]
- 0.422 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-B-613 Fed Spec 1St Material Response Overall Or Mil-C-50 Mil Spec 2Nd Material Response Overall
- Material [MATT]
- Copper Alloy 260 Overall
- Plate Overall Height [CQFQ]
- 0.141 Inches Nominal
- Plate Prong Length [AGNP]
- 0.110 Inches Nominal
- Snap Fastener Clinch Plate Style [AGNN]
- Clinch Plate
- Special Features [FEAT]
- Color Black
- Surface Treatment [SFTT]
- Enamel Overall
Weapon Systems (WSDC) 5325-00-641-0607
DLA Procurement Analysis 5325-00-641-0607
- Last Stock Position:
- 14788 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-641-0607
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-641-0607
Freight Information 5325-00-641-0607
5325-00-641-0607 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-641-0607 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-641-0607 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-641-0607 is not classified as a special type of cargo when transported by water. 5325-00-641-0607 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-641-0607
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5325-00-641-0607 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
