5325-00-613-7992
Snap Fastener Stud
5325006137992 006137992 MS27980-27N NASM27980
A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER. View more Snap Fastener Stud
November 2023
25
Marketplace 5325-00-613-7992
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-613-7992 4+ Documents (More...)
United States (US) 4. 5325-00-613-7992 Marketplace Restrictions Approved Sources Datasheet Management
MS28790-27N STUD,SNAP FASTENER 46 EA NS Request Quotation Updated Every Day 5325-00-613-7992 RQST NE
Snap Fastener Stud 5325006137992 006137992 Upgrade your Account Upgrade 5325-00-613-7992Snap Fastener
Stud5325006137992 006137992 MS27980-27N NASM27980 Snap Fastener Cap 5325003509035003509035 for $1 a
Snap Fastener Stud 5325006137992 006137992 NASM27980 Upgrade your Account Upgrade 5342-00-111-3605Hold
Down Button5342001113605 001113605 MS27980-5B 549182 NASM27980 RNVC 2 DAC 5 549182 21450 - Army Weapons
Snap Fastener Stud 5325006137992 006137992 Upgrade your Account Upgrade 5342-00-111-3605Hold Down
Button5342001113605 001113605MS27980-5B549182 NASM27980 RNVC 2 DAC 5 549182 21450 - Army Weapons Command
Restrictions 5325-00-613-7992
5325-00-613-7992 is a Snap Fastener Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-613-7992
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Dec 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 1995
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5325-00-613-7992
- Part Number
- Manufacturer
- Status
- MS27980-27N
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MS27980-27N
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- NASM27980
- 80205 - National Aerospace Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-00-613-7992
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Copper Alloy 260 Overall
- Surface Treatment [SFTT]
- Nickel Overall

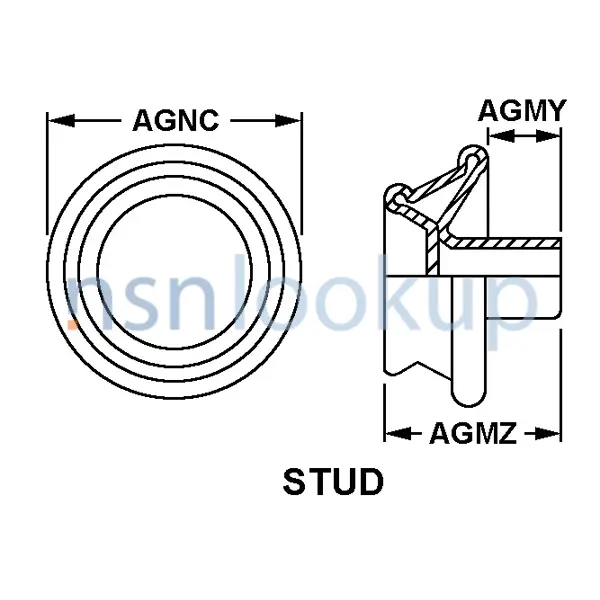

- Snap Fastener Stud Style [AGMX]
- Stud
- Stud Shank Length [AGMY]
- 0.172 Inches Nominal
- Stud Overall Length [AGMZ]
- 0.391 Inches Nominal
- Stud Head Diameter [AGNA]
- 0.562 Inches Nominal
- Stud Retention Method [AGPC]
- Clinch
Weapon Systems (WSDC) 5325-00-613-7992
DLA Procurement Analysis 5325-00-613-7992
- Last Stock Position:
- 14082 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-613-7992
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-613-7992
Freight Information 5325-00-613-7992
5325-00-613-7992 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-613-7992 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-613-7992 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-613-7992 is not classified as a special type of cargo when transported by water. 5325-00-613-7992 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-613-7992
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 5325-00-613-7992 2 Records
Contracting Technical Data File (CTDF) 5325-00-613-7992 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
