5325-00-598-1334
Retaining Ring
5325005981334 005981334 RS600
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
October 2025
5
Marketplace 5325-00-598-1334
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-598-1334 5+ Documents (More...)
5325-00-598-1334 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-598-1334
Retaining Ring 5325005981334005981334,RS600 5325-00-598-1334 5+ Documents ( More... ) https//www.nsnlookup.com
Retaining Ring 5325005981334 005981334,RS600 Oversize Sleeve 2915996144501996144501 A2-RS600 https
enable JavaScript in your web browser . 5210-15-185 -4737Contafiletti Metric5210151854737 151854737 RS600
Retaining Ring 5325005981334 005981334,RS600 Primary Buy RNCC 3 RNVC 2 DAC 2 A2-RS600 https https
enable JavaScript in your web browser . 5210-15-185 -4738Contafiletti Whitwo5210151854738 151854738 RS600
www.nsnlookup.com /fsg-59/fsc-5990/us 5990-00-482-2174 Electrical Resolver 5990004822174004822174 5325-00-598-1334
Retaining Ring 5325005981334 005981334 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-598
-1 RS600-1 Managed by United Kingdom NSN Created on 25 Apr 1991 Data Last Changed January 2023 NATO Update
//www.nsnlookup.com /fsg-29/fsc-2915/uk 2915-99-614-4501 Oversize Sleeve 2915996144501996144501 A2-RS600
Restrictions 5325-00-598-1334
5325-00-598-1334 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-00-598-1334
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-598-1334
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 5325-00-598-1334
- Part Number
- Manufacturer
- Status
- RS600
- Manufacturer

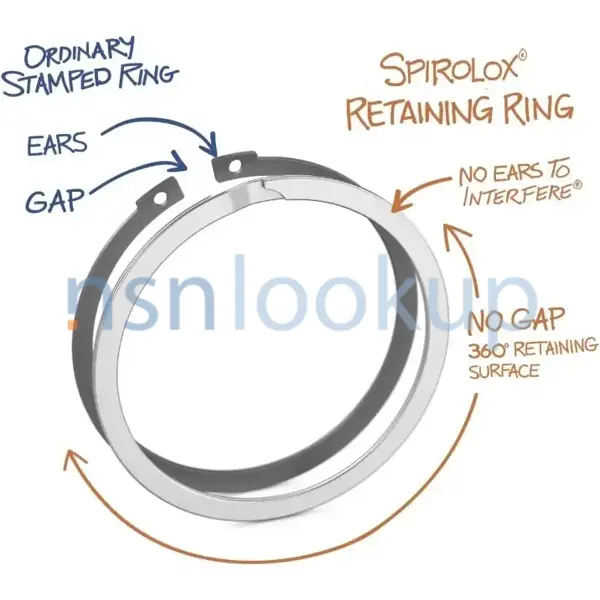

- 80756 - Spirolox Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-00-598-1334
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened

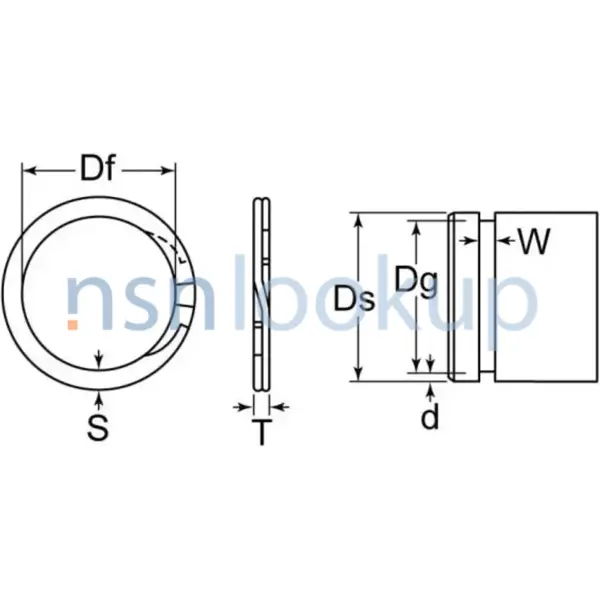

- Cross-Sectional Shape Style [AAGR]
- Double Oval
- Material Hardness Rating [ALME]
- 64.0 Rockwell Superficial 30-N Minimum And 71.8 Rockwell Superficial 30-N Maximum
- Material [MATT]
- Steel,Sae 1070 To 1090
- Outside Diameter [ABKV]
- 6.298 Inches Nominal
- Inside Diameter [AARX]
- 5.798 Inches Nominal
- Major Thickness [ABMC]
- 0.070 Inches Nominal
- Ring Style [ACXD]
- Spiral
- Usage Design [ALBY]
- External
- Strength Rating [AWQD]
- 211000.0 Pounds Per Square Inch Minimum Tensile
DLA Procurement Analysis 5325-00-598-1334
Management Data 5325-00-598-1334
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-598-1334
Freight Information 5325-00-598-1334
5325-00-598-1334 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5325-00-598-1334 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-00-598-1334 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-598-1334 is not classified as a special type of cargo when transported by water. 5325-00-598-1334 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-598-1334
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5325-00-598-1334 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
