5325-00-598-1315
Retaining Ring
5325005981315 005981315 RS525

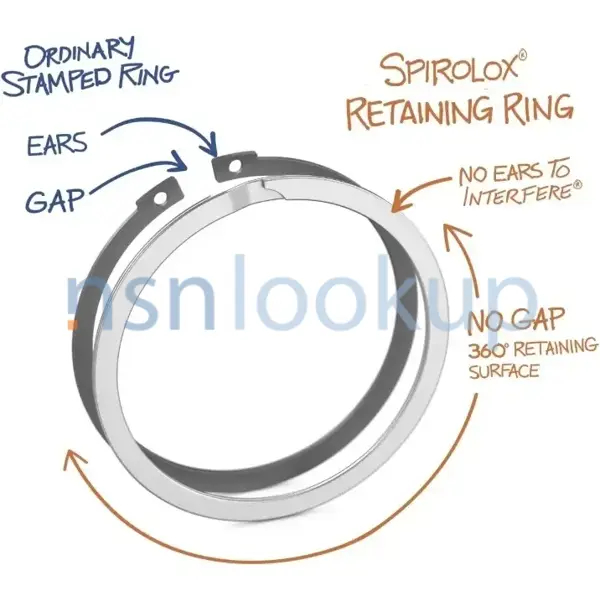

A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
October 2025
5
Marketplace 5325-00-598-1315
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-598-1315 5+ Documents (More...)
Every Day 5325-00-598-1315 RQST NE Related Documents 5325-00-598-1315 4+ Documents ( More... ) https
//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-598-1315 Retaining Ring 5325005981315005981315,RS525
8122 U BS4174 https// 28S11776 78GC8549 DEFSTAN53 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-598-1315
Retaining Ring 5325005981315 005981315,RS525 Restrictions Approved Sources Datasheet Management
Z2ZB14008 28S16149 Managed by United Kingdom BS4174 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-598-1315
Retaining Ring 5325005981315 005981315,RS525 Restrictions Approved Sources Datasheet Management
5305993502925 BS3692-TABLE 6WG1388-1991/45525-874MS01-026DWG0388-5005 ITEM 49WG0388-5005/49WG1388-1991 ITEM 45 RS525
991/4/01575/492 An externally threaded fastener https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-598-1315
Restrictions 5325-00-598-1315
5325-00-598-1315 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-00-598-1315
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-598-1315
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2014
- Supplementary Collaborators:
- HX
- United States of America (ZZ)
Approved Sources 5325-00-598-1315
- Part Number
- Manufacturer
- Status
- RS525
- Manufacturer
- 80756 - Spirolox Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-00-598-1315
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Double Oval
- Material Hardness Rating [ALME]
- 20 In Scale 64 To 71.8
- Material [MATT]
- Steel,Sae,1070 To 1090
- Part Name Assigned By Controlling Agency [CXCY]
- Navy Special Project
- Inside Diameter [AARX]
- 5.064 Inches Nominal
- Major Thickness [ABMC]
- 0.070 Inches Nominal
- Ring Style [ACXD]
- Spiral
- Outside Diameter [ABKV]
- 5.564 Inches Nominal
- Usage Design [ALBY]
- External
- Strength Rating [AWQD]
- 211000.0 Pounds Per Square Inch Minimum Tensile
DLA Procurement Analysis 5325-00-598-1315
Management Data 5325-00-598-1315
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-598-1315
Freight Information 5325-00-598-1315
5325-00-598-1315 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-00-598-1315 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-00-598-1315 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-598-1315 is not classified as a special type of cargo when transported by water. 5325-00-598-1315 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5325-00-598-1315 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
