5325-00-598-1004
Retaining Ring
5325005981004 005981004 3XE350A
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
January 2023
15
Marketplace 5325-00-598-1004
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-598-1004 1+ Documents (More...)
/fsg-53/fsc-5325/us
(Identification) 1/2 NSN 5325-00-598-1004 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5325-00-598-1004 RQST Updated Every Day 5325-00-598-1004 RQST NE Related Documents
Restrictions 5325-00-598-1004
5325-00-598-1004 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-598-1004
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-598-1004
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5325-00-598-1004
- Part Number
- Manufacturer
- Status
- 3XE350A
- Manufacturer
- 77107 - Paragon Power Inc Sub Of Great Lakes (Active)
- Original Design
- Original Design
Datasheet 5325-00-598-1004
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Rounded Corners
- Material [MATT]
- Steel,Astm A576,Comp 1060

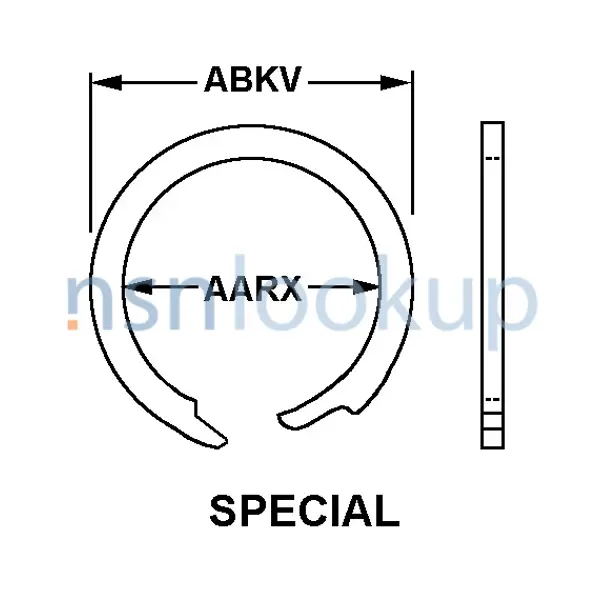

- Outside Diameter [ABKV]
- 3.250 Inches Nominal
- Inside Diameter [AARX]
- 2.875 Inches Nominal
- Major Thickness [ABMC]
- 0.062 Inches Nominal
- Ring Style [ACXD]
- Special
- Usage Design [ALBY]
- External Or Internal
Similar Supply Items to 5325-00-598-1004
Freight Information 5325-00-598-1004
5325-00-598-1004 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063520. A Sub NMFC of Z. It has a NMFC Description of WAVEGUIDE IN BOXES/CRATES. 5325-00-598-1004 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5325-00-598-1004 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5325-00-598-1004 is not classified as a special type of cargo when transported by water. 5325-00-598-1004 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-598-1004
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Special Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Special requirement – See specific instructions or drawings provided
