5325-00-598-0813
Retaining Ring
5325005980813 005980813 MIL-DTL-21248 N5000-81PP 3000-X81-ST-PA N5000-X81-S-PP MS16625-3081 NAS669-81P N5000-81-S-PP
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
November 2023
32
Marketplace 5325-00-598-0813
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-598-0813 5+ Documents (More...)
/fsg-53/fsc-5325/us

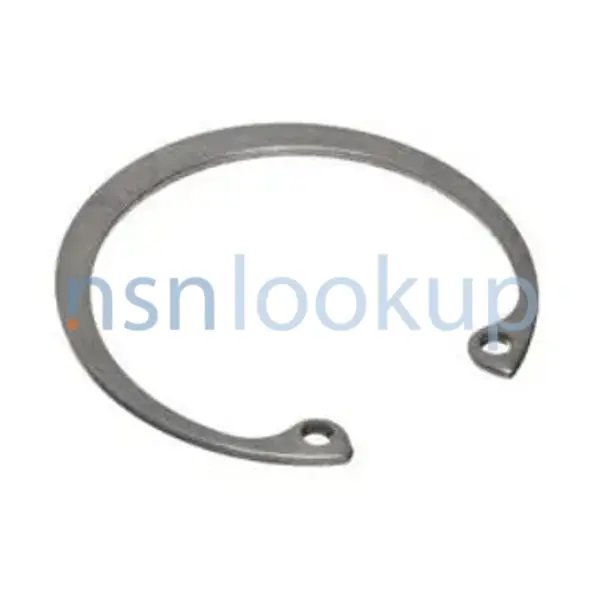

Photo 1/3 NSN 5325-00-598-0813 (Identification) 2/3 NSN 5325-00-598-0813 (Identification) 3/3 -
MS16625-3081 RING,RETAINING 100 EA NS Request Quotation Updated Every Day 5325-00-598-0813 RQST NE Updated
/fsg-53/fsc-5325/us
Retaining Ring 5325005980813 005980813 Ring5325005980813 005980813 MIL-DTL-21248 N5000-81PP 3000
-X81-ST-PA N5000-X81-S-PP MS16625-3081 NAS669-81P N5000-81 Retaining Ring 5325016944175016944175 07382
MIL-DTL-21248 N5000-81PP 3000-X81 (Active) Incomplete Secondary Reference RNCC 5 RNVC 1 DAC 5 3000-X81
/fsg-53/fsc-5325/us
NumberManufacturerStatusMS16624-2550 96906 - Military Standards (Active) Definitive Standard RNCC 2 RNVC 2 DAC 4 MIL-DTL-21248
/fsg-53/fsc-5325/us
for $1 a day Upgrade your Account Upgrade 5325-01-456-8179Retaining Ring5325014568179 014568179 MIL-DTL-21248
for $1 a day Upgrade your Account Upgrade 5325-01-437-7630Retaining Ring5325014377630 014377630 MIL-DTL-21248
Restrictions 5325-00-598-0813
5325-00-598-0813 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-598-0813
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-598-0813
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5325-00-598-0813
- Part Number
- Manufacturer
- Status
- MS16625-3081
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-21248
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- N5000-81PP
- 07382 - Rotor Clip Company, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 3000-X81-ST-PA
- 07382 - Rotor Clip Company, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- N5000-X81-S-PP
- 07382 - Rotor Clip Company, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- N5000-81-S-PP
- 07382 - Rotor Clip Company, Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- NAS669-81P
- 80205 - National Aerospace Standards (Active)
- Secondary Buy
- Secondary Buy
- N5000-81PP
- 79136 - Truarc Company Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- N5000-81-S-PP
- 79136 - Truarc Company Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- N5000-X81-S-PP
- 79136 - Truarc Company Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3000-X81-ST-PA
- 97464 - Truarc Co Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-00-598-0813
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Rectangular
- Material Hardness Rating [ALME]
- 66.0 Rockwell Superficial 30-N Minimum And 71.0 Rockwell Superficial 30-N Maximum
- Material [MATT]
- Steel,Fed Std 66 Aisi 1066 Or 1069 Or 1070 Or 1072 Or 1074 Or 1075 Or 1078 Or 1080 Or 1084 Or 1086 Or 1090
- Outside Diameter [ABKV]
- 0.891 Inches Minimum And 0.916 Inches Maximum
- Major Thickness [ABMC]
- 0.040 Inches Minimum And 0.044 Inches Maximum
- Ring Style [ACXD]
- Internal
- Usage Design [ALBY]
- Internal
- Surface Treatment [SFTT]
- Phosphate
