5325-00-530-9034
Turnlock Fastener Lock Spring
5325005309034 005309034 SX560TAN16442 SX560 G243988-1
A spring-tempered wire item used to secure a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cammed groove of the STUD, TURNLOCK FASTENER and securing it by means of its spring action. View more Turnlock Fastener Lock Spring
May 2023
19
Marketplace 5325-00-530-9034
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-530-9034 5+ Documents (More...)
658 EA NS Request Quotation Updated Every Day 5325-00-530-9034 RQST NE Updated Every Day 5325-00-530
-9034 RQST Updated Every Day 5325-00-530-9034 RQST NE Related Documents 5325-00-530-9034 5+ Documents
SX560 LOCK SPRING,TURNLOCK FASTENER 275 EA NS Request Quotation 411964-1 LOCK SPRING,TURNLOCK FASTENER
https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-530-9034 Turnlock Fastener Lock Spring 5325005309034
Turnlock Fastener Lock Spring 5325005309034 Account Upgrade 5325-00-530-9034Turnlock Fastener Lock
Spring5325005309034 005309034 SX560TAN16442 SX560 SX560 LOCK SPRING,TURNLOCK FASTENER 275 EA NS Request
SX560TAN16442 SX560 SX560 LOCK SPRING,TURNLOCK FASTENER 275 EA NS Request Quotation 411964-1 8830 Projectile
Lifting Plug 1315999628830,SX560 https//www.nsnlookup.com /fsg-59/fsc-5998/us 5998-01-250-8854 Printed
Restrictions 5325-00-530-9034
5325-00-530-9034 is a Turnlock Fastener Lock Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-530-9034
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-530-9034
- Part Number
- Manufacturer
- Status
- SX560
- Manufacturer
- 72794 - Southco Inc (Active)
- Original Design
- Original Design
- SX560TAN16442
- D1081 - Airbus Deutschland Gmbh -Werk (Active)
- Secondary Buy
- Secondary Buy
- G243988-1
- 92674 - A T And T Tecnologies Inc Sub Of (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-00-530-9034
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400

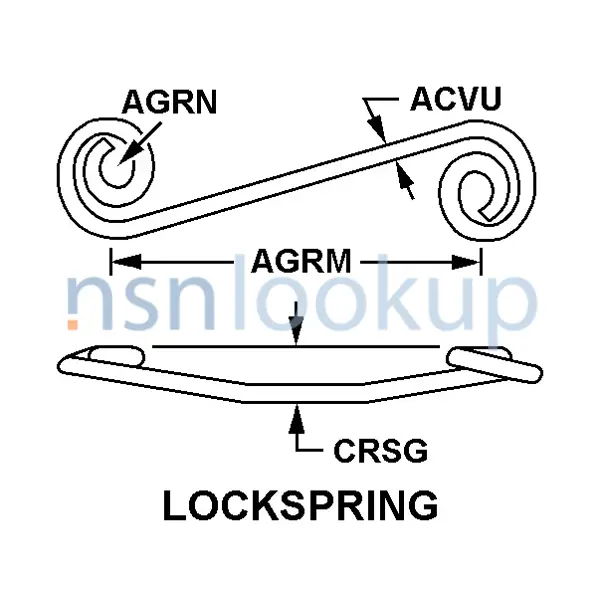

- Center To Center Distance Between Eyes [AGRM]
- 0.615 Inches Minimum And 0.635 Inches Maximum
- Eye Diameter [AGRN]
- 0.095 Inches Minimum And 0.101 Inches Maximum
- Material [MATT]
- Steel Overall
- Lockspring Overall Height [CRSG]
- 0.050 Inches Nominal
- Lockspring Style [AGRL]
- Lockspring
- Stock Diameter [ACVU]
- 0.050 Inches Nominal
- Surface Treatment [SFTT]
- Cadmium Overall
Weapon Systems (WSDC) 5325-00-530-9034
DLA Procurement Analysis 5325-00-530-9034
Management Data 5325-00-530-9034
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-530-9034
Freight Information 5325-00-530-9034
5325-00-530-9034 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-530-9034 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-530-9034 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-530-9034 is not classified as a special type of cargo when transported by water. 5325-00-530-9034 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
