5325-00-449-2965
Turnlock Fastener Receptacle
5325004492965 004492965 99729 99948P130
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
November 2023
15
Marketplace 5325-00-449-2965
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5325-00-449-2965 5+ Documents (More...)
(Identification) 1/2 NSN 5325-00-449-2965 (Identification) 2/2 - - 1.
United States (US) 4. 5325-00-449-2965 Marketplace Restrictions Approved Sources Datasheet Management
www.nsnlookup.com /fsg-53/fsc-5365/fr 5365-14-268-1546 Externally Threaded Ring 5365142681546,99729 99729
Turnlock Fastener Receptacle 5325004492965 day Upgrade your Account Upgrade 5325-00-449-2965Turnlock
www.nsnlookup.com /fsg-75/fsc-7530/ca 7530-21-910-7810 Writing Paper Pad 7530219107810219107810 L16-99729
enable JavaScript in your web browser . 7530-21-910-7810Writing Paper Pad7530219107810 219107810L16-99729
Users 1680-15-186-7418 Italy (ZR) Approved Sources 1680-15-186-7418 Part NumberManufacturerStatusA6107-99729
Users 1680-15-144-9075 Italy (ZR) Approved Sources 1680-15-144-9075 Part NumberManufacturerStatusA6107-99729
Restrictions 5325-00-449-2965
5325-00-449-2965 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-449-2965
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-449-2965
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-449-2965
- Part Number
- Manufacturer
- Status
- 99948P130
- Manufacturer
- 60119 - Monadnock Company, The (Active)
- Primary Buy
- Primary Buy
- 99948P130
- 61864 - Trw Assemblies And Fasteners Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 99729
- 09736 - Trw Canada Limitedunited-Carr Div (Active)
- Advisory Reference
- Advisory Reference
- 99729
- D9295 - Andreas Hofer Hochdrucktechnik Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 99729
- 09017 - Edo (Obsolete)
- Advisory Reference
- Advisory Reference

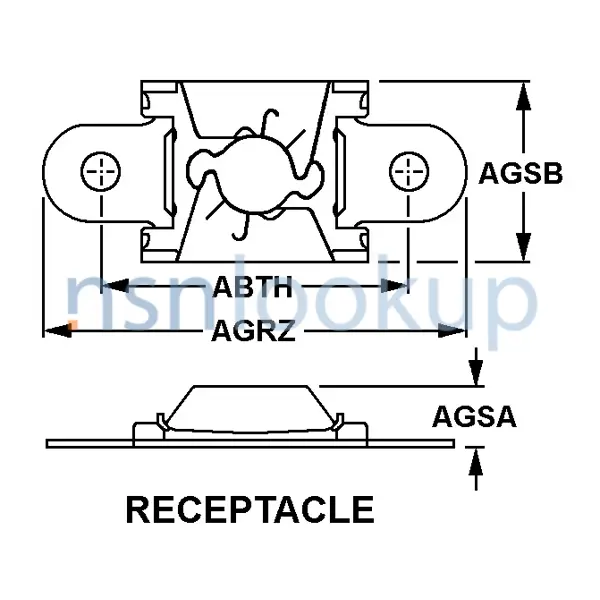

Datasheet 5325-00-449-2965
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Center To Center Distance Between Mounting Holes [ABTH]
- 1.375 Inches Nominal
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Material [MATT]
- Steel Overall
- Receptacle Height [AGSA]
- 0.406 Inches Nominal
- Receptacle Overall Length [AGRZ]
- 1.781 Inches Nominal
- Receptacle Width [AGSB]
- 0.984 Inches Nominal
- Turnlock Mounting Hole Diameter [CSYB]
- 0.130 Inches Nominal
- Turnlock Receptacle Style [AGRY]
- Receptacle
- Surface Treatment [SFTT]
- Cadmium Overall
Weapon Systems (WSDC) 5325-00-449-2965
DLA Procurement Analysis 5325-00-449-2965
- Last Stock Position:
- 156 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-449-2965
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2023
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Nov 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Apr 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-449-2965
Freight Information 5325-00-449-2965
5325-00-449-2965 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093490. A Sub NMFC of X. It has a NMFC Description of BOLT/NUT/SCREW/CLIPS/FASTENER/ETC. 5325-00-449-2965 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50270 which rates the freight between FCL and LCL. 5325-00-449-2965 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-449-2965 is not classified as a special type of cargo when transported by water. 5325-00-449-2965 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-449-2965
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5325-00-449-2965 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
