5325-00-448-8266
Snap Fastener Stud
5325004488266 004488266 MS27980-26B
A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER. View more Snap Fastener Stud
November 2023
6
Marketplace 5325-00-448-8266
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-448-8266 1+ Documents (More...)
MS27980-26B STUD,SNAP FASTENER 640 EA NS Request Quotation FedMall Updated Every 15 Minutes 5325-00-448
-8266 BUY NE FedMall Updated Every Day 5325-00-448-8266 RQST NE Updated Every Day 5325-00-448-8266 RQST
Restrictions 5325-00-448-8266
5325-00-448-8266 is a Snap Fastener Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-448-8266
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-448-8266
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Supplementary Collaborators:
- KE
Approved Sources 5325-00-448-8266
- Part Number
- Manufacturer
- Status
- MS27980-26B
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
Datasheet 5325-00-448-8266
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400

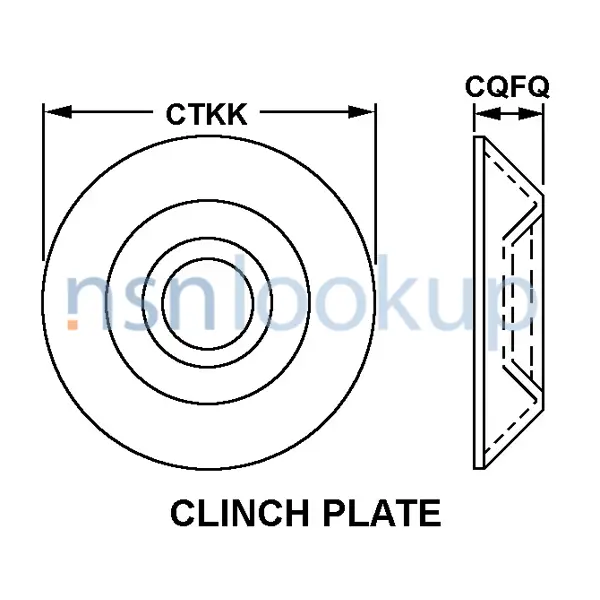

- Clinch Plate Diameter [CTKK]
- 0.875 Inches Nominal
- Material [MATT]
- Copper Alloy Overall
- Plate Overall Height [CQFQ]
- 0.062 Inches Minimum And 0.125 Inches Maximum
- Snap Fastener Clinch Plate Style [AGNN]
- Clinch Plate
- Snap Fastener Stud Style [AGMX]
- Stud
- Stud Overall Length [AGMZ]
- 0.344 Inches Nominal
- Stud Retention Method [AGPC]
- Clinch
- Stud Shank Length [AGMY]
- 0.125 Inches Nominal
- Stud Base Diameter [AGNC]
- 0.562 Inches Nominal
- Surface Treatment [SFTT]
- Oxide Film Overall
Weapon Systems (WSDC) 5325-00-448-8266
DLA Procurement Analysis 5325-00-448-8266
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-448-8266
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-448-8266
Freight Information 5325-00-448-8266
5325-00-448-8266 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-448-8266 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-448-8266 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-448-8266 is not classified as a special type of cargo when transported by water. 5325-00-448-8266 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-448-8266
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5325-00-448-8266 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- H
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
