5325-00-433-0065
Turnbutton Fastener
5325004330065 004330065 P/N 40 AND 32 XB78322BS78507 B410-410A B410AND410A 211432
A fastening device, oval in shape, the top half of which, after having been inserted through a SOCKET, TURNBUTTON FASTENER, must be turned to act as a retainer. It must include a SOCKET, TURNBUTTON FASTENER. May also include a CLINCH PLATE, TURNBUTTON FASTENER. For items furnished without the mating SOCKET(s), TURNBUTTON FASTENER, see STUD, TURNBUTTON FASTENER. View more Turnbutton Fastener
May 2023
6
Marketplace 5325-00-433-0065
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-433-0065 5+ Documents (More...)
(Identification) 1/3 NSN 5325-00-433-0065 (Identification) 2/3 NSN 5325-00-433-0065 (Identification
RQST NE Updated Every Day 5325-00-433-0065 RQST Updated Every Day 5325-00-433-0065 RQST NE Related
END,WATER INJECTION 30 EA NS Request Quotation Subscribe to View Vendor Details... 211432 END,WATER
211432 END,WATER INJECTION 30 EA NS Request Quotation Subscribe to View Vendor Details... 211432 END
END,WATER INJECTION 30 EA NS Request Quotation Subscribe to View Vendor Details... 211432 END,WATER
END,WATER INJECTION 30 EA NS Request Quotation Subscribe to View Vendor Details... 211432 END,WATER
$1 a day Upgrade your Account Upgrade 2915-00-524-5134Water Injection End2915005245134 005245134 211432
END,WATER INJECTION 30 EA NS Request Quotation Subscribe to View Vendor Details... 211432 END,WATER
END,WATER INJECTION 30 EA NS Request Quotation Subscribe to View Vendor Details... 211432 END,WATER
END,WATER INJECTION 30 EA NS Request Quotation Subscribe to View Vendor Details... 211432 END,WATER
Restrictions 5325-00-433-0065
5325-00-433-0065 is a Turnbutton Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-433-0065
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- NIZD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
Approved Sources 5325-00-433-0065
- Part Number
- Manufacturer
- Status
- P/N 40 AND 32
- Manufacturer
- 85101 - Neider F A Co The (Active)
- Primary Buy
- Primary Buy
- XB78322BS78507
- 61864 - Trw Assemblies And Fasteners Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- B410-410A
- 61864 - Trw Assemblies And Fasteners Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- B410AND410A
- 61864 - Trw Assemblies And Fasteners Group (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 211432
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-00-433-0065
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Base Length [AGNF]
- 0.750 Inches Nominal
- Base Width [ACUU]
- 0.500 Inches Nominal
- Button Thickness [AGPG]
- 0.312 Inches Nominal
- Button Width [AGPF]
- 0.531 Inches Nominal
- End Length [AXMB]
- 0.312 Inches Nominal
- Fabrication Method [AARN]
- Stamped
- Height [HGTH]
- 0.719 Inches Nominal
- Material [MATT]
- Copper Alloy Clinch Plate
- Material [MATT]
- Copper Alloy Stud
- Plate Overall Width [CSPP]
- 0.594 Inches Nominal
- Plate Overall Length [CQSR]
- 0.812 Inches Nominal

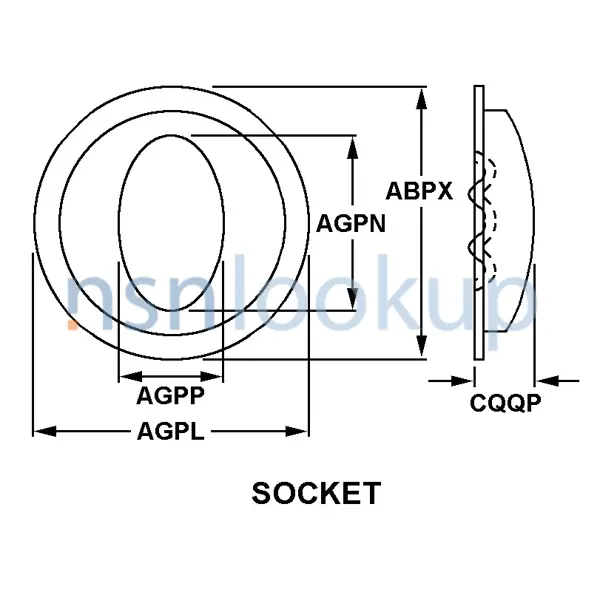

- Socket Hole Length [AGPN]
- 0.812 Inches Nominal
- Socket Hole Width [AGPP]
- 0.594 Inches Nominal
- Socket Accommodated Quantity [AGPD]
- 1
- Socket Diameter [ABXP]
- 0.469 Inches Nominal
- Turnbutton Overall Height [CQQP]
- 1.125 Inches Nominal
- Turnbutton Socket Style [AGPK]
- Socket
- Turnbutton Stud Style [AGPE]
- Prong
- Turnbutton Clinch Plate Style [AGPQ]
- Clinch Plate
- Surface Treatment [SFTT]
- Nickel Clinch Plate And Enamel Clinch Plate
- Surface Treatment [SFTT]
- Nickel Stud And Enamel Stud
DLA Procurement Analysis 5325-00-433-0065
Management Data 5325-00-433-0065
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-433-0065
Freight Information 5325-00-433-0065
5325-00-433-0065 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-433-0065 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-433-0065 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-433-0065 is not classified as a special type of cargo when transported by water. 5325-00-433-0065 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-433-0065
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
