5325-00-432-9810
Turnlock Fastener Receptacle
5325004329810 004329810 2500-18F-C3C 8438295-2 RF5 GR520D-10 50-008RF5
A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action. View more Turnlock Fastener Receptacle
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
39
39
NATO Data Quality
Marketplace 5325-00-432-9810
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
RF-5 RECEPTACLE,TURNLOCK FASTENER 78 EA NS
8438295-2 RECEPTACLE,TURNLOCK FASTENER 163 EA NS
RF5 RECEPTACLE,TURNLOCK FASTENER 14 EA NS
2500-18F-C3C RECEPTACLE,TURNLOCK FASTENER RQST NS
RF5 RECEPTACLE,TURNLOCK FASTENER RQST NS
8438295-2 RECEPTACLE,TURNLOCK FASTENER 3 EA NS
Updated Every Day 5325-00-432-9810 RQST NE
Updated Every Day 5325-00-432-9810 RQST
Updated Every Day 5325-00-432-9810 RQST NE
Related Documents 5325-00-432-9810 5+ Documents (More...)
2500-18F-C3C 8438295-2 RF5 50-008RF5 GR520D-10 A threaded or tempered item used to secure the STUD,
RF5 RECEPTACLE,TURNLOCK FASTENER 6 EA NS Request Quotation 50-008RF5 RECEPTACLE,TURNLOCK FASTENER 9 EA
RF5 RECEPTACLE,TURNLOCK FASTENER 10 EA NS Request Quotation Subscribe to View Vendor Details... 2500-
RF5 RECEPTACLE,TURNLOCK FASTENER 6 EA NS Request Quotation 50-008RF5 RECEPTACLE,TURNLOCK FASTENER 9 EA
RF5 RECEPTACLE,TURNLOCK FASTENER 10 EA NS Request Quotation Subscribe to View Vendor Details... 2500-
RF5 REACTOR 44 EA NS Request Quotation Subscribe to View Vendor Details...
RF5 REACTOR 14 EA NS Request Quotation Subscribe to View Vendor Details...
RF5 REACTOR 6 EA NS Request Quotation Subscribe to View Vendor Details...
RF5 REACTOR 14 EA NS Request Quotation Subscribe to View Vendor Details...
RF5 REACTOR 6 EA NS Request Quotation Subscribe to View Vendor Details...
Account Upgrade 7025-01-581-3383Automatic Data Processing Printer Accessory Kit7025015813383 015813383 RF5
-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-
2092 , RF5-2092 RQST NE Updated Every Day 7025- 01-581-3383 RQST Updated Every Day 7025- 01-581-3383
-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-2092 ,RF5-
2092 , RF5-2092 RQST NE Updated Every Day 7025- 01-581-3383 RQST Updated Every Day 7025- 01-581-3383
how to enable JavaScript in your web browser . 5365-99-103-8738Sleeve Spacer5365991038738 991038738 RF5
-5 RF5-5 EYELET,TURNLOCK FASTENER 70 EA NS Request Quotation Subscribe to View Vendor Details...
RF5-5 EYELET,TURNLOCK FASTENER 70 EA NS Request Quotation Subscribe to View Vendor Details...
-5 RF5-5 EYELET,TURNLOCK FASTENER 70 EA NS Request Quotation Subscribe to View Vendor Details...
RF5-5 EYELET,TURNLOCK FASTENER 70 EA NS Request Quotation Subscribe to View Vendor Details...
RF5 RECEPTACLE,TURNLOCK FASTENER 44 EA NS Request Quotation Subscribe to View Vendor Details...
RF5 RECEPTACLE,TURNLOCK FASTENER 14 EA NS Request Quotation Subscribe to View Vendor Details...
RF5 RECEPTACLE,TURNLOCK FASTENER 6 EA NS Request Quotation Subscribe to View Vendor Details... 50-008RF5
RF5 RECEPTACLE,TURNLOCK FASTENER 14 EA NS Request Quotation Subscribe to View Vendor Details...
RF5 RECEPTACLE,TURNLOCK FASTENER 6 EA NS Request Quotation Subscribe to View Vendor Details... 50-008RF5
Restrictions 5325-00-432-9810
5325-00-432-9810 is a Turnlock Fastener Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-00-432-9810
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-432-9810
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BDCT
- NASA (G860)
- Effective Date:
- 1 Apr 1997
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Slovenia (WL01)
- Effective Date:
- 1 Mar 2006
- Poland (WP01)
- Effective Date:
- 1 Jan 2005
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- South Africa (ZD01)
- Effective Date:
- 1 Oct 2009
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Dec 2010
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Feb 2014
Approved Sources 5325-00-432-9810
- Part Number
- Manufacturer
- Status
- 2500-18F-C3C
- Manufacturer
- 72794 - Southco Inc (Active)
- Primary Buy
- Primary Buy
- RF5
- 72794 - Southco Inc (Active)
- Original Design
- Original Design
- 8438295-2
- 19204 - Army, United States Department Of (Active)
- Secondary Buy
- Secondary Buy
- GR520D-10
- 26512 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 50-008RF5
- 97499 - Bell Textron Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete

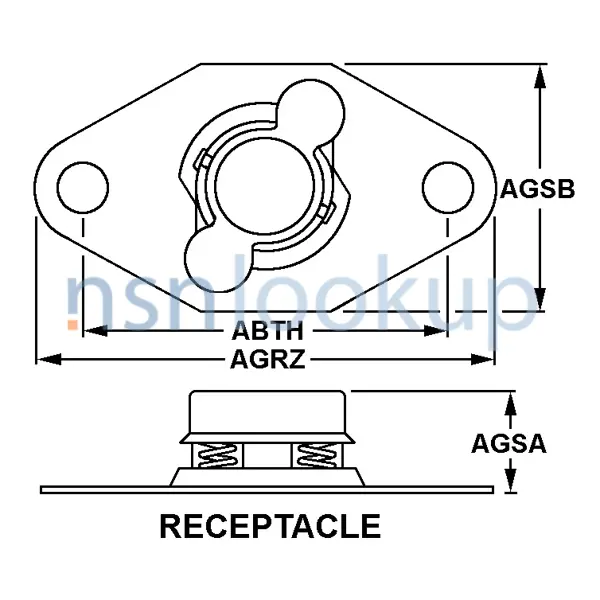

Datasheet 5325-00-432-9810
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Steel Cap
- Material [MATT]
- Steel Ejector Spring
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Turnlock Receptacle Style [AGRY]
- Receptacle
- Center To Center Distance Between Mounting Holes [ABTH]
- 1.000 Inches Nominal
- Receptacle Overall Length [AGRZ]
- 1.438 Inches Nominal
- Receptacle Height [AGSA]
- 0.485 Inches Nominal
- Receptacle Width [AGSB]
- 0.312 Inches Nominal
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Turnlock Mounting Hole Diameter [CSYB]
- 0.261 Inches Nominal
- Features Provided [CBBL]
- Protective Cap
Weapon Systems (WSDC) 5325-00-432-9810
DLA Procurement Analysis 5325-00-432-9810
- Last Stock Position:
- 709 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-432-9810
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5325-00-432-9810
5325-14-269-6740 5325-14-280-9026 5325-12-303-3865 5325-12-303-3825 5325-14-478-2815 5325-12-303-3862 5325-33-204-6912 5325-14-372-7212 5325-99-305-3640 5325-14-210-3658 5325-19-000-0661 5325-14-390-0034 5325-14-537-0780 5325-21-900-1648 5325-14-441-7188 5325-17-110-8640 5325-14-536-8816 5325-99-796-2381
Freight Information 5325-00-432-9810
5325-00-432-9810 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-432-9810 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-432-9810 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-432-9810 is not classified as a special type of cargo when transported by water. 5325-00-432-9810 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-432-9810
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
