5325-00-391-7670
Positive Lock Receptacle
5325003917670 003917670 AR26-2 AR26
A platelike item used to secure the STUD, POSITIVE LOCK by means of spring jaws which grip the circumferential groove of the stud. It may incorporate a quick release for the stud which may be actuated by a screwhead, thumbscrew or remote control. View more Positive Lock Receptacle
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
May 2023
May 2023
NATO Update Count
13
13
NATO Data Quality
Marketplace 5325-00-391-7670
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-391-7670 5+ Documents (More...)
https//www.nsnlookup.com
/fsg-53/fsc-5325/us
/fsg-53/fsc-5325/us
5325-00-391-7670 Positive Lock Receptacle 5325003917670
AR26-2 AR26 A platelike item used to secure the STUD, POSITIVE LOCK by means of spring jaws which grip
AR26-2 RECEPTACLE,POSITIVE LOCK 1 EA NS Request Quotation Subscribe to View Vendor Details...
AR26-2 RECEPTACLE,POSITIVE LOCK 50 EA NS Request Quotation Subscribe to View Vendor Details...
AR26-2 RECEPTACLE,POSITIVE LOCK 1 EA NS Request Quotation Subscribe to View Vendor Details...
AR26-2 RECEPTACLE,POSITIVE LOCK 50 EA NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com
/fsg-53/fsc-5325/us
/fsg-53/fsc-5325/us
5325-01-241-6534 Positive Lock Receptacle 5325012416534
enable JavaScript in your web browser . 5325-01-241-6534Positive Lock Receptacle5325012416534 012416534 AR26
https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-241-6534 Positive Lock Receptacle 5325012416534 AR26
Positive Lock Receptacle 5325003917670 Quotation AR26-01 MICROCIRCUIT,DIGITAL 1 EA NS Request https
https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-241-6534 Positive Lock Receptacle 5325012416534 AR26
Positive Lock Receptacle 5325003917670 Quotation AR26-01 MICROCIRCUIT,DIGITAL 1 EA NS Request https
JavaScript in your web browser . 9905-14-504-7697Instruction Tag9905145047697 145047697 355A00-0500-AR26
Documents ( More... ) https//www.nsnlookup.com https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-391-7670
Positive Lock Receptacle 5325003917670 Request Quotation Subscribe to View Vendor Details... https
Documents ( More... ) https//www.nsnlookup.com https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-391-7670
Positive Lock Receptacle 5325003917670 Request Quotation Subscribe to View Vendor Details... https
how to enable JavaScript in your web browser . 6130-15-213-2018Power Supply6130152132018 152132018 AR26
Documents ( More... ) https//www.nsnlookup.com https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-391-7670
Positive Lock Receptacle 5325003917670 AR26-01 MICROCIRCUIT,DIGITAL 1 EA NS Request https https
Documents ( More... ) https//www.nsnlookup.com https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-391-7670
Positive Lock Receptacle 5325003917670 AR26-01 MICROCIRCUIT,DIGITAL 1 EA NS Request https https
$1 a day Upgrade your Account Upgrade 5962-01-019-2257Digital Microcircuit5962010192257 010192257 AR26
-01G AR26-01 LM123K B04674976 99092115 101863-1 A microcircuit specifically designed to generate, modify
AR26-01G MICROCIRCUIT,DIGITAL 1 EA NS Request Quotation AR26-01 MICROCIRCUIT,DIGITAL 1 EA NS Request
-01G AR26-01 LM123K B04674976 99092115 101863-1 A microcircuit specifically designed to generate, modify
AR26-01G MICROCIRCUIT,DIGITAL 1 EA NS Request Quotation AR26-01 MICROCIRCUIT,DIGITAL 1 EA NS Request
Restrictions 5325-00-391-7670
5325-00-391-7670 is a Positive Lock Receptacle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-00-391-7670
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5325-00-391-7670
- Part Number
- Manufacturer
- Status
- AR26-2
- Manufacturer
- 80477 - Adams Rite Aerospace, Inc (Active)
- Primary Buy
- Primary Buy
- AR26
- 80477 - Adams Rite Aerospace, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-00-391-7670
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400

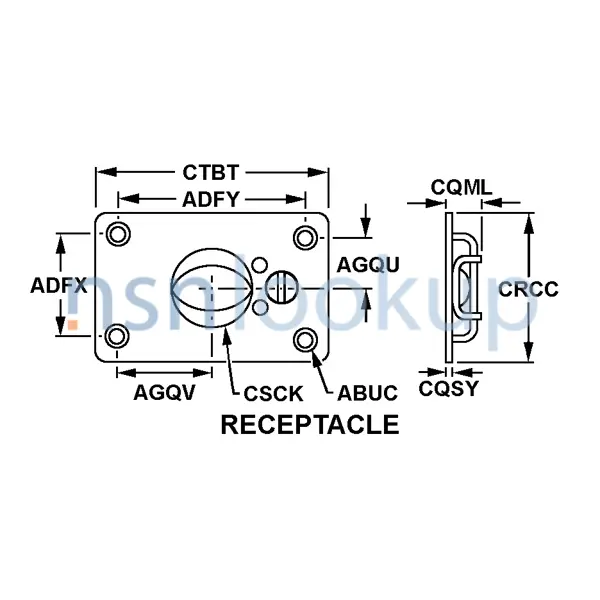

- Distance From Stud Hole Center To Mounting Hole Center Along Length [AGQV]
- 1.120 Inches Nominal
- Distance From Stud Hole Center To Mounting Hole Center [AGQU]
- 0.625 Inches Nominal
- Center To Center Distance Between Mounting Holes Along Width [ADFX]
- 1.250 Inches Nominal
- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 1.875 Inches Nominal
- Mounting Hole Diameter [ABUC]
- 0.128 Inches Nominal
- Material [MATT]
- Aluminum Alloy 2024 Barrel
- Positive Lock Receptacle Length [CTBT]
- 2.250 Inches Nominal
- Positive Lock Receptacle Height [CQML]
- 0.260 Inches Nominal
- Positive Lock Receptacle Width [CRCC]
- 1.620 Inches Nominal
- Positive Lock Receptacle Style [AGQS]
- Receptacle
- Receptacle Material Thickness [CQSY]
- 0.060 Inches Nominal
- Receptacle Hole Diameter [CSCK]
- 0.187 Inches Minimum And 0.191 Inches Maximum
- Surface Treatment [SFTT]
- Anodize Barrel
DLA Procurement Analysis 5325-00-391-7670
Management Data 5325-00-391-7670
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Defense Logistics Agency (DS)
- I
- X
- Formerly 5340
- X
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5325-00-391-7670
5325-14-465-5109 5325-14-474-7751 5325-00-851-5313 5325-01-369-0103 5325-00-898-6807 5325-01-580-4340 5325-01-607-2774 5325-01-542-8949 5325-99-912-9123 5325-22-120-2324 5325-14-508-6945 5325-14-506-6116 5325-01-239-3424 5325-00-480-8776 5325-01-690-2332 5325-01-345-0090 5325-01-499-4529 5325-01-528-4659
Freight Information 5325-00-391-7670
5325-00-391-7670 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093880. A Sub NMFC of X. It has a NMFC Description of CATCHES/LATCHES METAL NOI. 5325-00-391-7670 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49120 which rates the freight between FCL and LCL. 5325-00-391-7670 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-391-7670 is not classified as a special type of cargo when transported by water. 5325-00-391-7670 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
