5325-00-349-8554
Turnlock Fastener Assembly
5325003498554 003498554 580R869H12 6741FSS2528-7 41614-12
An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action. View more Turnlock Fastener Assembly
January 2023
13
Marketplace 5325-00-349-8554
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-349-8554 1+ Documents (More...)
(Identification) 1/4 NSN 5325-00-349-8554 (Identification) 2/4 NSN 5325-00-349-8554 (Identification
RQST NE Updated Every Day 5325-00-349-8554 RQST Updated Every Day 5325-00-349-8554 RQST NE Related Documents
Restrictions 5325-00-349-8554
5325-00-349-8554 is a Turnlock Fastener Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-00-349-8554
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-349-8554
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-349-8554
- Part Number
- Manufacturer
- Status
- 580R869H12
- Manufacturer
- 48306 - Northrop Grumman Support Services (Active)
- Primary Buy
- Primary Buy
- 580R869H12
- 97942 - Northrop Grumman Systems Corporation (Active)
- Original Design
- Original Design
- 6741FSS2528-7
- 06540 - New Haven Mfg Corp Amatom Electronic (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 41614-12
- 54041 - Baytron Systems Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-00-349-8554
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Turnlock Stud Shank Style [AGQY]
- Stud Shank
- Grip Length [AATQ]
- 0.586 Inches Nominal
- Stud Shank Major Diameter [CSGB]
- 0.332 Inches Nominal
- Turnlock Stud Head Style [AGRD]
- Stud Head
- Extended Washer Diameter [AATC]
- 0.500 Inches Nominal
- Width Across Flats [ASDB]
- 0.188 Inches Nominal
- Stud Head Height [CQYY]
- 0.516 Inches Nominal
- Stud Assembly Style [AGRE]
- Stud Assembly
- Distance From Engaging Member To Largest Bearing Surface Of Head [AGRF]
- 0.828 Inches Nominal
- Eyelet Outside Diameter [AGRH]
- 0.500 Inches Nominal
- Eyelet Length [AGRK]
- 0.516 Inches Nominal
- Stud Thread Size And Series/Type Designator [ALBJ]
- 0.225-28 Unf
- Turnlock Receptacle Style [AGRY]

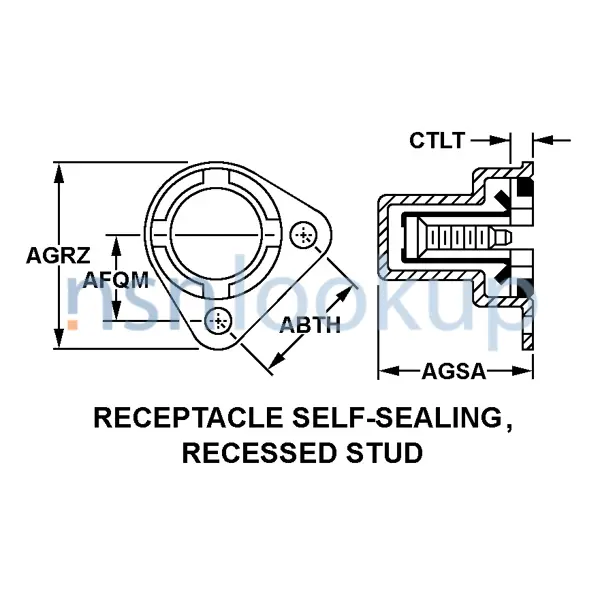

- Receptacle Self-Sealing, Recessed Stud
- Receptacle Height [AGSA]
- 0.828 Inches Nominal
- Drive Type [AKCV]
- Slotted
