5325-00-337-8804
Turnlock Fastener Assembly
5325003378804 003378804 43-1-14-0
An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action. View more Turnlock Fastener Assembly
November 2023
6
Marketplace 5325-00-337-8804
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-337-8804 1+ Documents (More...)
) 3/5 NSN 5325-00-337-8804 (Identification) 4/5 NSN 5325-00-337-8804 (Identification) 5/5 - - - - - 1
Updated Every Day 5325-00-337-8804 RQST Updated Every Day 5325-00-337-8804 RQST NE Related Documents
Restrictions 5325-00-337-8804
5325-00-337-8804 is a Turnlock Fastener Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-337-8804
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-337-8804
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- Spain (YB01)
- Effective Date:
- 1 Oct 1998
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Mar 1994
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1997
Approved Sources 5325-00-337-8804
- Part Number
- Manufacturer
- Status
- 43-1-14-0
- Manufacturer
- 94222 - Southco Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-00-337-8804
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Turnlock Stud Shank Style [AGQY]
- Stud Shank
- Grip Length [AATQ]
- 0.344 Inches Nominal
- Stud Shank Major Diameter [CSGB]
- 0.234 Inches Nominal
- Turnlock Stud Head Style [AGRD]
- Flat Fillister
- Diameter [ABMZ]
- 0.344 Inches Nominal
- Stud Head Height [CQYY]
- 0.094 Inches Nominal
- Stud Assembly Style [AGRE]
- Stud Assembly
- Distance From Engaging Member To Largest Bearing Surface Of Head [AGRF]
- 0.719 Inches Nominal
- Eyelet Outside Diameter [AGRH]
- 0.500 Inches Nominal
- Stud Diameter [AGRJ]
- 0.094 Inches Nominal
- Eyelet Length [AGRK]
- 0.500 Inches Nominal

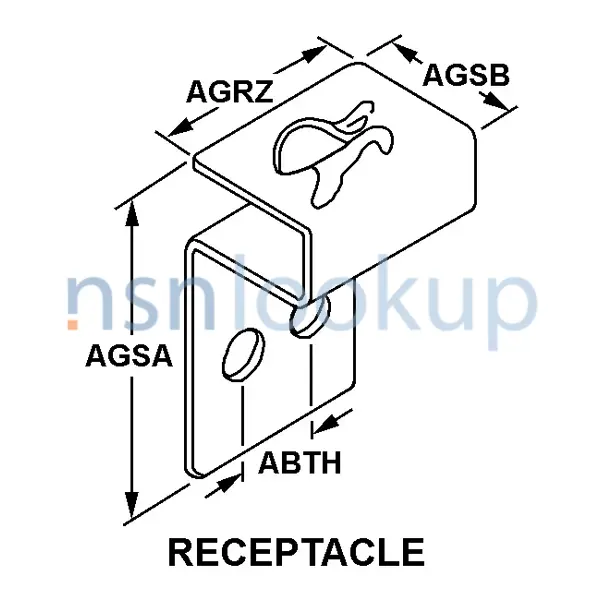

- Turnlock Receptacle Style [AGRY]
- Receptacle
- Center To Center Distance Between Mounting Holes [ABTH]
- 0.906 Inches Nominal
- Receptacle Overall Length [AGRZ]
- 1.156 Inches Nominal
- Receptacle Height [AGSA]
- 0.781 Inches Nominal
- Receptacle Width [AGSB]
- 0.531 Inches Nominal
- Mounting Style [ADER]
- Plain W/Mounting Hole
- Turnlock Mounting Hole Diameter [CSYB]
- 0.562 Inches Nominal
- Drive Type [AKCV]
- Slotted
- Material Accommodated Thickness [AGSM]
- 0.234 Inches Nominal
