5325-00-321-4269
Turnlock Fastener Ejector Spring
5325003214269 003214269 2600ES 12Z12120-74 2600-ES 1126507 214A830-1 1126503 5325PL2022910
A leaf-spring type item made of elastic material, designed to be fastened to a panel or RECEPTACLE, TURNLOCK FASTENER, and used to eject a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER when retracted from an inserted position. View more Turnlock Fastener Ejector Spring
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
42
42
NATO Data Quality
Marketplace 5325-00-321-4269
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
1126503 EJECTOR SPRING,TURNLOCK FASTENER 56 EA NS
1126507 EJECTOR SPRING,TURNLOCK FASTENER 1250 EA NS
2600-ES EJECTOR SPRING,TURNLOCK FASTENER 84 EA NS
2600ES EJECTOR SPRING,TURNLOCK FASTENER 60 EA NS
1126507 EJECTOR SPRING,TURNLOCK FASTENER 103 EA NS
2600ES EJECTOR SPRING,TURNLOCK FASTENER 103 EA NS
2600ES EJECTOR SPRING,TURNLOCK FASTENER 5 EA NS
12Z12120-74 EJECTOR SPRING,TURNLOCK FASTENER 5 EA NS
5325-00-321-4269 EJECTOR SPRING,TURNLOCK FASTENER 5 EA NS
1126503 EJECTOR SPRING,TURNLOCK FASTENER 5 EA NS
2600-ES EJECTOR SPRING,TURNLOCK FASTENER 5 EA NS
Updated Every Day 5325-00-321-4269 RQST NE
Updated Every Day 5325-00-321-4269 RQST
Updated Every Day 5325-00-321-4269 RQST NE
Related Documents 5325-00-321-4269 5+ Documents (More...)
2600ES 12Z12120-74 2600-ES 1126507 214A830-1 1126503 5325PL2022910 A leaf-spring type item made of elastic
1250 EA NS Request Quotation 2600-ES EJECTOR SPRING,TURNLOCK FASTENER 84 EA NS Request Quotation 2600ES
Quotation 1126507 EJECTOR SPRING 102 EA NS Request Quotation 2600-ES EJECTOR SPRING 4 EA NS Request
1250 EA NS Request Quotation 2600-ES EJECTOR SPRING,TURNLOCK FASTENER 84 EA NS Request Quotation 2600ES
Quotation 1126507 EJECTOR SPRING 102 EA NS Request Quotation 2600-ES EJECTOR SPRING 4 EA NS Request
-53/fsc-5325/us 5325-01-134-5471 Turnlock Fastener Ejector Spring 011345471 5325-01-184-0370 5325-00-321-4269
3806 5325-12-305-9334 5325-14-210-3650 5325-00-075 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-321-4269
Turnlock Fastener Ejector Spring 003214269 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269 https
3806 5325-12-305-9334 5325-14-210-3650 5325-00-075 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-321-4269
Turnlock Fastener Ejector Spring 003214269 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269 https
-53/fsc-5325/us 5325-01-134-5471 Turnlock Fastener Ejector Spring 011345471 5325-01-184-0370 5325-00-321-4269
3806 5325-12-305-9334 5325-14-210-3650 5325-00-075 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-321-4269
Turnlock Fastener Ejector Spring 003214269 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269 https
3806 5325-12-305-9334 5325-14-210-3650 5325-00-075 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-321-4269
Turnlock Fastener Ejector Spring 003214269 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269 https
Account Upgrade 5325-01-184-0370Turnlock Fastener Ejector Spring5325011840370 011840370 HS4499-1 2600-ES
EJECTOR SPRING,TURNLOCK FASTENER 1 EA NS Request Quotation Subscribe to View Vendor Details... 2600ES
HS4499-1 EJECTOR SPRING 11 EA NS Request Quotation Subscribe to View Vendor Details... 2600ES EJECTOR
EJECTOR SPRING,TURNLOCK FASTENER 1 EA NS Request Quotation Subscribe to View Vendor Details... 2600ES
HS4499-1 EJECTOR SPRING 11 EA NS Request Quotation Subscribe to View Vendor Details... 2600ES EJECTOR
5325-01-134-5471 5325-22-618-5069 -012-0433 https 210-3650 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269
-134-5471 5325-22-618-5069 https 305-9334 5325-14-210-3650 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269
Turnlock Fastener Ejector Spring Spring 991386065 210-3650 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269
-134-5471 5325-22-618-5069 https 305-9334 5325-14-210-3650 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269
Turnlock Fastener Ejector Spring Spring 991386065 210-3650 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269
Restrictions 5325-00-321-4269
5325-00-321-4269 is a Turnlock Fastener Ejector Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-321-4269
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Brazil (YA01)
- Effective Date:
- 1 Oct 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Dec 2007
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Oct 2001
Approved Sources 5325-00-321-4269
- Part Number
- Manufacturer
- Status
- 2600ES
- Manufacturer
- 71286 - Howmet Global Fastening Systems Inc (Active)
- Primary Buy
- Primary Buy
- 12Z12120-74
- 94135 - Naval Ordnance Standards (Active)
- Secondary Buy
- Secondary Buy
- 2600-ES
- D0680 - Fairchild Fasteners Europe - Camloc (Active)
- Secondary Buy
- Secondary Buy
- 1126507
- 60119 - Monadnock Company, The (Active)
- Secondary Buy
- Secondary Buy
- 1126503
- 60119 - Monadnock Company, The (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5325PL2022910
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 214A830-1
- 03640 - Lockheed Martin Corporation (Active)
- Vendor Drawing
- Vendor Drawing

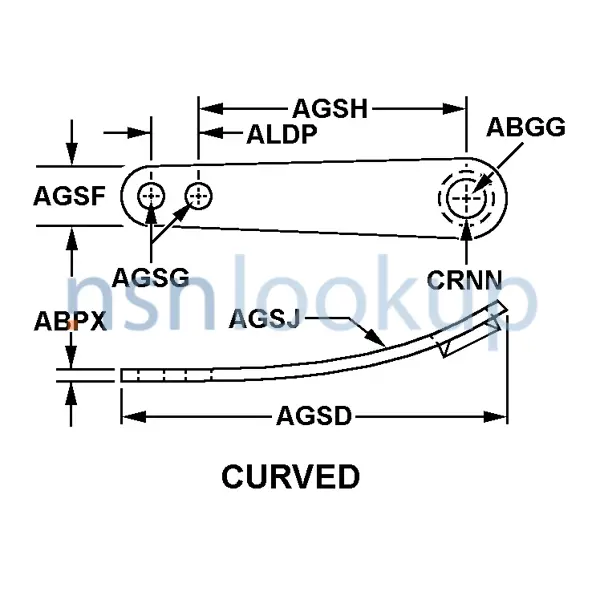

Datasheet 5325-00-321-4269
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Distance From Grommet Hole Center To Mounting Hole Center [AGSH]
- 2.500 Inches Nominal
- Ejector Spring Hole Diameter [CRNN]
- 0.312 Inches Nominal
- Ejector Spring Style [AGSC]
- Curved
- Bend Radius [AGSJ]
- 3.000 Inches Nominal
- Center To Center Distance Between Spring Mounting Holes [ALDP]
- 0.375 Inches Nominal
- Material Thickness [ABPX]
- 0.018 Inches Nominal
- Material [MATT]
- Steel Overall
- Radius [ABGG]
- 0.281 Inches Nominal
- Spring Mounting Hole Diameter [AGSG]
- 0.141 Inches Nominal
- Spring Overall Length [AGSD]
- 3.375 Inches Nominal
- Spring Width [AGSF]
- 0.438 Nominal Inches
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
Weapon Systems (WSDC) 5325-00-321-4269
DLA Procurement Analysis 5325-00-321-4269
- Last Stock Position:
- 3212 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-321-4269
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Oct 2022
- US Coast Guard (GP)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- EA
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5325-00-321-4269
5325-22-618-5085 5325-01-391-7727 5325-00-290-2909 5325-14-287-4315 5325-00-411-1208 5325-01-569-1867 5325-01-360-0513 5325-99-234-3863 5325-00-155-5271 5325-00-111-3806 5325-12-305-9334 5325-14-210-3650 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269 5325-01-134-5471 5325-22-618-5069 5325-27-012-0433
Freight Information 5325-00-321-4269
5325-00-321-4269 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-321-4269 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-321-4269 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-321-4269 is not classified as a special type of cargo when transported by water. 5325-00-321-4269 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-321-4269
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5325-00-321-4269 49 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623FBCCR
- 20 Aug 2023
- Subscribe
- 6915
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FBCCR
- 20 Aug 2023
- Subscribe
- 6915
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB7EN
- 14 Jul 2023
- Subscribe
- 978
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB7EN
- 14 Jul 2023
- Subscribe
- 978
- Subscribe
- Subscribe
- Subscribe
- SPE4A623F047V
- 12 Apr 2023
- Subscribe
- 5680
- Subscribe
- Subscribe
- Subscribe
- SPE4A623F047V
- 12 Apr 2023
- Subscribe
- 5680
- Subscribe
- Subscribe
- Subscribe
- SPE4A622F3038
- 18 Nov 2021
- Subscribe
- 3135
- Subscribe
- Subscribe
- Subscribe
- SPE4A622F3038
- 18 Nov 2021
- Subscribe
- 3135
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F294G
- 15 Jul 2021
- Subscribe
- 3135
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F294G
- 15 Jul 2021
- Subscribe
- 3135
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F066T
- 16 Apr 2021
- Subscribe
- 3135
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F066T
- 16 Apr 2021
- Subscribe
- 3135
- Subscribe
- Subscribe
- Subscribe
- SPE5E418V9981
- 21 Aug 2018
- Subscribe
- 7119
- Subscribe
- Subscribe
- Subscribe
- SPE5E817V4503
- 17 Mar 2017
- Subscribe
- 39
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120091
- 07 Feb 2017
- Subscribe
- 1918
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120090
- 07 Feb 2017
- Subscribe
- 23
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120082
- 01 Dec 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120083
- 01 Dec 2016
- Subscribe
- 751
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120084
- 01 Dec 2016
- Subscribe
- 1148
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120080
- 08 Nov 2016
- Subscribe
- 1583
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120076
- 12 Sep 2016
- Subscribe
- 1455
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120075
- 12 Sep 2016
- Subscribe
- 308
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120072
- 23 Aug 2016
- Subscribe
- 520
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120073
- 23 Aug 2016
- Subscribe
- 660
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120067
- 21 Jun 2016
- Subscribe
- 3088
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120062
- 27 Apr 2016
- Subscribe
- 161
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120057
- 31 Mar 2016
- Subscribe
- 556
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120056
- 30 Mar 2016
- Subscribe
- 526
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120058
- 30 Mar 2016
- Subscribe
- 1316
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120055
- 30 Mar 2016
- Subscribe
- 25
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120054
- 07 Mar 2016
- Subscribe
- 1577
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120053
- 07 Mar 2016
- Subscribe
- 84
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120047
- 11 Dec 2015
- Subscribe
- 119
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120048
- 11 Dec 2015
- Subscribe
- 829
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120045
- 19 Nov 2015
- Subscribe
- 1818
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120044
- 19 Nov 2015
- Subscribe
- 59
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120040
- 02 Oct 2015
- Subscribe
- 1007
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120039
- 02 Oct 2015
- Subscribe
- 121
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120034
- 30 Apr 2015
- Subscribe
- 1393
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120033
- 30 Apr 2015
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120032
- 29 Jan 2015
- Subscribe
- 959
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120031
- 29 Jan 2015
- Subscribe
- 218
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120030
- 16 Dec 2014
- Subscribe
- 1651
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120029
- 16 Dec 2014
- Subscribe
- 61
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120025
- 02 Oct 2014
- Subscribe
- 2075
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120024
- 02 Oct 2014
- Subscribe
- 105
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120023
- 02 Oct 2014
- Subscribe
- 105
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120021
- 30 Apr 2014
- Subscribe
- 6768
- Subscribe
- Subscribe
- Subscribe
- SPM5AY12D00120020
- 30 Apr 2014
- Subscribe
- 48
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5325-00-321-4269 April 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
