5325-00-303-1230
Turnlock Fastener Stud Assembly
5325003031230 003031230 P325-51 BACS21DD3 D1400-6C1 3500-325-51-C3C P3 1-4-51
A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER. View more Turnlock Fastener Stud Assembly
November 2023
12
Marketplace 5325-00-303-1230
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-303-1230 2+ Documents (More...)
(Identification) 1/2 NSN 5325-00-303-1230 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5325-00-303-1230 RQST Updated Every Day 5325-00-303-1230 RQST NE Related Documents
Turnlock Fastener Stud Assembly 003031230 5325-00-303-1230Turnlock Fastener Stud Assembly5325003031230
003031230 P325-51 BACS21DD3 D1400-6C1 3500-325 Restrictions Approved Sources Datasheet Management https
Restrictions 5325-00-303-1230
5325-00-303-1230 is a Turnlock Fastener Stud Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-303-1230
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-303-1230
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5325-00-303-1230
- Part Number
- Manufacturer
- Status
- D1400-6C1
- Manufacturer
- 17446 - Huck International, Inc (Active)
- Primary Buy
- Primary Buy
- 3500-325-51-C3C
- 72794 - Southco Inc (Active)
- Primary Buy
- Primary Buy
- P3 1-4-51
- 72794 - Southco Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- P325-51
- 72794 - Southco Inc (Active)
- Advisory Reference
- Advisory Reference
- BACS21DD3
- 81205 - The Boeing Company (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5325-00-303-1230
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Distance From Engaging Member To Largest Bearing Surface Of Head [AGRF]
- 0.157 Inches Nominal
- Drive Type [AKCV]
- Knurled Or Slotted
- Diameter [ABMZ]
- 0.365 Inches Minimum And 0.395 Inches Maximum
- Eyelet Length [AGRK]
- 0.136 Inches Nominal
- Eyelet Outside Diameter [AGRH]
- 0.365 Inches Minimum And 0.395 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-S-8695 Mil Spec Single Material Response Stud
- Material [MATT]
- Steel Comp 4037 Stud Or Steel Comp 8640 Stud
- Material Accommodated Thickness [AGSM]
- 0.125 Inches Nominal
- Securing Device Type [ADQB]
- Eyelet

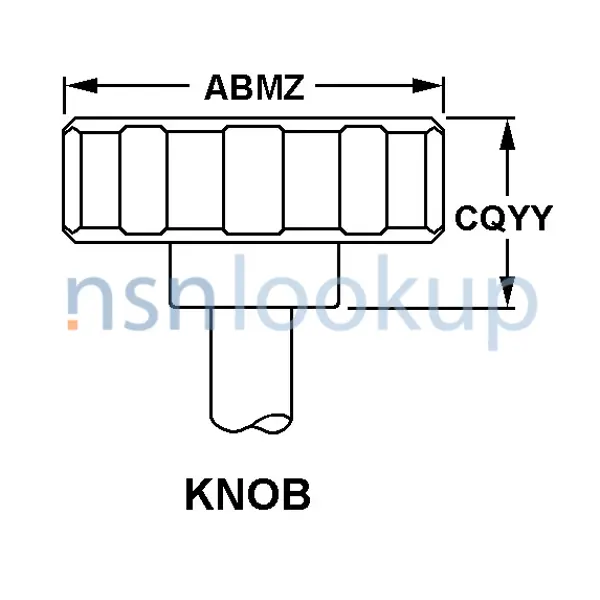

- Turnlock Stud Head Style [AGRD]
- Knob
- Stud Assembly Style [AGRE]
- Stud Assembly
- Stud Diameter [AGRJ]
- 0.193 Inches Minimum And 0.203 Inches Maximum
- Stud Head Height [CQYY]
- 0.305 Inches Nominal
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 2 Class 2 Fed Spec Single Treatment Response Stud
- Surface Treatment [SFTT]
- Chromate Stud And Chromate Stud
