5325-00-286-3119
Turnlock Fastener Ejector Spring
5325002863119 002863119 98-5ES
A leaf-spring type item made of elastic material, designed to be fastened to a panel or RECEPTACLE, TURNLOCK FASTENER, and used to eject a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER when retracted from an inserted position. View more Turnlock Fastener Ejector Spring
January 2023
10
Marketplace 5325-00-286-3119
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-286-3119 4+ Documents (More...)
5325-00-286-3119 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-286-3119
Turnlock Fastener Ejector Spring 002863119 United States (US) 4. 5325-00-286-3119 Marketplace Restrictions
Turnlock Fastener Ejector Spring 002863119 : X | HMIC : N | PMIC : U | EDC: | ADPEC : 5325 https
-618-5085 5325-01-391-7727 5325-00-290-2909 https Zinc Overall NATO Stock Numbers Related to 5325-00-286-3119
Turnlock Fastener Ejector Spring 002863119 Overall NATO Stock Numbers Related to 5325-00-286 https
Turnlock Fastener Ejector Spring 002863119 -53/fsc-5325/us 5325-01-134-5471 Turnlock Fastener Ejector
Restrictions 5325-00-286-3119
5325-00-286-3119 is a Turnlock Fastener Ejector Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-286-3119
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-286-3119
- Part Number
- Manufacturer
- Status
- 98-5ES
- Manufacturer
- 78189 - Itw Shakeproof Automotive Products (Obsolete)
- Original Design
- Original Design
Datasheet 5325-00-286-3119
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Ejector Spring Hole Diameter [CRNN]
- 0.500 Inches Nominal

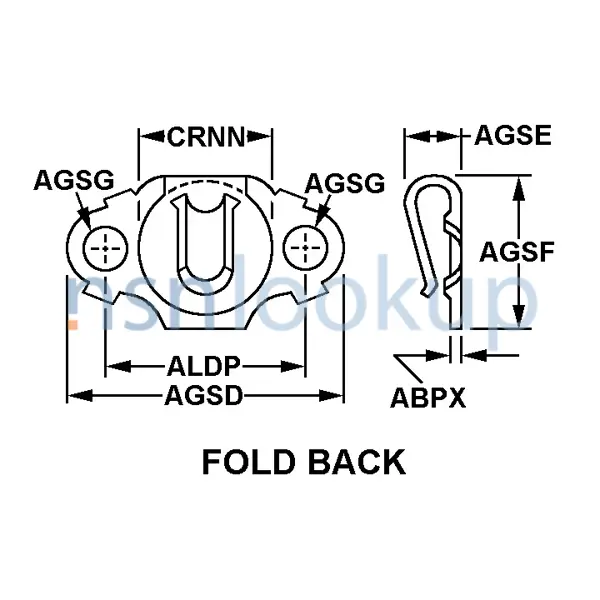

- Ejector Spring Style [AGSC]
- Fold Back
- Center To Center Distance Between Spring Mounting Holes [ALDP]
- 1.000 Inches Nominal
- Material Thickness [ABPX]
- 0.012 Inches Nominal
- Material [MATT]
- Steel Overall
- Spring Height [AGSE]
- 0.312 Inches Nominal
- Spring Mounting Hole Diameter [AGSG]
- 0.266 Inches Nominal
- Spring Overall Length [AGSD]
- 1.375 Inches Nominal
- Spring Width [AGSF]
- 0.938 Inches Nominal
- Surface Treatment [SFTT]
- Cadmium Overall Or Zinc Overall
NATO Stock Numbers Related to 5325-00-286-3119
Freight Information 5325-00-286-3119
5325-00-286-3119 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-286-3119 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5325-00-286-3119 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-286-3119 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-286-3119 is not classified as a special type of cargo when transported by water. 5325-00-286-3119 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
