5325-00-285-3368
Turnlock Fastener Lock Spring
5325002853368 002853368 Z100
A spring-tempered wire item used to secure a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cammed groove of the STUD, TURNLOCK FASTENER and securing it by means of its spring action. View more Turnlock Fastener Lock Spring
May 2023
13
Marketplace 5325-00-285-3368
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-285-3368 5+ Documents (More...)
Z100 LOCK SPRING,TURNLOCK FASTENER 6 EA NS Request Quotation Updated Every Day 5325-00-285-3368 RQST
NE Updated Every Day 5325-00-285-3368 RQST Updated Every Day 5325-00-285-3368 RQST NE Related Documents
) https//www.nsnlookup.com /fsg-53/fsc-5340/fr 5340-14-388-0429 Loop Clamp 5340143880429143880429 Z100
https//www.nsnlookup.com /fsg-53/fsc-5330/fr 5330-14-447-8946 Gasket 5330144478946 144478946,S32008,Z100
-005-000 Z100-005 A preformed item of rigid or semirigid material designed to partially surround other
https//www.nsnlookup.com /fsg-53/fsc-5340/fr 5340-14-357-1838 Retaining Strap 5340143571838143571838 Z100
-007-000 Z100-007 A preformed item of rigid or semirigid material designed to partially surround other
https//www.nsnlookup.com /fsg-53/fsc-5340/fr 5340-14-374-6997 Retaining Strap 5340143746997143746997 Z100
enable JavaScript in your web browser . 5930-15-067 -0805Interruttore5930150670805 150670805 ISOL-Z100
Users 5930-15-067-0805 Italy (ZR) Approved Sources 5930-15-067-0805 Part NumberManufacturerStatusISOL-Z100
Restrictions 5325-00-285-3368
5325-00-285-3368 is a Turnlock Fastener Lock Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5325-00-285-3368
- National Security Agency (DGX1)
- Effective Date:
- 1 Jan 2014
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2014
- Supplementary Collaborators:
- HDKEHX
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-285-3368
- Part Number
- Manufacturer
- Status
- Z100
- Manufacturer
- 72794 - Southco Inc (Active)
- Original Design
- Original Design
Datasheet 5325-00-285-3368
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Steel Overall
- Surface Treatment [SFTT]
- Cadmium Overall

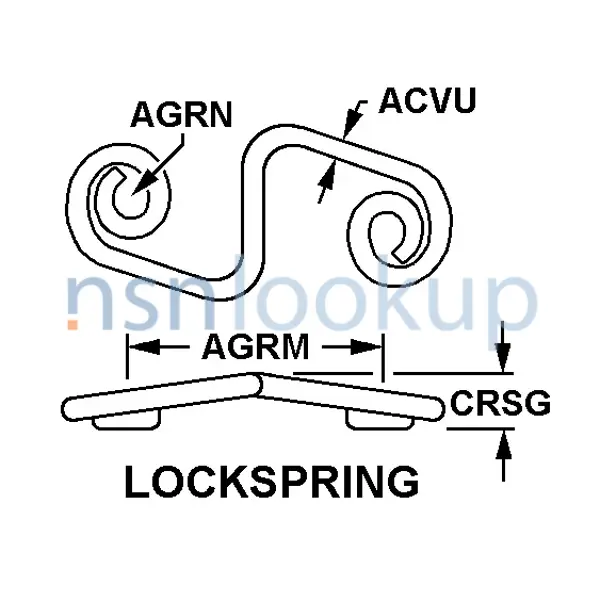

- Lockspring Style [AGRL]
- Lockspring
- Stock Diameter [ACVU]
- 0.080 Inches Nominal
- Center To Center Distance Between Eyes [AGRM]
- 1.000 Inches Nominal
- Eye Diameter [AGRN]
- 0.125 Inches Nominal
- Lockspring Overall Height [CRSG]
- 0.188 Inches Nominal
DLA Procurement Analysis 5325-00-285-3368
Management Data 5325-00-285-3368
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-285-3368
Freight Information 5325-00-285-3368
5325-00-285-3368 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-285-3368 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-285-3368 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5325-00-285-3368 is not classified as a special type of cargo when transported by water. 5325-00-285-3368 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5325-00-285-3368 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
