5325-00-281-6536
Retaining Ring
5325002816536 002816536 4F2200
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
January 2023
16
Marketplace 5325-00-281-6536
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-281-6536 3+ Documents (More...)
Retaining Ring 5325002816536 002816536,4F2200 (Identification) 1/2 NSN 5325-00-281-6536 (Identification
RQST NE Updated Every Day 5325-00-281-6536 RQST Updated Every Day 5325-00-281-6536 RQST NE Related Documents
5325-00-281-6536Retaining Ring5325002816536 002816536 4F2200 Air Discharg Filter 1730994229428994229428
Retaining Ring 5325002816536 002816536,4F2200 Upgrade www.nsnlookup.com /fsg-53/fsc-5325/us 5325 -00
/fsg-53/fsc-5340/us
5340-01-515-3842Dust And Moisture Seal Protective Plug5340015153842 015153842 820-6896275PC4F2200-34 4F2200
Air Discharg Filter 1730994229428994229428 Ring5325002816536 002816536 https//www.nsnlookup.com /fsg
Restrictions 5325-00-281-6536
5325-00-281-6536 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-00-281-6536
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-281-6536
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-281-6536
- Part Number
- Manufacturer
- Status
- 4F2200
- Manufacturer
- 11083 - Caterpillar Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-00-281-6536
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Round
- End Play Takeup [AWQF]
- 0.625 Inches Minimum And 0.875 Inches Maximum
- Material Hardness Rating [ALME]
- 42.0 Rockwell C Minimum And 50.0 Rockwell C Maximum
- Material [MATT]
- Steel
- Outside Diameter [ABKV]
- 4.677 Inches Minimum And 4.802 Inches Maximum
- Inside Diameter [AARX]
- 4.500 Inches Minimum And 4.626 Inches Maximum
- Material Diameter [AJRB]
- 0.177 Inches Nominal

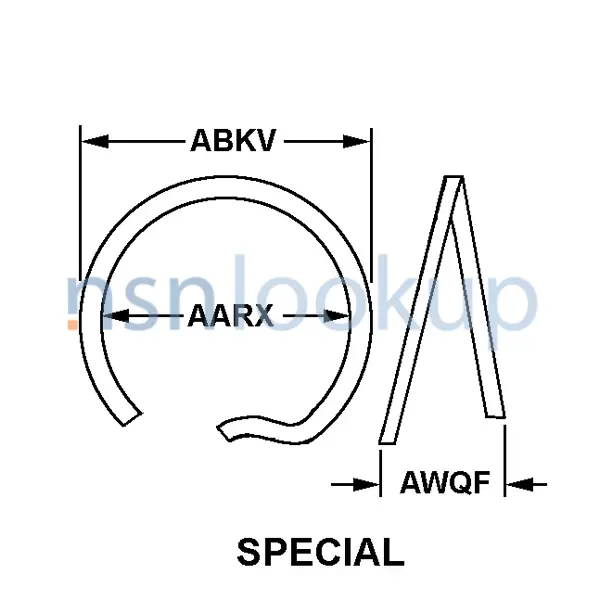

- Ring Style [ACXD]
- Special
- Usage Design [ALBY]
- External
- Strength Rating [AWQD]
- 200000.0 Pounds Per Square Inch Minimum Tensile
Similar Supply Items to 5325-00-281-6536
Freight Information 5325-00-281-6536
5325-00-281-6536 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 063520. A Sub NMFC of Z. It has a NMFC Description of WAVEGUIDE IN BOXES/CRATES. 5325-00-281-6536 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5325-00-281-6536 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5325-00-281-6536 is not classified as a special type of cargo when transported by water. 5325-00-281-6536 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
