5325-00-276-6100

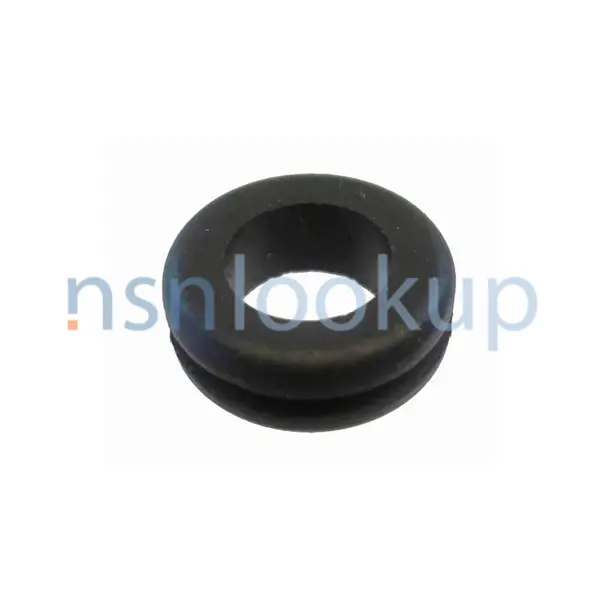

Nonmetallic Grommet

5325002766100 002766100 MILG3036 413800-58 4138300-26 12Z12002-112 201-0006-000 2283 127N206 NAS1496-09 MS35489-14 MS35490-4 434 135 944.87.31.014 27G3145-1 MS35490-14 931-8-13 MECD368614-17 AN931-8-13 5325PL0929339

An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING. View more Nonmetallic Grommet

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
77

NATO Data Quality

5325-00-276-6100 GROMMET,NONMETALLIC 5325002766100 002766100 1/2 — 5325-00-276-6100 Photo 1/2

AGME Style 1 for 5325-00-276-6100 2/2 — NSN 5325-00-276-6100 (Identification) 2/2

Marketplace 5325-00-276-6100

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS35489-14 GROMMET,NONMETALLIC 51 PG NS

Subscribe to View Vendor Details...

MS35489-14 GROMMET,NONMETALLIC 8 PG NS

Subscribe to View Vendor Details...

MS35489-14 GROMMET,NONMETALLIC 27 PG NS

Subscribe to View Vendor Details...

AN931-8-13 GROMMET,NONMETALLIC 531 PG NS

MS35490-4 GROMMET,NONMETALLIC 712 PG NS

MS-35490-14 GROMMET,NONMETALLIC 555 PG NS

MS-35490-4 GROMMET,NONMETALLIC 479 PG NS

MS35490-14 GROMMET,NONMETALLIC 182 PG NS

MS35489-14 GROMMET,NONMETALLIC 669 PG NS

MIL-G-3036 GROMMET,NONMETALLIC 29 PG NS

Subscribe to View Vendor Details...

M151DEC7834P GROMMET,NONMETALLIC RQST NS

Subscribe to View Vendor Details...

MS35489-14 GROMMET,NONMETALLIC 50 PG NS

Subscribe to View Vendor Details...

MS35489-14 GROMMET,NONMETALLIC 21 PG NS

Subscribe to View Vendor Details...

MS35490-4 GROMMET,NONMETALLIC 21 PG NS

MS354904 GROMMET,NONMETALLIC 8 PG NS

AN931-8-13 GROMMET,NONMETALLIC 60 PG NS

Subscribe to View Vendor Details...

201-0006-000 GROMMET,NONMETALLIC 1 PG NS
