5325-00-276-6090

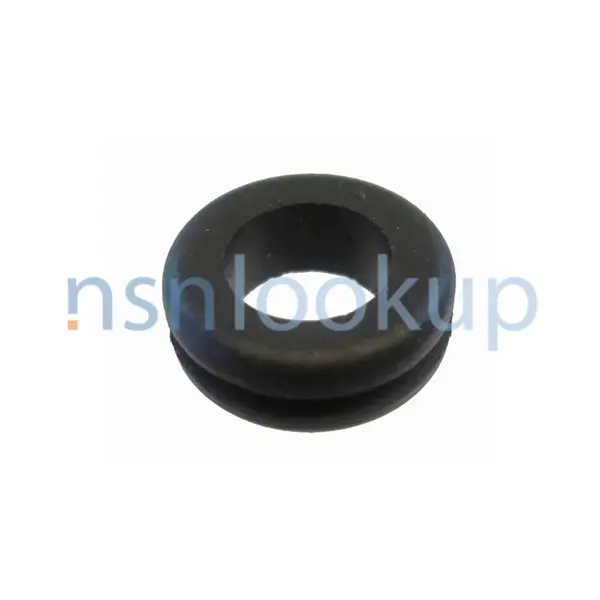

Nonmetallic Grommet

5325002766090 002766090 2296 2109D15 113019ADX MS35489-18S MS35489-18 434 139 113019 7880 MS35490-18 5325PL1939985

An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING. View more Nonmetallic Grommet

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
46

NATO Data Quality

5325-00-276-6090 GROMMET,NONMETALLIC 5325002766090 002766090 1/2 — 5325-00-276-6090 Photo 1/2

AGME Style 1 for 5325-00-276-6090 2/2 — NSN 5325-00-276-6090 (Identification) 2/2

Marketplace 5325-00-276-6090

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS35489-18 GROMMET,NONMETALLIC 30 PG NS

Subscribe to View Vendor Details...

MS35489-18 GROMMET,NONMETALLIC 77 PG NS

Subscribe to View Vendor Details...

MS35489-18 GROMMET,NONMETALLIC 14 PG NS

Subscribe to View Vendor Details...

MS35489-18 GROMMET,NONMETALLIC 99 PG NS

Subscribe to View Vendor Details...

MS35489-18 GROMMET,NONMETALLIC 8 PG NS

Subscribe to View Vendor Details...

MS35489-18 GROMMET,NONMETALLIC 10 PG NS

Subscribe to View Vendor Details...

MS35489-18 GROMMET,NONMETALLIC 519 PG NS

MS-35490-18 GROMMET,NONMETALLIC 485 PG NS

78-80 GROMMET,NONMETALLIC 750 PG NS

7880 GROMMET,NONMETALLIC 40 PG NS

Subscribe to View Vendor Details...

2296 GROMMET,NONMETALLIC 8 PG NS

Subscribe to View Vendor Details...

MS35489-18 GROMMET 56 PG NS

MS35489-18 GROMMET 120 PG NS

Subscribe to View Vendor Details...

TM9-2320-280-24P-21996PDFHUMV GROMMET,NONMETALLIC RQST NS

Subscribe to View Vendor Details...

2296 GROMMET,NONMETALLIC RQST NS

Subscribe to View Vendor Details...

7880 GROMMET,NONMETALLIC 3 PG NS

Subscribe to View Vendor Details...

2296 GROMMET,NONMETALLIC RQST NS

Subscribe to View Vendor Details...

MS35489-18 GROMMET,NONMETALLIC 24 PG NS

Subscribe to View Vendor Details...

MS35489-18 GROMMET,NONMETALLIC 1 PG NS

Updated Every Day

5325-00-276-6090 RQST NE

Updated Every Day

5325-00-276-6090 RQST

Updated Every Day

5325-00-276-6090 RQST NE

Restrictions 5325-00-276-6090

5325-00-276-6090 is a Nonmetallic Grommet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5325-00-276-6090

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5325-00-276-6090

US Army (A919)
Effective Date:: 1 Jun 2005
Former MOE Rule:: A187
Supplementary Receivers:: AZCTCL; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Jun 2005
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Jun 2005
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G930)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Jun 2005
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Jun 2005
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Poland (WP01)
Effective Date:: 1 Jul 2006

Bulgaria (WU01)
Effective Date:: 1 Sep 2002

Brazil (YA01)
Effective Date:: 1 Aug 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Jun 2006

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Feb 1995

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 5325-00-276-6090

Part Number
Manufacturer
Status
MS35489-18: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC 4
2296: 70485 - Atlantic India Rubber Co Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
2109D15: 0AHP5 - Curtiss-Wright Controls, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
113019ADX: 1VN02 - Airdale Express Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
434 139: 77294 - Piper Industrial Manufacturing (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
113019: 73734 - Federal Screw Products Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
7880: 14370 - Continental Rubber Works (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
MS35490-18: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5325PL1939985: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
MS35489-18S: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5325-00-276-6090

Characteristic
Specifications
FIIG: A05400
Color [HUES]: Black Overall
Features Provided [CBBL]: Coolant Resistant And Oil Resistant
Flange Thickness [ABKU]: 0.063 Inches Minimum And 0.125 Inches Maximum
Grommet Construction Type [AGMU]: Solid
Grommet Style [AGME]: Round
Groove Outside Diameter [AGMH]: 1.234 Inches Minimum And 1.266 Inches Maximum
Groove Width [ABGF]: 0.046 Inches Minimum And 0.078 Inches Maximum
Hole Diameter [AAUB]: 0.609 Inches Minimum And 0.641 Inches Maximum
Material [MATT]: Rubber Synthetic Overall
Large Flange Outside Diameter [AGMF]: 1.469 Inches Minimum And 1.531 Inches Maximum
Material Document And Classification [MDCL]: Astm D2000 Bg515a14bc32e036f19z Assn Std Single Material Response Overall
Overall Height [ABKW]: 0.234 Inches Minimum And 0.266 Inches Maximum

Weapon Systems (WSDC) 5325-00-276-6090

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5325-00-276-6090

Last Stock Position:: 4600 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5325-00-276-6090

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
