5325-00-276-6089

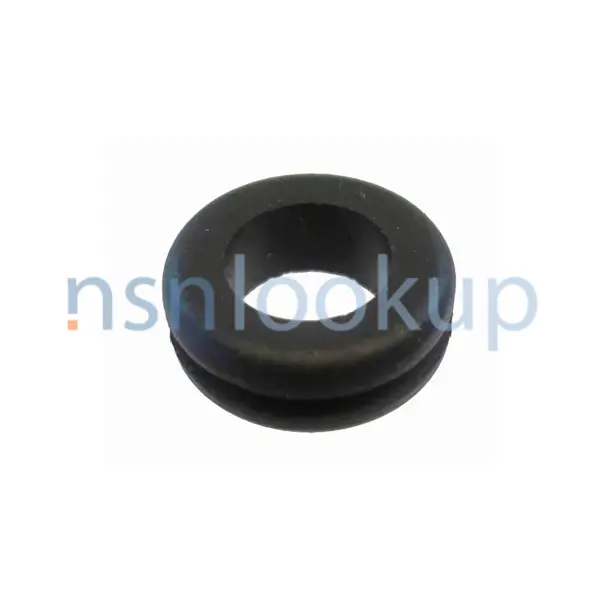

Nonmetallic Grommet

5325002766089 002766089 MILG3036 209-1-17 2295 523371 113017ADX 33G1714 2109D13 359-1001P6 BACG20AF9B1 A3692 946221-16 MS35489-16 944.87.31.016 10M628 MS35489-16S 7878 113017 12Z12002-64 L1652-17 10386518

An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING. View more Nonmetallic Grommet

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
69

NATO Data Quality

5325-00-276-6089 GROMMET,NONMETALLIC 5325002766089 002766089 1/2 — 5325-00-276-6089 Photo 1/2

AGME Style 1 for 5325-00-276-6089 2/2 — NSN 5325-00-276-6089 (Identification) 2/2

Marketplace 5325-00-276-6089

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 30 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 18 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 115 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 11 EA NS

Subscribe to View Vendor Details...

20-9117 GROMMET,NONMETALLIC 2 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 99 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 3 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 2 EA NS

2-295 GROMMET,NONMETALLIC 9 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 552 EA NS

MIL-G-3036 GROMMET,NONMETALLIC 29 EA NS

MS35489-16S GROMMET,NONMETALLIC 29 EA NS

5325-00-276-6089 GROMMET,NONMETALLIC 26 EA NS

BACG20AF9B1 GROMMET,NONMETALLIC 29 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 400 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 740 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 404 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 55 EA NS

Subscribe to View Vendor Details...

MS35489-16 GROMMET,NONMETALLIC 136 EA NS

MILG3036 GROMMET,NONMETALLIC 266 EA NS

Updated Every Day

5325-00-276-6089 RQST NE

Updated Every Day

5325-00-276-6089 RQST

Updated Every Day

5325-00-276-6089 RQST NE

Restrictions 5325-00-276-6089

5325-00-276-6089 is a Nonmetallic Grommet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5325-00-276-6089

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5325-00-276-6089

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: CLBFBDAZAJCT; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G180)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Jul 2015

Lithuania (WI01)
Effective Date:: 1 Mar 2001

Poland (WP01)
Effective Date:: 1 Jul 2006

Brazil (YA01)
Effective Date:: 1 Aug 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Mar 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5325-00-276-6089

Part Number
Manufacturer
Status
MS35489-16: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MILG3036: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC 4
209-1-17: 04655 - General Dynamics Mission Systems, (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
2295: 70485 - Atlantic India Rubber Co Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
523371: 6L214 - Badger Fire Protection Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
113017ADX: 1VN02 - Airdale Express Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
33G1714: 53711 - Naval Sea Systems Command (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
2109D13: 0AHP5 - Curtiss-Wright Controls, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
359-1001P6: 3B150 - Raytheon Company (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
BACG20AF9B1: 81205 - The Boeing Company (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
A3692: 46522 - Dcm Manufacturing, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
944.87.31.016: S4080 - Pilatus Aircraft Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
10M628: 07426 - Warwick Electronics Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS35489-16S: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
33G1714: 10001 - Navair And Navsea Managed Original (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
7878: 14370 - Continental Rubber Works (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
113017: 73734 - Federal Screw Products Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
359-1001P6: 49956 - Raytheon Company (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
12Z12002-64: 10001 - Navair And Navsea Managed Original (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5325002766089: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
523371: 07464 - Badger Fire Protection Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
L1652-17: 46717 - Pettibone Llc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
MS35489-16: 1N879 - Mid-Coast Industries, Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
10386518: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5325002766089: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
946221-16: 06481 - Northrop Grumman Systems Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5325-00-276-6089

Characteristic
Specifications
FIIG: A05400
Color [HUES]: Black Overall
Features Provided [CBBL]: Coolant Resistant And Oil Resistant
Flange Thickness [ABKU]: 0.094 Inches Minimum And 0.156 Inches Maximum
Groove Outside Diameter [AGMH]: 0.796 Inches Minimum And 0.828 Inches Maximum
Groove Width [ABGF]: 0.046 Inches Minimum And 0.078 Inches Maximum
Grommet Construction Type [AGMU]: Solid
Grommet Style [AGME]: Round
Hole Diameter [AAUB]: 0.546 Inches Minimum And 0.578 Inches Maximum
Nonmetallic Hardness Rating [AASF]: 45.0 Minimum Shore Durometer A And 55.0 Maximum Shore Durometer A
Material [MATT]: Rubber Synthetic Overall
Large Flange Outside Diameter [AGMF]: 1.031 Inches Minimum And 1.093 Inches Maximum
Material Document And Classification [MDCL]: Astm D2000 Bg515a14b24c32e036f19z Assn Std Single Material Response Overall
Overall Height [ABKW]: 0.296 Inches Minimum And 0.328 Inches Maximum
