5325-00-276-4913
Snap Fastener Stud
5325002764913 002764913 AN227-41 MS27985-4N 130
A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER. View more Snap Fastener Stud
May 2023
11
Marketplace 5325-00-276-4913
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5325-00-276-4913 2+ Documents (More...)
... 130 STUD,SNAP FASTENER 6 EA NS Request Quotation Subscribe to View Vendor Details... 130 STUD,SNAP
RQST NE Updated Every Day 5325-00-276-4913 RQST Updated Every Day 5325-00-276-4913 RQST NE Related
Restrictions 5325-00-276-4913
5325-00-276-4913 is a Snap Fastener Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-276-4913
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKE
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-276-4913
- Part Number
- Manufacturer
- Status
- MS27985-4N
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- AN227-41
- 88044 - Aeronautical Standards Group (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 130
- 53705 - Scovill Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5325-00-276-4913
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Copper Alloy Overall

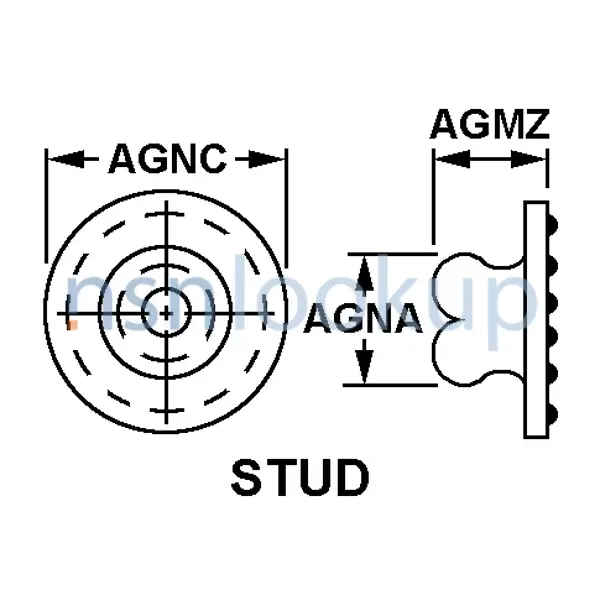

- Snap Fastener Stud Style [AGMX]
- Stud
- Stud Head Diameter [AGNA]
- 0.188 Inches Nominal
- Stud Overall Length [AGMZ]
- 0.156 Inches Nominal
- Stud Retention Method [AGPC]
- Eyelet
- Stud Base Diameter [AGNC]
- 0.484 Inches Nominal
- Surface Treatment [SFTT]
- Nickel Overall
DLA Procurement Analysis 5325-00-276-4913
Management Data 5325-00-276-4913
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-276-4913
Freight Information 5325-00-276-4913
5325-00-276-4913 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-276-4913 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-276-4913 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-276-4913 is not classified as a special type of cargo when transported by water. 5325-00-276-4913 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-276-4913
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5325-00-276-4913 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
