5325-00-275-4509
Snap Fastener Post
5325002754509 002754509 MIL-F-10884F 312325-52 128-0066-009 AN227-52
A flanged metallic item, usually tubular, designed to permanently fasten a STUD, SNAP FASTENER to a material. May be open or closed at either end. Excludes EYELET, METALLIC. View more Snap Fastener Post
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
16
16
NATO Data Quality
Marketplace 5325-00-275-4509
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-275-4509 3+ Documents (More...)
MIL-F-10884F 312325-52 128-0066-009 AN227-52 A flanged metallic item, usually tubular, designed to permanently
AN227-52 POST,SNAP FASTENER 8 EA NS Request Quotation Updated Every Day 5325-00-275-4509 RQST NE Updated
Every Day 5325-00-275-4509 RQST Updated Every Day 5325-00-275-4509 RQST NE Related Documents 5325-00
AN227-52 POST,SNAP FASTENER 8 EA NS Request Quotation Updated Every Day 5325-00-275-4509 RQST NE Updated
Every Day 5325-00-275-4509 RQST Updated Every Day 5325-00-275-4509 RQST NE Related Documents 5325-00
browser . 5325-21-711-0316Snap Fastener Post5325217110316 217110316 Cancelled - Replaced by NSN 5325-00-275-4509
ADPEC : 5325-21-711-0316 is a Snap Fastener Post https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-275-4509
Snap Fastener Post 5325002754509 002754509 Updated Every Day 5325-00-275-4509 RQST NE Updated https
ADPEC : 5325-21-711-0316 is a Snap Fastener Post https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-275-4509
Snap Fastener Post 5325002754509 002754509 Updated Every Day 5325-00-275-4509 RQST NE Updated https
Account Upgrade 5325-00-776-1219Snap Fastener Clinch Plate5325007761219 007761219 MS27977-10B MIL-F-10884F
776-1219Snap Fastener Clinch Plate5325007761219 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-275-4509
Snap Fastener Post 5325002754509 002754509 $1 a day Upgrade your Account Upgrade 5325-00-275-4509Snap
776-1219Snap Fastener Clinch Plate5325007761219 https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-275-4509
Snap Fastener Post 5325002754509 002754509 $1 a day Upgrade your Account Upgrade 5325-00-275-4509Snap
Restrictions 5325-00-275-4509
5325-00-275-4509 is a Snap Fastener Post that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-275-4509
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-275-4509
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEHD
- France (ZF01)
- Effective Date:
- 1 Apr 2000
Approved Sources 5325-00-275-4509
- Part Number
- Manufacturer
- Status
- AN227-52
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Definitive Standard
- Definitive Standard
- MIL-F-10884F
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 312325-52
- 80020 - Naval Air Warfare Center Aircraft (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 128-0066-009
- 94756 - The Boeing Company (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5325-00-275-4509
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material Document And Classification [MDCL]
- Qq-B-613 Fed Spec 1St Material Response Overall Or Mil-C-50 Mil Spec 2Nd Material Response Overall
- Material [MATT]
- Copper Alloy 260 Overall

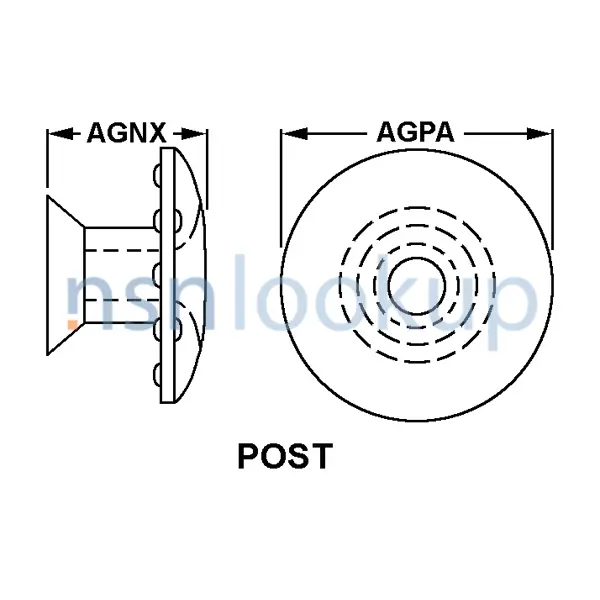

- Post Base Diameter [AGPA]
- 0.469 Inches Nominal
- Post Overall Length [AGNX]
- 0.203 Inches Nominal
- Snap Fastener Post Style [AGNW]
- Post
- Surface Treatment Document And Classification [STDC]
- Qq-N-290,Cl 1 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Nickel Overall
Weapon Systems (WSDC) 5325-00-275-4509
DLA Procurement Analysis 5325-00-275-4509
- Last Stock Position:
- 125 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-275-4509
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-275-4509
Freight Information 5325-00-275-4509
5325-00-275-4509 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-275-4509 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-275-4509 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-275-4509 is not classified as a special type of cargo when transported by water. 5325-00-275-4509 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-275-4509
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5325-00-275-4509 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
