5325-00-171-6345
Snapslide Fastener
5325001716345 001716345 30A1438ISSUEA
A mechanical device consisting of a latch, latch guide, post, and washer designed to support and hold equipment in a fixed position. It may or may not include STUD, SNAPSLIDE FASTENER. View more Snapslide Fastener
May 2023
7
Marketplace 5325-00-171-6345
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-171-6345 1+ Documents (More...)
) 3/4 NSN 5325-00-171-6345 (Identification) 4/4 - - - - 1.
RQST NE Updated Every Day 5325-00-171-6345 RQST Updated Every Day 5325-00-171-6345 RQST NE Related Documents
Restrictions 5325-00-171-6345
5325-00-171-6345 is a Snapslide Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-171-6345
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-171-6345
- US Coast Guard (C918)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- C004
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5325-00-171-6345
- Part Number
- Manufacturer
- Status
- 30A1438ISSUEA
- Manufacturer
- 93663 - I T I Electronics, Inc. (Active)
- Original Design
- Original Design
Datasheet 5325-00-171-6345
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Guide Hole Diameter [CHPL]
- 0.082 Inches Nominal
- Guide Length [AQWP]
- 0.609 Inches Nominal
- Head Outside Diameter [AGPW]
- 0.219 Inches Nominal
- Hole Depth [AAZQ]
- 0.094 Inches Nominal
- Mounting Hole Diameter [ABTB]
- 0.093 Inches Nominal
- Neck Diameter [ADCL]
- 0.125 Inches Nominal
- Neck Length [AGQB]
- 0.045 Inches Nominal
- Notch Diameter [AGPT]
- 0.130 Inches Nominal
- Material [MATT]
- Copper Alloy Latch
- Material [MATT]
- Copper Alloy Latch Guide
- Material [MATT]
- Copper Alloy Stud
- Material [MATT]
- Copper Alloy Post
- Material [MATT]
- Copper Alloy Washer
- Inside Width [ADJT]
- 0.266 Inches Nominal
- Latch Guide Style [AGPU]
- Round End
- Latch Overall Length [AGPS]
- 0.600 Inches Nominal
- Latch Overall Width [CRKM]
- 0.240 Inches Nominal
- Latch Style [AGPR]
- Flat Turned-Up End
- Largest Diameter [AGQA]
- 0.187 Inches Nominal
- Post Shank Length [ALBQ]
- 0.095 Inches Nominal
- Post Shoulder Length [AGPY]
- 0.045 Inches Nominal
- Shank Length [AATR]
- 0.093 Inches Nominal
- Shank Diameter [AAZE]
- 0.125 Inches Nominal
- Shank Outside Diameter [AGGZ]
- 0.078 Inches Nominal
- Shoulder Diameter [AAVH]
- 0.187 Inches Nominal
- Shoulder Length [AAVK]
- 0.078 Inches Nominal
- Shoulder Outside Diameter [AGPX]
- 0.125 Inches Nominal

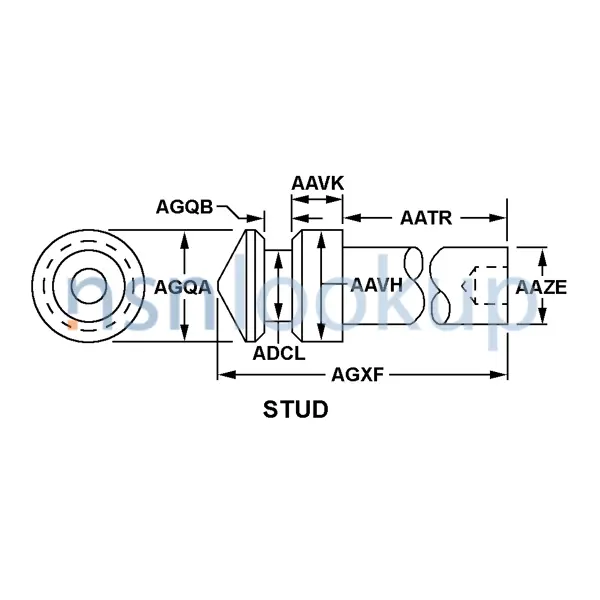

- Snapslide Post Style [AGPV]
- Post
- Snapslide Stud Style [AGPZ]
- Stud
- Overall Length [ABHP]
- 0.159 Inches Nominal
- Special Features [FEAT]
- Drilled Stud Head
- Stud Length [AGXF]
- 0.346 Inches Nominal
- Surface Treatment [SFTT]
- Nickel Overall
- Thickness [ABNM]
- 0.032 Inches Nominal
DLA Procurement Analysis 5325-00-171-6345
Management Data 5325-00-171-6345
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5325-00-171-6345
Freight Information 5325-00-171-6345
5325-00-171-6345 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-171-6345 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-171-6345 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-171-6345 is not classified as a special type of cargo when transported by water. 5325-00-171-6345 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
