5325-00-152-0996
Positive Lock Stud
5325001520996 001520996 94698
A quick disconnecting item with a circumferential groove at one end that is inserted into a RECEPTACLE, POSITIVE LOCK for positive fastening. View more Positive Lock Stud
May 2023
2
Marketplace 5325-00-152-0996
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-152-0996 5+ Documents (More...)
BUY NE FedMall Updated Every Day 5325-00-152-0996 RQST NE Updated Every Day 5325-00-152-0996 RQST
Updated Every Day 5325-00-152-0996 RQST NE Related Documents 5325-00-152-0996 5+ Documents ( More...
5325-00-152-0996 Positive Lock Stud 5325001520996 001520996 Primary Buy RNCC 3 RNVC 2 DAC 1 78024 94698
https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-152-0996 Positive Lock Stud 5325001520996 001520996
-152-0996 Positive Lock Stud 5325001520996 001520996 Active) Primary Buy RNCC 3 RNVC 2 DAC 1 78024 94698
94698 https//www.nsnlookup.com /fsg-46/fsc-4610/uk 4610-99-895-7961 Reverse Osmosis Pla 4610998957961
/www.nsnlookup.com /fsg-46/fsc-4610/uk 4610-99-895-7961 Reverse Osmosis Pla 4610998957961998957961 94698
Positive Lock Stud 5325001520996 001520996 Primary Buy RNCC 3 RNVC 2 DAC 1 78024 94698 94698 https
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 94698
Positive Lock Stud 5325001520996 001520996 Active) Primary Buy RNCC 3 RNVC 2 DAC 1 78024 94698
Restrictions 5325-00-152-0996
5325-00-152-0996 is a Positive Lock Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5325-00-152-0996
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-152-0996
- US Navy (N9BZ)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
Approved Sources 5325-00-152-0996
- Part Number
- Manufacturer
- Status
- 94698
- Manufacturer
- 26512 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-00-152-0996
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- End Overall Length [AGQM]
- 0.370 Inches Minimum And 0.375 Inches Maximum
- Head Diameter [AASL]
- 0.600 Inches Minimum And 0.605 Inches Maximum
- Material [MATT]
- Steel Overall
- Major Diameter Length [AGQK]
- 0.120 Inches Minimum And 0.125 Inches Maximum

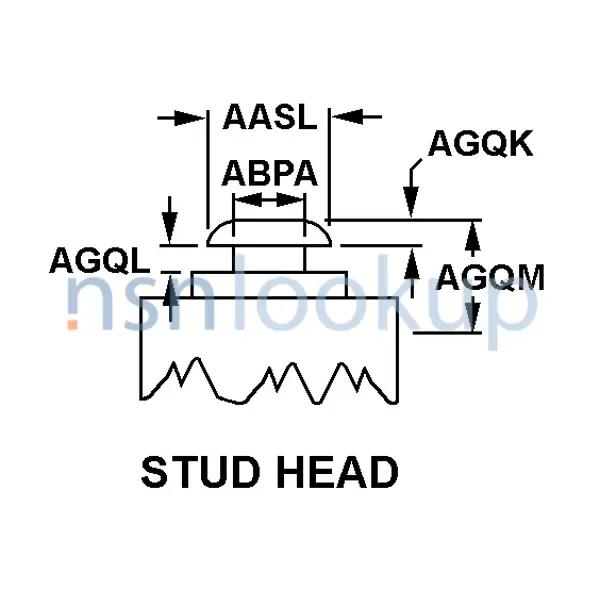

- Positive Lock Stud Head Style [AGQJ]
- Stud Head
- Positive Lock Stud Shank Style [AGQN]
- Stud Shank
- Undercut Diameter [ABPA]
- 0.360 Inches Minimum And 0.365 Inches Maximum
- Undercut Length [AGQL]
- 0.166 Inches Minimum And 0.171 Inches Maximum
- Stud Shank Overall Height [CTDM]
- 0.750 Inches Nominal
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Size And Series/Type Designator [THDS]
- 0.375-24 Unf
DLA Procurement Analysis 5325-00-152-0996
Management Data 5325-00-152-0996
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5325-00-152-0996
Freight Information 5325-00-152-0996
5325-00-152-0996 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5325-00-152-0996 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5325-00-152-0996 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-152-0996 is not classified as a special type of cargo when transported by water. 5325-00-152-0996 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5325-00-152-0996 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
