5325-00-141-7419
Nonmetallic Grommet
5325001417419 001417419 7970128 5325001417303 CS-2300-0001 REV B
An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING. View more Nonmetallic Grommet
May 2023
25
Marketplace 5325-00-141-7419
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-141-7419 5+ Documents (More...)
United States (US) 4. 5325-00-141-7419 Marketplace Restrictions Approved Sources Datasheet Management
NE Updated Every Day 5325-00-141-7419 RQST Updated Every Day 5325-00-141-7419 RQST NE Related Documents
Nonmetallic Grommet 5325001417419 001417419, Upgrade your Account Upgrade 5325-00-141-7419Nonmetallic
Grommet5325001417419 001417419 7970128 5325001417303 DAC 1 5325001417419 SCY13 - E.C.A Etablissement
Nonmetallic Grommet 5325001417419 001417419, for $1 a day Upgrade your Account Upgrade 5342-00-
915-8162Hookxstrap5342009158162 009158162 CS-2300-0001 REV B your Account Upgrade 5365-01-234-2648Plate
Day 5315-00-699-0831 RQST NE Related Documents https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-141-7419
Nonmetallic Grommet 5325001417419 001417419, https//www.nsnlookup.com /fsg-53/fsc-5315/us 5315-
for $1 a day Upgrade your Account Upgrade 5342-00-915-8162Hookxstrap5342009158162 009158162 CS-2300-0001 REV B
your Account Upgrade 5365-01-234-2648Plate Spacer5365012342648 012342648 12351664 BML64562 CS-2300-0001 REV B
Restrictions 5325-00-141-7419
5325-00-141-7419 is a Nonmetallic Grommet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-141-7419
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-141-7419
- US Army (A919)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- MC10
- Spain (YB01)
- Effective Date:
- 1 Oct 1998
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5325-00-141-7419
- Part Number
- Manufacturer
- Status
- 7970128
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5325001417419
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5325001417303
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5325001417419
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 5325001417303
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- CS-2300-0001 REV B
- 16236 - Dla Land And Maritime (Active)
- Informational Drawing
- Informational Drawing

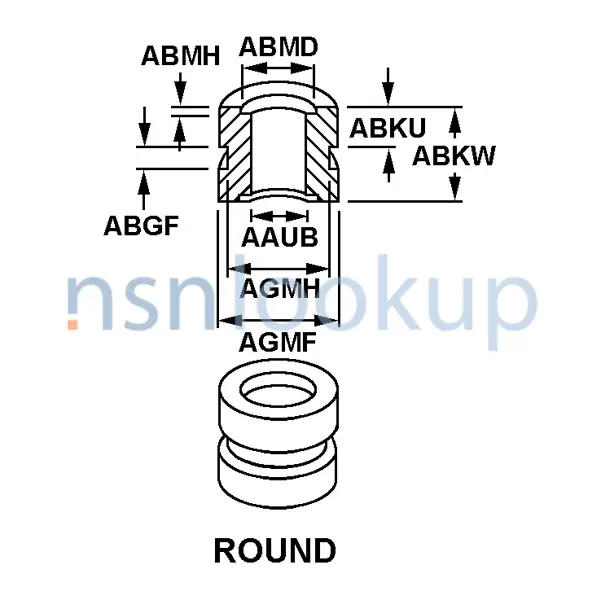

Datasheet 5325-00-141-7419
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Color [HUES]
- Any Acceptable Overall
- Flange Thickness [ABKU]
- 0.375 Inches Nominal
- Grommet Construction Type [AGMU]
- Split
- Groove Width [ABGF]
- 1.625 Inches Nominal
- Grommet Style [AGME]
- Round
- Groove Outside Diameter [AGMH]
- 1.250 Inches Nominal
- Hole Diameter [AAUB]
- 0.375 Inches Nominal
- Nonmetallic Hardness Rating [AASF]
- 65.0 Minimum Shore Durometer A And 75.0 Maximum Shore Durometer A
- Material [MATT]
- Rubber Natural Or Rubber Synthetic Overall
- Large Flange Outside Diameter [AGMF]
- 1.625 Inches Nominal
- Recess Depth [ABMH]
- 0.438 Inches Nominal
- Recess Diameter [ABMD]
- 0.625 Inches Nominal
- Overall Height [ABKW]
- 2.375 Inches Nominal
DLA Procurement Analysis 5325-00-141-7419
Management Data 5325-00-141-7419
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5325-00-141-7419
Freight Information 5325-00-141-7419
5325-00-141-7419 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-00-141-7419 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-00-141-7419 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 5325-00-141-7419 is not classified as a special type of cargo when transported by water. 5325-00-141-7419 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-141-7419
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- No Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 5325-00-141-7419 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
