5325-00-119-6547
Retaining Ring
5325001196547 001196547 50101
A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND. View more Retaining Ring
January 2023
13
Marketplace 5325-00-119-6547
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-119-6547 5+ Documents (More...)
5325001196547 001196547,50101 5325-00-119-6547 RQST Updated Every Day 5325-00-119-6547 RQST NE Related
Documents 5325-00-119-6547 /fr 3940-14-393-6454 50101-395-00-7 407/7/30830 50101-395-7 https//www.nsnlookup.com
-395-00-7 407/7/30830 50101-395-7 https//www.nsnlookup.com /fsg-39/fsc-3940/fr 3940-14 -393-6454 50101
-395-00-7 407/7/30830 50101-395-7 https//www.nsnlookup.com /fsg-25/fsc-2530/us 2530-00-118-8713 50101
-395 -6454 50101-395-00-7 407/7/30830 50101-395-7 https//www.nsnlookup.com -395 50101-395-00-7 407/7/
-6454 -6454 50101-395-00-7 407/ -6454 50101 -395 50101-395-00-7 407/7 https//www.nsnlookup.com /fsg-
/7/30830 50101-395-7 https//www.nsnlookup.com 50101 -395-00-7 407/7/30830 50101 -395-7 https https//www.nsnlookup.com
50101-395-00-7 407/7/30830 50101-395 -4940/it 4940-15-139-1460 -395-00-7 407/7/30830 50101-395-7 https
/fsg-39/fsc-3940/fr 3940-14-393-6454 50101-395-00-7 407/7/30830 50101-395-7 https//www.nsnlookup.com
-395 50101-395-00-7 407/7/30830 50101-395-7 https//www.nsnlookup.com 50101 -395-00-7 407/7/30830 50101
Restrictions 5325-00-119-6547
5325-00-119-6547 is a Retaining Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-119-6547
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-119-6547
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-119-6547
- Part Number
- Manufacturer
- Status
- 50101
- Manufacturer
- 73030 - Hamilton Sundstrand Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-00-119-6547
- Characteristic
- Specifications
- FIIG
- Specifications
- T252-G
- Casehardening Indicator [AASG]
- Not Casehardened
- Cross-Sectional Shape Style [AAGR]
- Grooved Inside Corner
- Material [MATT]
- Steel,1010
- Minor Thickness [ABMB]
- 0.083 Inches Nominal
- Outside Diameter [ABKV]
- 3.584 Inches Minimum And 3.604 Inches Maximum
- Major Thickness [ABMC]
- 0.281 Inches Nominal

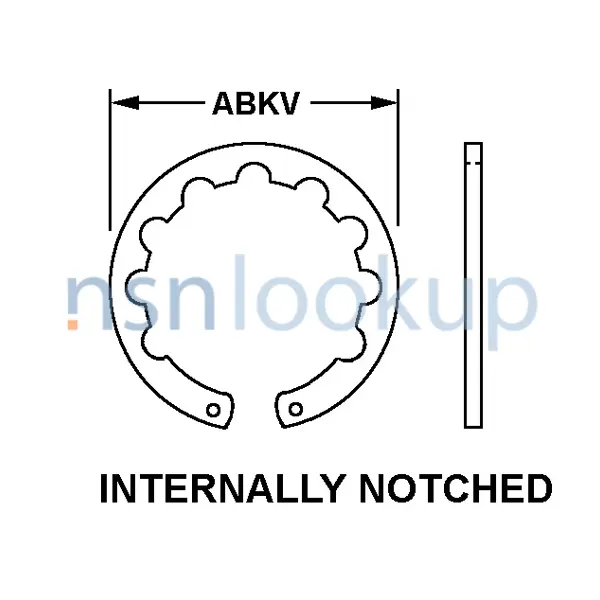

- Ring Style [ACXD]
- Internally Notched
- Special Features [FEAT]
- 2.719 In. Dia Acrosa Internal Flats And 8 Holes 0.125 In. Dia In Edge Of Ring,4.Holes Each Spaced 79.75,81.0,92.0 And 103.5 Degrees Cw And Ccw From Centerline Of Gap Opening
- Usage Design [ALBY]
- External
- Surface Treatment [SFTT]
- Cadmium
Similar Supply Items to 5325-00-119-6547
Freight Information 5325-00-119-6547
5325-00-119-6547 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5325-00-119-6547 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-00-119-6547 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-119-6547 is not classified as a special type of cargo when transported by water. 5325-00-119-6547 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-119-6547
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- --
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
