5325-00-104-7991
Turnlock Fastener Stud
5325001047991 001047991 9137WC2-214L
A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning. View more Turnlock Fastener Stud
May 2023
6
Marketplace 5325-00-104-7991
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-104-7991 2+ Documents (More...)
RQST NE Updated Every Day 5325-00-104-7991 RQST Updated Every Day 5325-00-104-7991 RQST NE Related Documents
5325-00-104-7991 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-104-7991
Turnlock Fastener Stud 5325001047991 Upgrade your Account Upgrade 5325-00-104-7991Turnlock Fastener
Stud5325001047991 001047991 9137WC2-214L Every Day 5325-00-104-7991 RQST NE Restrictions https//www.nsnlookup.com
Restrictions 5325-00-104-7991
5325-00-104-7991 is a Turnlock Fastener Stud that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-104-7991
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-104-7991
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-104-7991
- Part Number
- Manufacturer
- Status
- 9137WC2-214L
- Manufacturer
- 04855 - Aeire Corp (Obsolete)
- Original Design
- Original Design
Datasheet 5325-00-104-7991
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Flat Depth [AGRB]
- 0.062 Inches Nominal
- Grip Length [AATQ]
- 0.312 Inches Nominal
- Material [MATT]
- Steel Overall
- Minor Diameter Length [AGRA]
- 1.953 Inches Nominal
- Minor Diameter [AGJR]
- 0.248 Inches Nominal

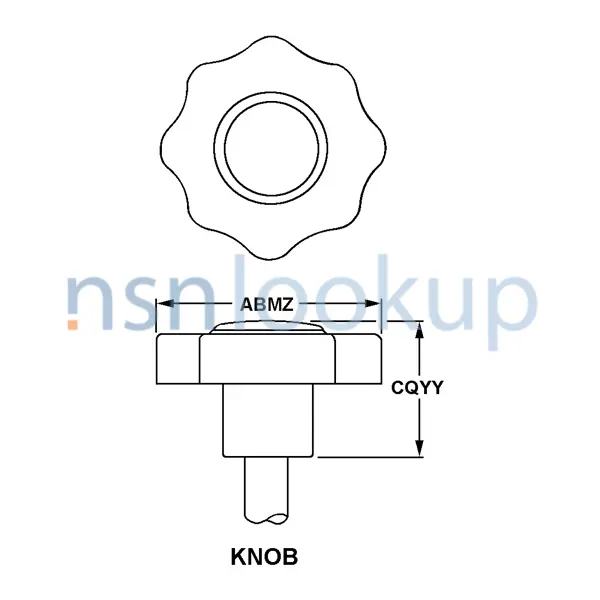

- Turnlock Stud Head Style [AGRD]
- Knob

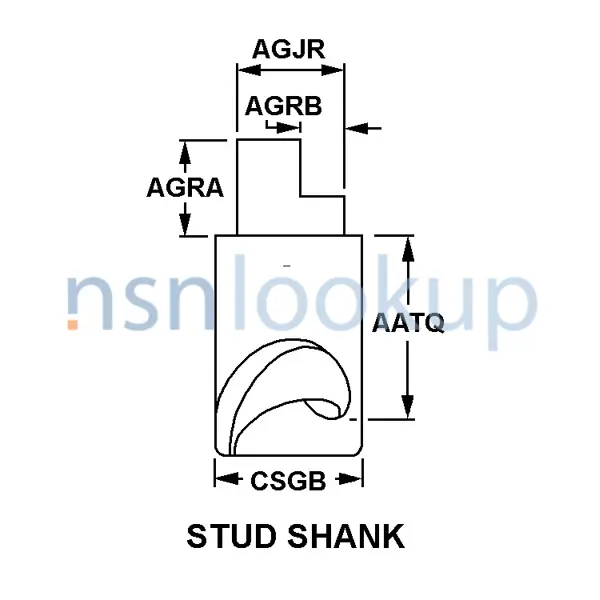

- Turnlock Stud Shank Style [AGQY]
- Stud Shank
- Stud Shank Major Diameter [CSGB]
- 0.372 Inches Minimum And 0.375 Inches Maximum
- Surface Treatment [SFTT]
- Cadmium Overall
DLA Procurement Analysis 5325-00-104-7991
Management Data 5325-00-104-7991
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-104-7991
Freight Information 5325-00-104-7991
5325-00-104-7991 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-104-7991 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-104-7991 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-104-7991 is not classified as a special type of cargo when transported by water. 5325-00-104-7991 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5325-00-104-7991 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
