5325-00-089-8873
Positive Lock Fastener
5325000898873 000898873 4002-244-16D
An item consisting of a STUD, POSITIVE LOCK and a RECEPTACLE, POSITIVE LOCK and may include a washer. It is designed to provide a means for securely locking two items together and allow for quick disconnecting. View more Positive Lock Fastener
January 2023
3
Marketplace 5325-00-089-8873
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-089-8873 2+ Documents (More...)
RQST NE Updated Every Day 5325-00-089-8873 RQST Updated Every Day 5325-00-089-8873 RQST NE Related Documents
5325-00-089-8873 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-089-8873
Positive Lock Fastener 5325000898873 day Upgrade your Account Upgrade 5325-00-089-8873Positive
Lock Fastener5325000898873 000898873 4002-244-16D Every Day 5325-00-089-8873 RQST NE Restrictions https
Restrictions 5325-00-089-8873
5325-00-089-8873 is a Positive Lock Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-089-8873
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-089-8873
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-089-8873
- Part Number
- Manufacturer
- Status
- 4002-244-16D
- Manufacturer
- 71286 - Howmet Global Fastening Systems Inc (Active)
- Primary Buy
- Primary Buy

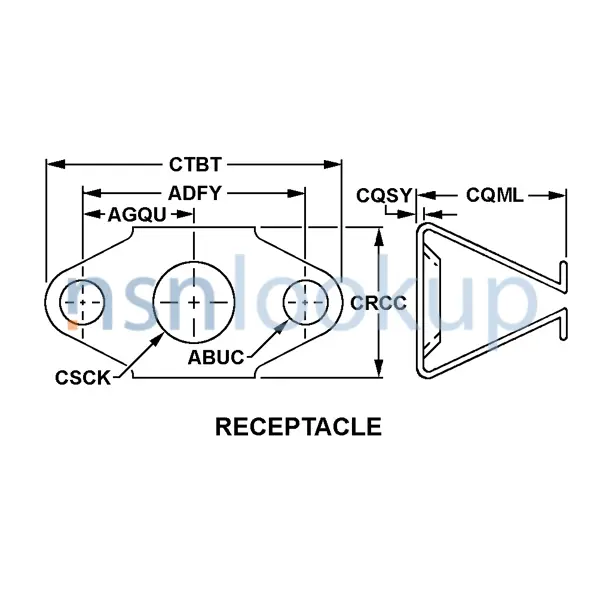

Datasheet 5325-00-089-8873
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Distance From Stud Hole Center To Mounting Hole Center [AGQU]
- 0.500 Inches Nominal
- Center To Center Distance Between Mounting Holes Along Length [ADFY]
- 0.997 Inches Minimum And 1.003 Inches Maximum
- Head Diameter [AASL]
- 0.377 Inches Minimum And 0.384 Inches Maximum
- Mounting Hole Diameter [ABUC]
- 0.128 Inches Minimum And 0.134 Inches Maximum
- Mounting Hole Type [ACHY]
- Plain
- Material [MATT]
- Steel Overall
- Positive Lock Receptacle Length [CTBT]
- 1.360 Inches Minimum And 1.400 Inches Maximum
- Positive Lock Receptacle Width [CRCC]
- 0.820 Inches Minimum And 0.860 Inches Maximum
- Positive Lock Receptacle Style [AGQS]
- Receptacle
- Positive Lock Stud Shank Style [AGQN]
- Stud Shank
- Shank Minor Diameter [AGQQ]
- 0.166 Inches Minimum And 0.171 Inches Maximum
- Undercut Diameter [ABPA]
- 0.166 Inches Minimum And 0.171 Inches Maximum
Similar Supply Items to 5325-00-089-8873
Freight Information 5325-00-089-8873
5325-00-089-8873 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 066440. A Sub NMFC of Z. It has a NMFC Description of FASTENERS CURTAIN/SNAP METAL. 5325-00-089-8873 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 36960 which rates the freight between FCL and LCL. 5325-00-089-8873 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-089-8873 is not classified as a special type of cargo when transported by water. 5325-00-089-8873 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
