5325-00-075-5132
Turnlock Fastener Ejector Spring
5325000755132 000755132 5S11-1A 575R184H02
A leaf-spring type item made of elastic material, designed to be fastened to a panel or RECEPTACLE, TURNLOCK FASTENER, and used to eject a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER when retracted from an inserted position. View more Turnlock Fastener Ejector Spring
November 2023
13
Marketplace 5325-00-075-5132
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-075-5132 5+ Documents (More...)
RQST NE Updated Every Day 5325-00-075-5132 RQST Updated Every Day 5325-00-075-5132 RQST NE Related Documents
5325-00-075-5132 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-075-5132
226185069 5325-00-321-4269 5325-01-134-5471 5325-22-618-5069 https 305-9334 5325-14-210-3650 5325-00-075-5132
Turnlock Fastener Ejector Spring 000755132 5325-12-305-9334 5325-14-210-3650 5325-00-075-5132 https
Turnlock Fastener Ejector Spring 000755132 www.nsnlookup.com /fsg-53/fsc-5325/fr 5325-14-210-3650
360-0513 5325-99-234-3863 5325-00-155-5271 5325-00-111-3806 5325-12-305-9334 5325-14-210-3650 5325-00-075-5132
www.nsnlookup.com /fsg-53/fsc-5325/dk 5325-22-609-4872 Turnlock Fastener Ejector Spring 226094872 210-3650 5325-00-075-5132
360-0513 5325-99-234-3863 5325-00-155-5271 5325-00-111-3806 5325-12-305-9334 5325-14-210-3650 5325-00-075-5132
5325/tr 5325-27-012-0433 Turnlock Fastener Ejector Spring 270120433 Spring 991386065 210-3650 5325-00-075-5132
5325-01-184 210-3650 5325-00-075-5132 5325-01-184-0370 5325-00-321-4269 5325-01-134-5471 5325-22
Restrictions 5325-00-075-5132
5325-00-075-5132 is a Turnlock Fastener Ejector Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-075-5132
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jul 1993
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5325-00-075-5132
- Part Number
- Manufacturer
- Status
- 575R184H02
- Manufacturer
- 97942 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 5S11-1A
- 71286 - Howmet Global Fastening Systems Inc (Active)
- Advisory Reference
- Advisory Reference
- 575R184H02
- 71286 - Howmet Global Fastening Systems Inc (Active)
- Advisory Reference
- Advisory Reference

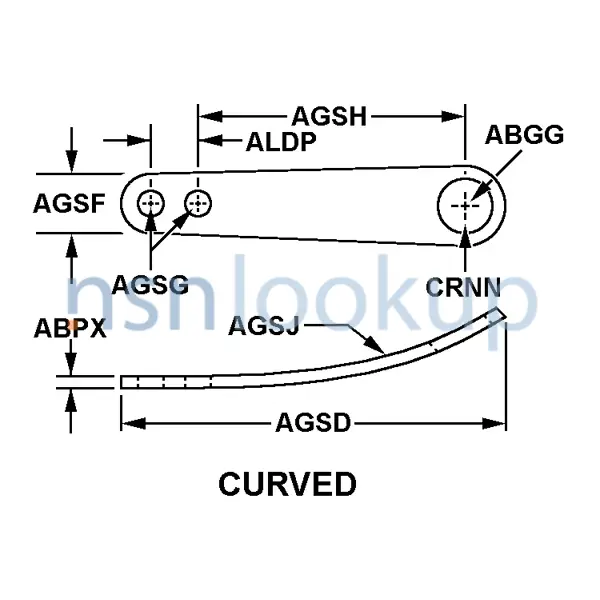

Datasheet 5325-00-075-5132
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Distance From Grommet Hole Center To Mounting Hole Center [AGSH]
- 1.326 Inches Minimum And 1.338 Inches Maximum
- Ejector Spring Style [AGSC]
- Curved
- Ejector Spring Hole Diameter [CRNN]
- 0.210 Inches Nominal
- Bend Radius [AGSJ]
- 1.250 Inches Nominal
- Center To Center Distance Between Spring Mounting Holes [ALDP]
- 0.300 Inches Nominal
- Material Thickness [ABPX]
- 0.012 Inches Minimum And 0.018 Inches Maximum
- Material [MATT]
- Steel Overall
- Radius [ABGG]
- 0.260 Inches Minimum And 0.300 Inches Maximum
- Special Features [FEAT]
- Dull Black Chemicla Finish Over Copper Plate
- Spring Mounting Hole Diameter [AGSG]
- 0.096 Inches Minimum And 0.102 Inches Maximum
- Spring Overall Length [AGSD]
- 2.000 Inches Nominal
- Spring Width [AGSF]
- 0.380 Nominal Inches
- Surface Treatment [SFTT]
- Dull Black Chemical Finish Copper Plate Overall
Weapon Systems (WSDC) 5325-00-075-5132
DLA Procurement Analysis 5325-00-075-5132
- Last Stock Position:
- 65 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5325-00-075-5132
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5325-00-075-5132
Freight Information 5325-00-075-5132
5325-00-075-5132 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5325-00-075-5132 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5325-00-075-5132 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-075-5132 is not classified as a special type of cargo when transported by water. 5325-00-075-5132 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-075-5132
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5325-00-075-5132 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
