5325-00-033-8409
Turnlock Fastener Stud Assembly
5325000338409 000338409 P521825-632-2
A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER. View more Turnlock Fastener Stud Assembly
January 2023
6
Marketplace 5325-00-033-8409
Request a Quotation from participating marketplace vendors
Related Documents 5325-00-033-8409 1+ Documents (More...)
RQST NE Updated Every Day 5325-00-033-8409 RQST Updated Every Day 5325-00-033-8409 RQST NE Related Documents
5325-00-033-8409 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5325/us 5325-00-033-8409
Restrictions 5325-00-033-8409
5325-00-033-8409 is a Turnlock Fastener Stud Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5325-00-033-8409
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5325-00-033-8409
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-033-8409
- Part Number
- Manufacturer
- Status
- P521825-632-2
- Manufacturer
- 73197 - Hi-Shear Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5325-00-033-8409
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Distance From Stud End To Largest Bearing Surface Of Eyelet [AGRG]
- 0.562 Inches Minimum And 0.635 Inches Maximum
- Drive Type [AKCV]
- Slotted
- Diameter [ABMZ]
- 0.215 Inches Nominal
- Eyelet Length [AGRK]
- 0.303 Inches Nominal
- Eyelet Outside Diameter [AGRH]
- 0.370 Inches Nominal
- Material Document And Classification [MDCL]
- Mil-S-6758 Mil Spec 1St Material Response Stud Or Mil-S-5626 Mil Spec 2Nd Material Response Stud
- Material Document And Classification [MDCL]
- Sae Assn Std Single Material Response Eyelet
- Material [MATT]
- Copper Alloy Lockspring
- Material [MATT]
- Steel Comp 302 Eyelet
- Material [MATT]
- Steel Comp 4130 Retainer Or Steel Comp 4140 Retainer
- Material [MATT]
- Steel Comp 4130 Stud Or Steel Comp 4140 Stud
- Material Document And Classification [MDCL]
- Astm A322 Assn Std 1St Material Response Retainer Or Astm A331 Assn Std 2Nd Material Response Retainer

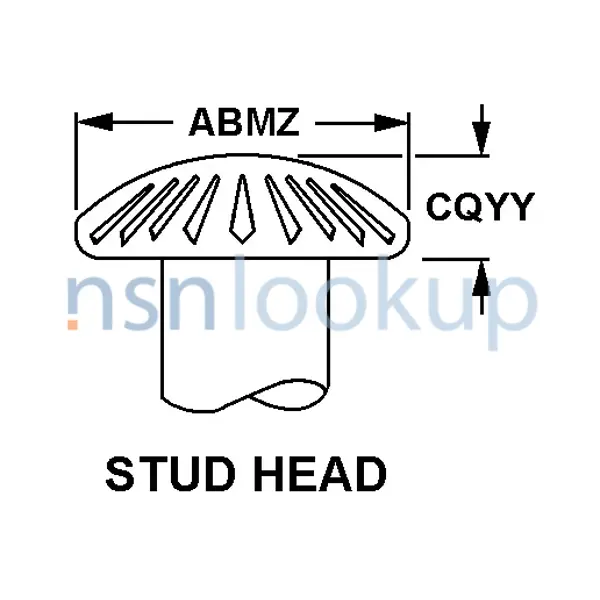

- Turnlock Stud Head Style [AGRD]
- Stud Head
- Stud Assembly Style [AGRE]
- Stud Assembly
- Stud Head Height [CQYY]
- 0.075 Inches Nominal
- Stud Thread Size And Series/Type Designator [ALBJ]
- 0.138-32 Unc
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Eyelet
- Surface Treatment [SFTT]
- Cadmium Lockspring
- Surface Treatment [SFTT]
- Cadmium Retainer
- Surface Treatment [SFTT]
- Cadmium Stud
- Surface Treatment [SFTT]
- Passivate Eyelet
