5325-00-027-0191
Trim Spring Tension Fastener
5325000270191 000270191 SA5 BTNY-167BK 8437631 53250270191
A fastening device which may have a finished or unfinished cap. It is specifically designed to fasten a trim panel, molding, or the like, to another surface by means of resilient prongs which are pressed into a hole and retained by the holding action of the prongs against the edges of the hole. Excludes BUTTON, PLUG. View more Trim Spring Tension Fastener
August 2023
25
Marketplace 5325-00-027-0191
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5325-00-027-0191 5+ Documents (More...)
United States (US) 4. 5325-00-027-0191 Marketplace Restrictions Approved Sources Datasheet Management
SA5 FASTENER,SPRING TENSION,TRIM 1 EA NS Request Quotation Subscribe to View Vendor Details... 5325-00
-0,2BAR 2360-030000-57-0 RHD 10-PL-SA5-0,2BAR RHD10LSA5-0-2BAR 56BW071 A valve permitting flow in one
-0,2BAR2360-030000-57-0RHD 10-PL-SA5-0,2BARRHD10LSA5-0-2BAR56BW071 RQST NE Updated Every Day 4820-12-
880MIN/5 SA5 Managed by United Kingdom NSN Created on 3 May 1991 Data Last Changed January 2023 NATO
755K C3 RVFASTCAM SA5 RV A device consisting of a CAMERA, STILL PICTURE and digital RQST NE Updated
755K C3 RV FASTCAM SA5 RV A device consisting of a CAMERA, STILL PICTURE and digital imaging equipment
755K C3 RVFASTCAM SA5 RV A device consisting of a CAMERA, STILL PICTURE and digital RQST NE Updated
SA4 ET SA5 A printed or typed sheet form document with blank space or spaces for insertion of specific
SA4 ET SA5 A printed or typed sheet form document with https//www.nsnlookup.com /fsg-75/fsc-7530/fr
Restrictions 5325-00-027-0191
5325-00-027-0191 is a Trim Spring Tension Fastener that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5325-00-027-0191
- US Air Force (FXGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- KE
- Morocco (YP01)
- Effective Date:
- 1 Jul 2010
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5325-00-027-0191
- Part Number
- Manufacturer
- Status
- SA5
- Manufacturer
- 64547 - Honeywell International, Inc (Active)
- Primary Buy
- Primary Buy
- BTNY-167BK
- 65664 - Catamount Mfg Inc (Active)
- Secondary Buy
- Secondary Buy
- BTNY-167BK
- 85480 - Brady United States (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 53250270191
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- SA5
- 83298 - Allied Signal Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5325000270191
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 8437631
- 19204 - Army, United States Department Of (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5325-00-027-0191
- Characteristic
- Specifications
- FIIG
- Specifications
- A05400
- Material [MATT]
- Plastic Polyhexamethylene Amide Overall
- Material Document And Classification [MDCL]
- Mil-M-20693 Ty 1 Mil Spec Single Material Response Overall

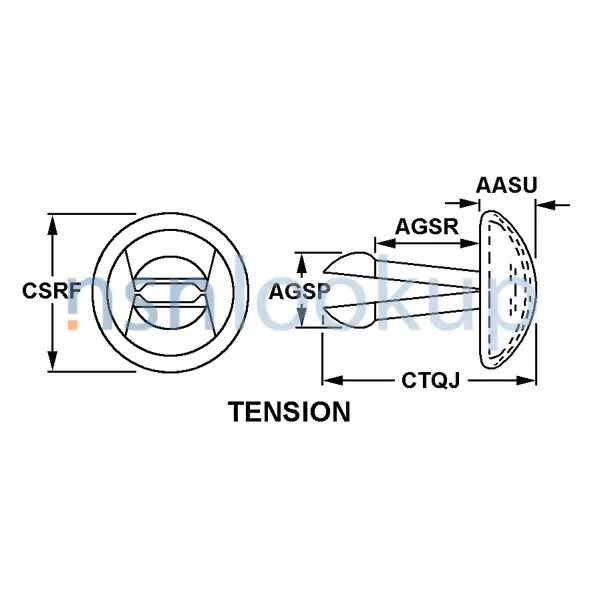

- Fastener Style [AGSN]
- Tension
- Head Height [AASU]
- 0.035 Inches Nominal
- Prong Diameter [AGSP]
- 0.202 Inches Nominal
- Length From Head To Shoulder [AGSR]
- 0.125 Inches Nominal
- Fastener Outside Diameter [CSRF]
- 0.344 Inches Nominal
- Fastener Overall Length [CTQJ]
- 0.297 Inches Nominal
Weapon Systems (WSDC) 5325-00-027-0191
DLA Procurement Analysis 5325-00-027-0191
Management Data 5325-00-027-0191
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5325-00-027-0191
Freight Information 5325-00-027-0191
5325-00-027-0191 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 094560. A Sub NMFC of X. It has a NMFC Description of FASTENERS BOX/PAIL/TUB NOI STEEL. 5325-00-027-0191 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49410 which rates the freight between FCL and LCL. 5325-00-027-0191 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5325-00-027-0191 is not classified as a special type of cargo when transported by water. 5325-00-027-0191 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5325-00-027-0191
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5325-00-027-0191 August 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
