5320-01-503-8136
Blind Rivet
5320015038136 015038136 NAS1398C5AB2 CR4623-5-2 AF4623-5-2
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
November 2023
11
Marketplace 5320-01-503-8136
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-503-8136 1+ Documents (More...)

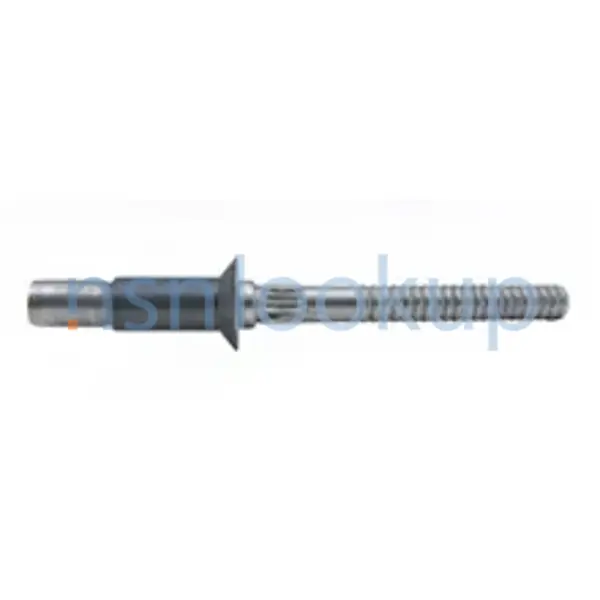

Photo 1/3 NSN 5320-01-503-8136 (Identification) 2/3 NSN 5320-01-503-8136 (Identification) 3/3 -
CR4623-5-2 RIVET,BLIND 112 EA NS Request Quotation Updated Every Day 5320-01-503-8136 RQST NE Updated
Restrictions 5320-01-503-8136
5320-01-503-8136 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-503-8136
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-503-8136
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Australia (ZA01)
- Effective Date:
- 1 Aug 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 2007
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2008
- United Kingdom (ZK01)
- Effective Date:
- 1 Jun 2013
Approved Sources 5320-01-503-8136
- Part Number
- Manufacturer
- Status
- NAS1398C5AB2
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- CR4623-5-2
- C7839 - Wilde, Roswitha Trading (Active)
- Secondary Buy
- Secondary Buy
- CR4623-5-2
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- AF4623-5-2
- 53551 - Allfast Fastening Systems, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR4623-5-2
- D0606 - Edgar Hausmann Gmbh (Active)
- Secondary Buy
- Secondary Buy
- CR4623-5-2
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5320-01-503-8136
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.263 Inches Maximum
- Grip Length [ANEE]
- 0.063 Inches Minimum And 0.125 Inches Maximum
- Head Height [AASU]
- 0.067 Inches Minimum And 0.077 Inches Maximum
- Head Major Diameter [AAZG]
- 0.296 Inches Minimum And 0.328 Inches Maximum
- Head Style [AASK]
- Universal
- Material Document And Classification [MDCL]
- Qq-N-281 Fed Spec Single Material Response Locking Ring
- Material [MATT]
- Nickel Alloy 400 Locking Ring
- Material [MATT]
- Iron Alloy 660 Sleeve
- Material [MATT]
- Iron Alloy 660 Stem
- Material Document And Classification [MDCL]
- Ams 5731 Assn Std Single Material Response Stem
- Material Document And Classification [MDCL]
- Ams5731 Assn Std Single Material Response Sleeve Or Ams 5732 Assn Std Single Material Response Sleeve Or Ams 5737 Assn Std Single Material Response Sleeve
- Shank Diameter [AAZE]
- 0.155 Inches Minimum And 0.159 Inches Maximum
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
- Specification/Standard Data [ZZZK]
- 80205-Nas1398 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Sleeve
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Stem
- Surface Treatment [SFTT]
- Passivate Sleeve
- Surface Treatment [SFTT]
- Passivate Stem
Weapon Systems (WSDC) 5320-01-503-8136
DLA Procurement Analysis 5320-01-503-8136
- Last Stock Position:
- 17462 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-01-503-8136
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5320-01-503-8136
Freight Information 5320-01-503-8136
5320-01-503-8136 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 096320. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S NICKEL PLATED BUFFED. 5320-01-503-8136 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50430 which rates the freight between FCL and LCL. 5320-01-503-8136 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-503-8136 is not classified as a special type of cargo when transported by water. 5320-01-503-8136 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
