5320-01-480-1646

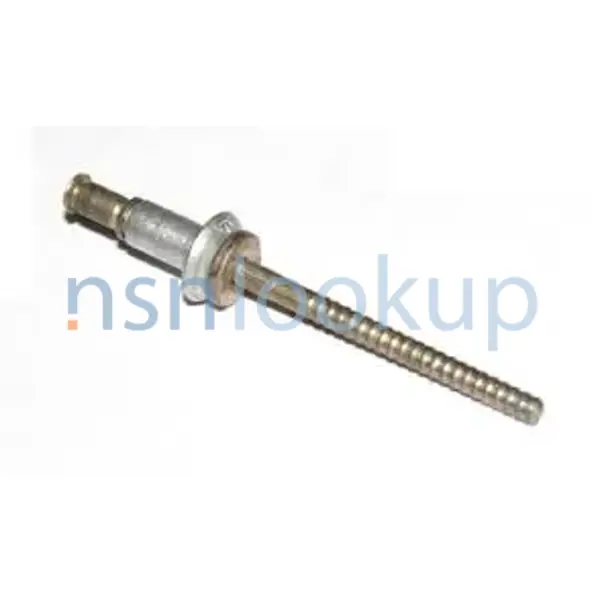

Blind Rivet
5320014801646 014801646 ASNA0078E401 CR3523-4-1 NAS9307M-4-01 MBBN3012M3201 CR3523-4-01 M7885/4-4-01 MIL-R-7885 MIL-R-7885/4
An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY. View more Blind Rivet
Managed by United States
NSN Created on 8 Nov 2000
Data Last Changed
November 2023
November 2023
NATO Update Count
33
33
NATO Data Quality
Marketplace 5320-01-480-1646
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5320-01-480-1646 5+ Documents (More...)
ASNA0078E401 CR3523-4-1 NAS9307M-4-01 MBBN3012M3201 CR3523-4-01 M7885/4-4-01 MIL-R-7885 MIL-R-7885/4
CR3523-4-01 RIVET,BLIND 99 EA NS Request Quotation CR3523-4-1 RIVET,BLIND 99 EA NS Request Quotation
CR3523-4-01 RIVET,BLIND 14 EA NS Request Quotation Updated Every Day 5320-01-480-1646 RQST NE Updated
CR3523-4-01 RIVET,BLIND 99 EA NS Request Quotation CR3523-4-1 RIVET,BLIND 99 EA NS Request Quotation
CR3523-4-01 RIVET,BLIND 14 EA NS Request Quotation Updated Every Day 5320-01-480-1646 RQST NE Updated
Upgrade for $1 a day Upgrade your Account Upgrade 5320-01-144-1684Blind Rivet5320011441684 011441684 MIL-R-7885
https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-144-1684 Blind Rivet 5320011441684011441684 MIL-R-7885
Blind Rivet 5320014801646 014801646, 014801646 ASNA0078E401 CR3523-4-1 NAS9307M-4-01 MBBN3012M3201
https//www.nsnlookup.com /fsg-53/fsc-5320/us 5320-01-144-1684 Blind Rivet 5320011441684011441684 MIL-R-7885
Blind Rivet 5320014801646 014801646, 014801646 ASNA0078E401 CR3523-4-1 NAS9307M-4-01 MBBN3012M3201
CR3523-4-1 RIVET,BLIND 34 EA NS Request Quotation Subscribe to View Vendor Details...
CR3523-4-1 RIVET,BLIND 99 EA NS Request Quotation CR3523-4-01 RIVET,BLIND 99 EA NS Request Quotation
CR3523-4-1 RIVET,BLIND 1 EA NS Request Quotation Subscribe to View Vendor Details...
CR3523-4-1 RIVET,BLIND 99 EA NS Request Quotation CR3523-4-01 RIVET,BLIND 99 EA NS Request Quotation
CR3523-4-1 RIVET,BLIND 1 EA NS Request Quotation Subscribe to View Vendor Details...
7313Blind Rivet5320013737313 013737313 NAS9307M-6-07 CR3523-6-7 AF3523-6-07 CR3523-6-07 M7885/4-6-07 MIL-R-7885
Management CR3523-6-7 Blind Rivet 5320013737313013737313 Canceled/Obsolete RNCC 5 RNVC 9 DAC 4 MIL-R-7885
Upgrade 5320-01-152-8684Blind Rivet5320011528684 011528684 NAS9307M-6-05 AF3523-6-05 CR3523-6-05 MIL-R-7885
Management CR3523-6-7 Blind Rivet 5320013737313013737313 Canceled/Obsolete RNCC 5 RNVC 9 DAC 4 MIL-R-7885
Upgrade 5320-01-152-8684Blind Rivet5320011528684 011528684 NAS9307M-6-05 AF3523-6-05 CR3523-6-05 MIL-R-7885
Rivet5320011976642 011976642 AF3523-6-06 M7855-4-6-6 NAS9307M6-06 CR3523-6-06 AF3523-6-6 M7885/4-6-06 MIL-R-7885
7313Blind Rivet5320013737313 013737313 NAS9307M-6-07 CR3523-6-7 AF3523-6-07 CR3523-6-07 M7885/4-6-07 MIL-R-7885
Blind Rivet 5320014801646 014801646, 014801646 ASNA0078E401 CR3523-4-1 NAS9307M-4-01 MBBN3012M3201
7313Blind Rivet5320013737313 013737313 NAS9307M-6-07 CR3523-6-7 AF3523-6-07 CR3523-6-07 M7885/4-6-07 MIL-R-7885
Blind Rivet 5320014801646 014801646, 014801646 ASNA0078E401 CR3523-4-1 NAS9307M-4-01 MBBN3012M3201
Restrictions 5320-01-480-1646
5320-01-480-1646 is a Blind Rivet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5320-01-480-1646
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5320-01-480-1646
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- Supplementary Receivers:
- XH
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Austria (WB01)
- Effective Date:
- 1 Jun 2005
- Slovenia (WL01)
- Effective Date:
- 1 Aug 2012
- Poland (WP01)
- Effective Date:
- 1 Oct 2007
- Brazil (YA01)
- Effective Date:
- 1 Oct 2004
- Spain (YB01)
- Effective Date:
- 1 Oct 2004
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ01)
- Effective Date:
- 1 Oct 2004
- Australia (ZA01)
- Effective Date:
- 1 Oct 2008
- Belgium (ZB01)
- Effective Date:
- 1 Feb 2007
- Canada (ZC01)
- Effective Date:
- 1 Oct 2004
- New Zealand (ZE01)
- Effective Date:
- 1 Oct 2004
- France (ZF01)
- Effective Date:
- 1 Oct 2004
- Germany (ZG01)
- Effective Date:
- 1 Aug 2003
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2007
- United Kingdom (ZK01)
- Effective Date:
- 1 Oct 2004
- Netherlands (ZN01)
- Effective Date:
- 1 Oct 2004
- Portugal (ZP01)
- Effective Date:
- 1 Apr 2008
- Italy (ZR01)
- Effective Date:
- 1 Nov 2000
- Denmark (ZS01)
- Effective Date:
- 1 Oct 2004
- Norway (ZT01)
- Effective Date:
- 1 Oct 2004
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5320-01-480-1646
- Part Number
- Manufacturer
- Status
- NAS9307M-4-01
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- MBBN3012M3201
- C0418 - Airbus Helicopters Deutschland Gmbh (Active)
- Secondary Buy
- Secondary Buy
- CR3523-4-01
- 11815 - Sps Technologies, Llc (Active)
- Secondary Buy
- Secondary Buy
- CR3523-4-1
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- M7885/4-4-01
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-R-7885
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- ASNA0078E401
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- CR3523-4-1
- F7652 - Klx Aerospace Solutions Ii Sas (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-R-7885/4
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- ASNA0078E401
- FB009 - Boeing Distribution Services Inc (Active)
- Advisory Reference
- Advisory Reference
- CR3523-4-1
- FB009 - Boeing Distribution Services Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5320-01-480-1646
- Characteristic
- Specifications
- FIIG
- Specifications
- A040A0
- Expansion Device [ABAF]
- Serrated Stem-Type W
- Fastener Length [AASB]
- 0.161 Inches Nominal
- Grip Length [ANEE]
- 0.025 Inches Minimum And 0.062 Inches Maximum
- Head Height [AASU]
- 0.054 Inches Minimum And 0.064 Inches Maximum
- Head Major Diameter [AAZG]
- 0.240 Inches Minimum And 0.260 Inches Maximum
- Head Style [AASK]
- Universal
- Material Document And Classification [MDCL]
- Qq-N-281 Fed Spec Single Material Response Sleeve
- Material [MATT]
- Nickel Alloy R-405 Sleeve
- Material [MATT]
- Iron Alloy 660 Mechanical Lock
- Material [MATT]
- Steel Comp 632 Or Iron Alloy 660 Stem
- Material Document And Classification [MDCL]
- Ams 5731 Assn Std Single Material Response Mechanical Lock
- Material Document And Classification [MDCL]
- Ams 5657 Assn Std 1St Material Response Or Ams 5737 Assn Std 2Nd Material Response Stem
- Shank Diameter [AAZE]
- 0.125 Inches Minimum And 0.129 Inches Maximum
- Shank Style [AAZF]
- Self-Plugging Mechanically Locked Stem
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Stem
- Surface Treatment [SFTT]
- Passivate Stem
Weapon Systems (WSDC) 5320-01-480-1646
DLA Procurement Analysis 5320-01-480-1646
- Last Stock Position:
- 7026 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5320-01-480-1646
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5320-01-480-1646
5320-12-379-7694 5320-12-375-6211 5320-34-036-5105 5320-99-737-6610 5320-99-737-6565 5320-99-738-0091 5320-99-737-6557 5320-21-077-0736 5320-99-737-6570 5320-12-351-6287 5320-99-737-7669 5320-99-741-1587 5320-99-471-4420 5320-12-303-0732 5320-99-737-6614 5320-17-706-8543 5320-99-737-7668 5320-12-353-7851
Freight Information 5320-01-480-1646
5320-01-480-1646 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096320. A Sub NMFC of X. It has a NMFC Description of RIVETS I/S NICKEL PLATED BUFFED. 5320-01-480-1646 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50430 which rates the freight between FCL and LCL. 5320-01-480-1646 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5320-01-480-1646 is not classified as a special type of cargo when transported by water. 5320-01-480-1646 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5320-01-480-1646
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5320-01-480-1646 4 Records
Contracting Technical Data File (CTDF) 5320-01-480-1646 August 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
